Manual

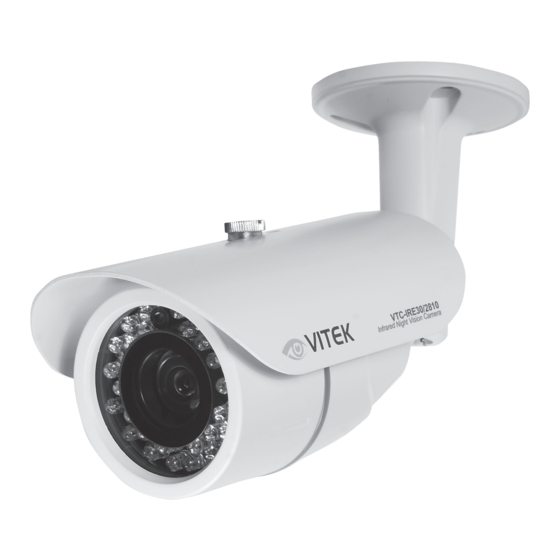

VTC-IRE30/2810
Day/Night IR Bullet Camera
with 100' Range
• High Density 1/3" Sony EX-VIEW CCD & Effio-E DSP
• 700 TV Lines of Resolution
• Advanced IR Optimizer helps reduce over saturation of IR illuminated video without
engaging the Image Signal Processor chip
• E-WDR by Adaptive Tone Reproduction
• 30 850nm Infrared LEDs with up to 100' Range
• 0.003 Lux (F1.2 @ 40IRE) / 0 Lux with IR LEDs On
• IR Corrected 2.8-10mm Varifocal DC Auto Iris IR Lens
• 2DNR Noise Reduction
• Motion Detection, Privacy Masking & Highlight Masking
• OSD (On Screen Display) menu and Camera ID
• IP-66 Rated Water Resistance
• Heavy Duty Mount with Cable Feed Through
• 24VAC/12VDC Dual Voltage
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-IRE30
Summary of Contents for Vitek VTC-IRE30

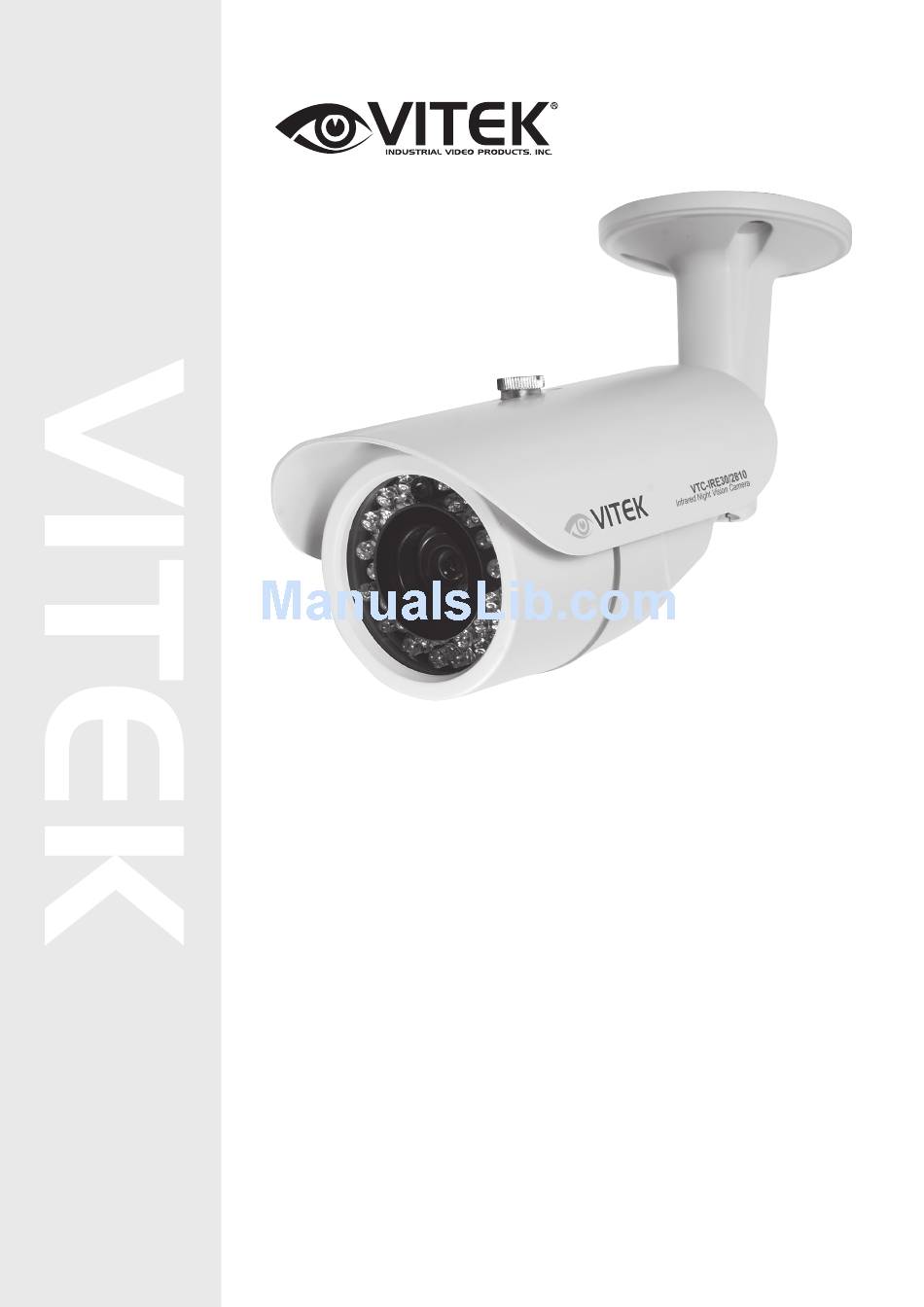

- Page 1 VTC-IRE30/2810 Day/Night IR Bullet Camera with 100’ Range • High Density 1/3” Sony EX-VIEW CCD & Effio-E DSP • 700 TV Lines of Resolution • Advanced IR Optimizer helps reduce over saturation of IR illuminated video without engaging the Image Signal Processor chip •...
- Page 2 VTC-IRE30/2810 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.
-
Page 3: Table Of Contents
VTC-‐IRE30/2810 Table of contents 1. Safety Instructions and Notes…....................... 2. General Descriptions................……………………………... 3. Supplied Items..................……………………………... 4. Part names…………………………….…...........…………………………... 5. Installation Instructions..................……………………... 6. Setup Menu ……………................…………………………... 7. Specifications ………………………………………………..............8. -
Page 4: Safety Instructions And Notes
VTC-IRE30/2810 1. Safety Instructions and Notes • Please read these safety and operating instructions before putting the camera into operation. • Keep the manual in a safe place for later reference. • Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks, damage or moisture. -
Page 5: Supplied Items
VTC-‐IRE30/2810 3. Supplied Items ① 1 x Weatherproof D & N Bullet Camera ② ② 3 x Mounting screws ③ ③ 3 x anchors ④ ④ 1 x 2.5mm L-Wrench ⑤... -
Page 6: Installation Instructions
VTC-IRE30/2810 5. Installation Instructions • Make sure the power is not applied before the installation. • Once the camera is installed, you may first connect the low voltage (AC24V or DC12V) wire to the camera power connector, then plug the AC adapter to the AC outlets to avoid an improper reset from power jitter and possible damage from voltage surge. - Page 7 VTC-‐IRE30/2810 5.2 Setup of ZOOM and FOCUS • Adjust zoom and focus in order. 1) Open ⓓFront cover for adjustment. 2) Place the separated ⓓFront cover on the safe place from water & dust. 3) Turn ⓞZoom knob counter clockwise a little to unlock the knob.
-
Page 8: Setup Menu
If shades by the sunshield are seen on the image, reverse the sunshield direction backside to front. 5.4 Power connector The VTC-IRE30/2810 can operate on either 24AC or 12VDC, dual voltage power. Polarity free connection is acceptable, but follow the indication if possible. 6. SETUP Menu 6.1 In the menu... - Page 9 VTC-‐IRE30/2810 6.2 MAIN menu Follow the chart below for submenu settings. MAIN Menu-1 MAIN Menu-2 6.2.1 MAIN menu-1 MAIN menu-1 Default Descriptions SHUTTER Sets the parameters related to the shutter mode and AGC for AUTO and AUTO /AGC MANUAL settings.
- Page 10 VTC-IRE30/2810 6.2.1 MAIN menu-2 MAIN menu-2 Default Descriptions Sets the noise reduction parameters for NR MODE and Y LEVEL, C LEVEL. See '6.10 NR menu' for details. Sets ON/OFF for enabling/disabling MOTION DET. MOTION DET See '6.11 MOTION DET menu' for the parameter settings.
- Page 11 VTC-‐IRE30/2810 6.3.1 SHUTTER/AGC>AUTO SETUP menu AUTO SETUP Default Descriptions Sets the shutter mode from AUTO IRIS or SHUT+AUTO IRIS when in MAIN>LENS>AUTO menu, but it is fixed to SHUT if in the MAIN>LENS>MANUAL menu.
- Page 12 VTC-IRE30/2810 6.3.2 SHUTTER/AGC>MANUAL SETUP menu MANUAL Default Descriptions SETUP SHUT MODE Compensates the video level by the manual shutter control and AGC. +AGC Sets the manual shutter to 1/60(1/50), 1/100(1/120), 1/250,1/500,1/1000, 1/60 SHUTTER 1/2000,1/4000 or 1/10000. (1/50) Manual shutter is only useful for scenes where luminance is unchanged.
- Page 13 VTC-‐IRE30/2810 6.5 DAY/NIGHT menu To enter DAY/NIGHT menu, press button at MAIN menu-1>DAY/NIGHT... IMPORTANT ACTIVITY!!! D AY->NIGH T and NIGH T->DA Y oper ations m us t be ex am ined and v er ified at the final installation.
- Page 14 VTC-IRE30/2810 6.6 PICT ADJUST menu To enter PICT ADJUST menu, press ● button at MAIN menu-1>PICT ADJUST. PICT ADJUST Default Descriptions MIRROR Picture will be flipped horizontally if it turns ON. Increases or decreases the brightness of the picture. This is different from that of DC iris lens and simply increases or decreases BRIGHTNESS the digital gain of the video.
- Page 15 VTC-‐IRE30/2810 To enter ATW (MANUAL) menu, press ● button at MAIN menu-1>WHITE BAL>ATW(MANUAL). Default Descriptions Sets the AWB compensating speed. Lower value makes AWB faster. SPEED C AUTIO N If AWB is too fast, it may produce color oscillation.
- Page 16 VTC-IRE30/2810 To enter ATR menu, press ● button at MAIN menu-1>ATR. Default Descriptions Compresses the highlight area and enhances the dark area so that the entire image can converge toward the medium level. LUMINANCE LOW will compensate minimally and HIGH will be level out the image more.
- Page 17 VTC-‐IRE30/2810 6.10 NR menu To enter NR menu, press ● button at MAIN menu-2>NR. Default Descriptions NR MODE Selects OFF, Y, C or Y/C, which noise reduction is performed with. Indicates the noise reduction strength for the luminance signal.
- Page 18 VTC-IRE30/2810 MOTION DET Default Descriptions DETECT Adjusts the sensitivity for detecting motion. Higher value is more sensitive. SENSE BLOCK DISP Enables or disables display blocks for the area where motion is detected. MONITOR Displays four motion windows as programmed in sizes and positions.
- Page 19 VTC-‐IRE30/2810 6.13 LANGUAGE menu ENGLISH, JAPANESE, DEUTCH, FRANCAIS, RUSSIAN, PORTUGUES and ESPANOL 6.14 CAMERA ID menu Up to 40 characters can be input for camera ID. To enter CAMERA ID menu, press ●...
-
Page 20: Specifications
VTC-IRE30/2810 7. Specifications VTC-IRE30/2810 Image Device 1/3” High Density Sony EX-VIEW CCD & Effio-E DSP (960H) Resolution 700 TV lines Minimum illumination 0.003Lux / F1.2 (0 Lux with IR LEDs ON) Effective Pixels 976(H) x 494(V) S/N Ratio More than 52dB with AGC OFF at 50IRE Electronic Iris 1/60 to 1/100,000 sec. -
Page 21: Dimensional Drawings
VTC-‐IRE30/2810 8. Dimensional Drawings... -
Page 22: Application Software
Mac OSX Client & CMS Central Management Software Included the EH family, the EHL is completely • Automatic sending of Health & Event notifications via email compatible with all VITEK EH Platform • Control locally via Front Panel, USB Mouse or with the Included IR Remote control •... - Page 23 • HDMI, VGA, and Dual Looping BNC Composite Video Inputs & Stereo Audio Input Vitek Professional Grade LED Monitors are designed for • Resolution up to 1920 x 1080 (1080P) (22” & 24”) constant use in a surveillance application. They combine sharp brilliant colors along with easy to use OSD functions •...
- Page 24 VOID in the event of alteration, defacement, or removal of serial numbers. Within the first 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.
- Page 25 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70 VeRsion 2 09/2012...
