User Manual

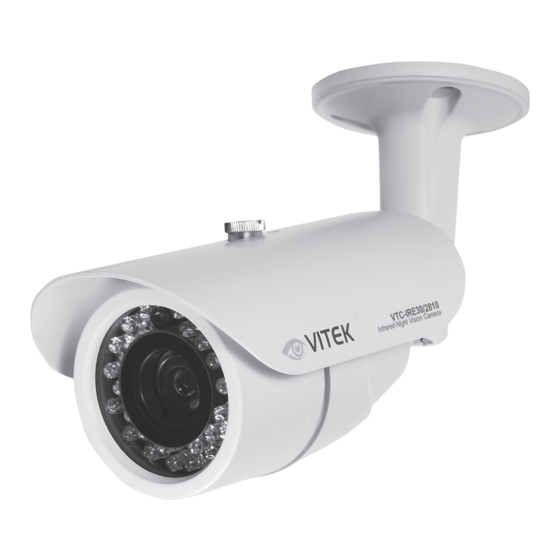

VTC-IRE30/2810
Day/Night IR Bullet Camera
with 100' Range
• High Density 1/3" Sony EX-VIEW CCD & Effio-E DSP
• 700 TV Lines of Resolution
• Advanced IR Optimizer helps reduce over saturation of IR illuminated video without
engaging the Image Signal Processor chip
• E-WDR by Adaptive Tone Reproduction
• 30 850nm Infrared LEDs with up to 100' Range
• 0.003 Lux (F1.2 @ 40IRE) / 0 Lux with IR LEDs On
• IR Corrected 2.8-10mm Varifocal DC Auto Iris IR Lens
• 2DNR Noise Reduction
• Motion Detection, Privacy Masking & Highlight Masking
• OSD (On Screen Display) menu and Camera ID
• IP-66 Rated Water Resistance
• Heavy Duty Mount with Cable Feed Through
• 24VAC/12VDC Dual Voltage
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-IRE30
Summary of Contents for Vitek VTC-IRE30

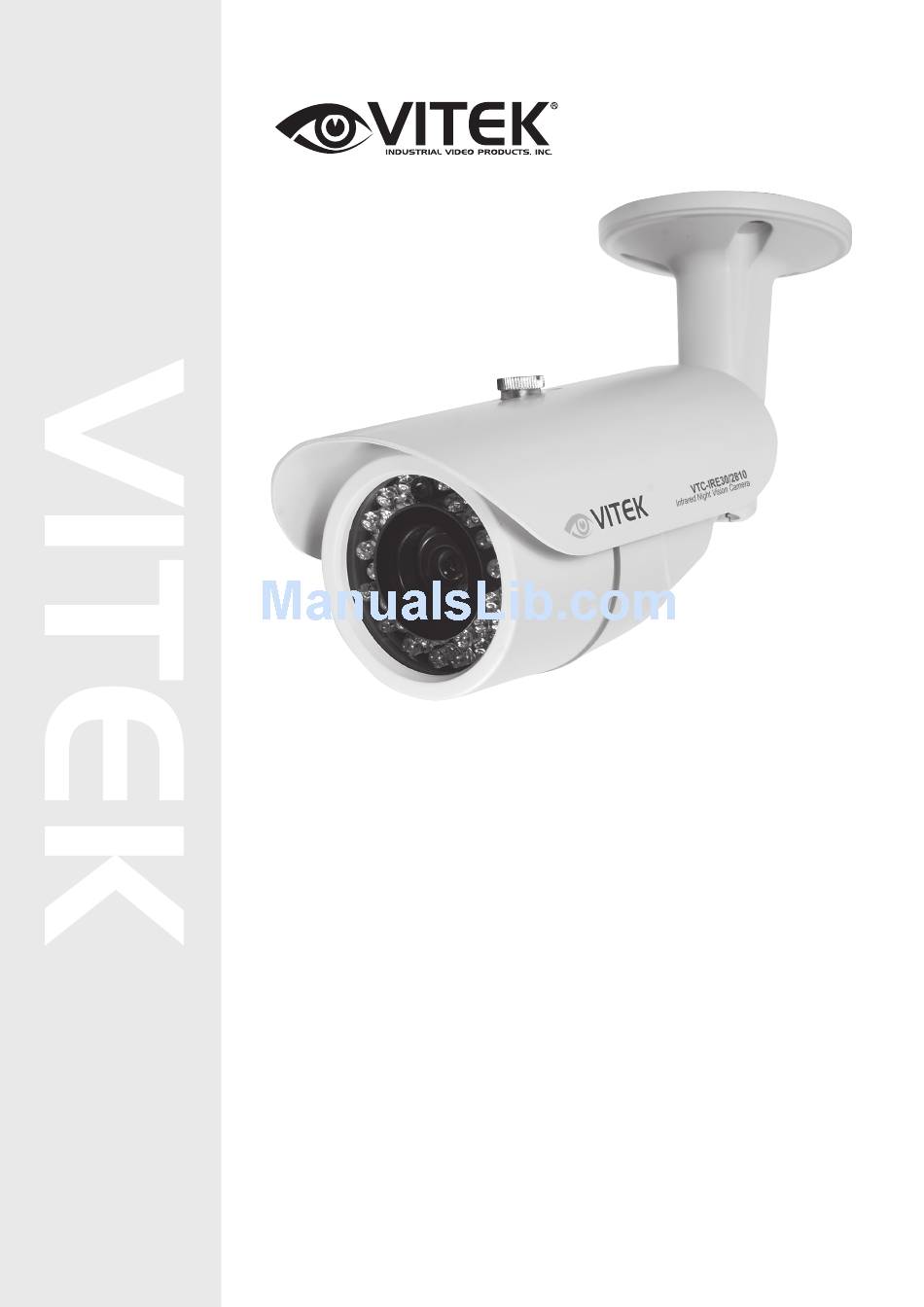

- Page 1 VTC-IRE30/2810 Day/Night IR Bullet Camera with 100’ Range • High Density 1/3” Sony EX-VIEW CCD & Effio-E DSP • 700 TV Lines of Resolution • Advanced IR Optimizer helps reduce over saturation of IR illuminated video without engaging the Image Signal Processor chip •...
- Page 2 To prevent fire or shock hazard, do not expose the unit to rain or moisture. WARNING This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...
-
Page 3: Safety Instructions And Notes
1. Safety Instructions and Notes • Please read these safety and operating instructions before putting the camera into operation. • Keep the manual in a safe place for later reference. • Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks, damage or moisture. -
Page 4: Supplied Items
3. Supplied Items ① 1 x Weatherproof D & N Bullet Camera ② ② 3 x Mounting screws ③ ③ 3 x anchors ④ ④ 1 x 2.5mm L-Wrench ⑤ 1 x Installation and Operating Instructions 4. Part names 4.1 External (Below model is only used for understanding. Color or Design can be different.) ⓐ... -
Page 5: Installation Instructions
5. Installation Instructions • Make sure the power is not applied before the installation. • Once the camera is installed, you may first connect the low voltage (AC24V or DC12V) wire to the camera power connector, then plug the AC adapter to the AC outlets to avoid an improper reset from power jitter and possible damage from voltage surge. - Page 6 5.2 Setup of ZOOM and FOCUS • Adjust zoom and focus in order. 1) Open ⓓFront cover for adjustment. 2) Place the separated ⓓFront cover on the safe place from water & dust. 3) Turn ⓞZoom knob counter clockwise a little to unlock the knob. 4) Move ⓞZoom knob to fit the zoom.
-
Page 7: Setup Menu
If shades by the sunshield are seen on the image, reverse the sunshield direction backside to front. 5.4 Power connector The VTC-IRE30/2810 can operate on either 24AC or 12VDC, dual voltage power. Polarity free connection is acceptable, but follow the indication if possible. 6. SETUP Menu 6.1 In the menu... -
Page 8: Pict Adjust
6.2 MAIN menu Follow the chart below for submenu settings. MAIN Menu-1 MAIN Menu-2 6.2.1 MAIN menu-1 MAIN menu-1 Default Descriptions SHUTTER Sets the parameters related to the shutter mode and AGC for AUTO and AUTO /AGC MANUAL settings. See '6.3 SHUTTER/AGC menu' for details. Selects the lens type, AUTO or MANUAL. - Page 9 6.2.1 MAIN menu-2 MAIN menu-2 Default Descriptions Sets the noise reduction parameters for NR MODE and Y LEVEL, C LEVEL. See '6.10 NR menu' for details. Sets ON/OFF for enabling/disabling MOTION DET. MOTION DET See '6.11 MOTION DET menu' for the parameter settings. Sets ON/OFF for enabling/disabling PRIVACY.
-
Page 10: Auto Setup
6.3.1 SHUTTER/AGC>AUTO SETUP menu AUTO SETUP Default Descriptions Sets the shutter mode from AUTO IRIS or SHUT+AUTO IRIS when in MAIN>LENS>AUTO menu, but it is fixed to SHUT if in the MAIN>LENS>MANUAL menu. AU TO IR IS - Light level is controlled by an auto iris lens only. For proper auto iris operation, the auto iris operation mode in MAIN>... - Page 11 6.3.2 SHUTTER/AGC>MANUAL SETUP menu MANUAL Default Descriptions SETUP SHUT MODE Compensates the video level by the manual shutter control and AGC. +AGC Sets the manual shutter to 1/60(1/50), 1/100(1/120), 1/250,1/500,1/1000, 1/60 SHUTTER 1/2000,1/4000 or 1/10000. (1/50) Manual shutter is only useful for scenes where luminance is unchanged. Sets AGC gain in dB.
- Page 12 6.5 DAY/NIGHT menu To enter DAY/NIGHT menu, press ● button at MAIN menu-1>DAY/NIGHT. DAY/NIGHT Default Descriptions IR OPTIMIZER feature can reduce the over-saturation in video caused by the narrow emitting IR LEDs OPTIMIZER O FF – Disables IR OPTMIZER. O N – Enables IR OPTIMIZER. There are two modes available by how to manage IR OPTIMIZER.
- Page 13 PICT ADJUST Default Descriptions MIRROR Picture will be flipped horizontally if it turns ON. Increases or decreases the brightness of the picture. This is different from that of DC iris lens and simply increases or decreases BRIGHTNESS the digital gain of the video. Do not increase this too much, the dynamic range for the highlight area will decrease.
- Page 14 Default Descriptions Sets the AWB compensating speed. Lower value makes AWB faster. SPEED C AUTIO N If AWB is too fast, it may produce color oscillation. Adjusts the AWB compensation period to next update of AWB. DELAY CNT The smaller value will update AWB more frequently. Determines the ATW range with respect to the fundamental range.
-
Page 15: Backlight Menu
6.9 BACKLIGHT menu To enter BACKLIGHT menu, press ● button in MAIN menu-1>BACKLIGHT. The Backlight Compensation – BLC – function is used to brighten an image in the foreground with a highly lit area behind it such as sunlight, limiting the affect of silhouetting. BLC ON BLC OFF The Highlight Compensation –... - Page 16 Default Descriptions NR MODE Selects OFF, Y, C or Y/C, which noise reduction is performed with. Indicates the noise reduction strength for the luminance signal. A higher value performs a stronger noise reduction, which makes the Y LEVEL image less sharp. Due to the limitation of 2D NR, noise reduction may not be effective enough.
- Page 17 6.12 PRIVACY menu Up to 8 privacy areas are available and each area is programmable in size and location. The number of privacy areas is limited to four when MOTION DET>MONITOR AREA is ON. The privacy areas are masked with the color selected by PRIVACY>COLOR. To enter PRIVACY menu, press ●...
-
Page 18: Command Line
6.14 CAMERA ID menu Up to 40 characters can be input for camera ID. To enter CAMERA ID menu, press ● button at MAIN menu-2>CAMERA ID. CAMERA ID input line COMMAND LINE Use ▲,▼,◀,▶ buttons to move a block cursor over the character table and press ● button to input the selected character. -
Page 19: Specifications
7. Specifications VTC-IRE30/2810 Image Device 1/3” High Density Sony EX-VIEW CCD & Effio-E DSP (960H) Resolution 700 TV lines Minimum illumination 0.003Lux / F1.2 (0 Lux with IR LEDs ON) Effective Pixels 976(H) x 494(V) S/N Ratio More than 52dB with AGC OFF at 50IRE Electronic Iris 1/60 to 1/100,000 sec. -
Page 20: Dimensional Drawings
8. Dimensional Drawings... -
Page 21: Digital Video Recorders
Mac OSX Client & CMS Central Management Software Included the EH family, the EHL is completely • Automatic sending of Health & Event notifications via email compatible with all VITEK EH Platform • Control locally via Front Panel, USB Mouse or with the Included IR Remote control •... - Page 22 15”, 1 7” & 19” Professional LCD Monitors • Designed for continuous 24/7 operation Vitek Professional Grade LCD Monitors are designed for constant use • VGA, Looping BNC Composite, and S-Video Video in a surveillance application. They combine sharp brilliant colors along Inputs.
- Page 23 VOID in the event of alteration, defacement, or removal of serial numbers. Within the first 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.
- Page 24 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70...
