• 1/3" High density Sony® CCD (960H)
• High Resolution of 750 Horizontal Lines
• Sony Effio-A Digital Signal Processor
• Simple Installation with External Focus and Zoom control and one
turn mount positioning lock
• True Day/Night by ICR (Infrared Cut Removal)
• E-WDR by ATR-EX (Adaptive Tone Reproduction)
• 40 Infrared LEDs at 850nm enable viewing in total darkness up to
150 feet
• 0.003 Lux (Sens-up Off) / 0 Lux (IR-ON)
• 3.5-16mm Varifocal Auto Iris Lens with External Adjustments for
Focus and Zoom
• True Day/Night by ICR - Infrared Cut Removal
• XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction
• Built-in Motion Detection with a 24x16 Grid
• OSD (On Screen Display) menu and Camera ID
• Dual Glass Compartments to Eliminate Glare
• IP68 NEMA Rating
• Heavy Duty Mount with Cable Feed Through
• Secondary Video Output & OSD Control Joystick are accessible
inside a gasket sealed removable side panel
• 24VAC/12VDC Dual Voltage
VTC-IRA40/3516
750 TV Line Day/Night
IR Bullet Camera
w/150' Range (960H)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-IRA40/3516
Summary of Contents for Vitek VTC-IRA40/3516

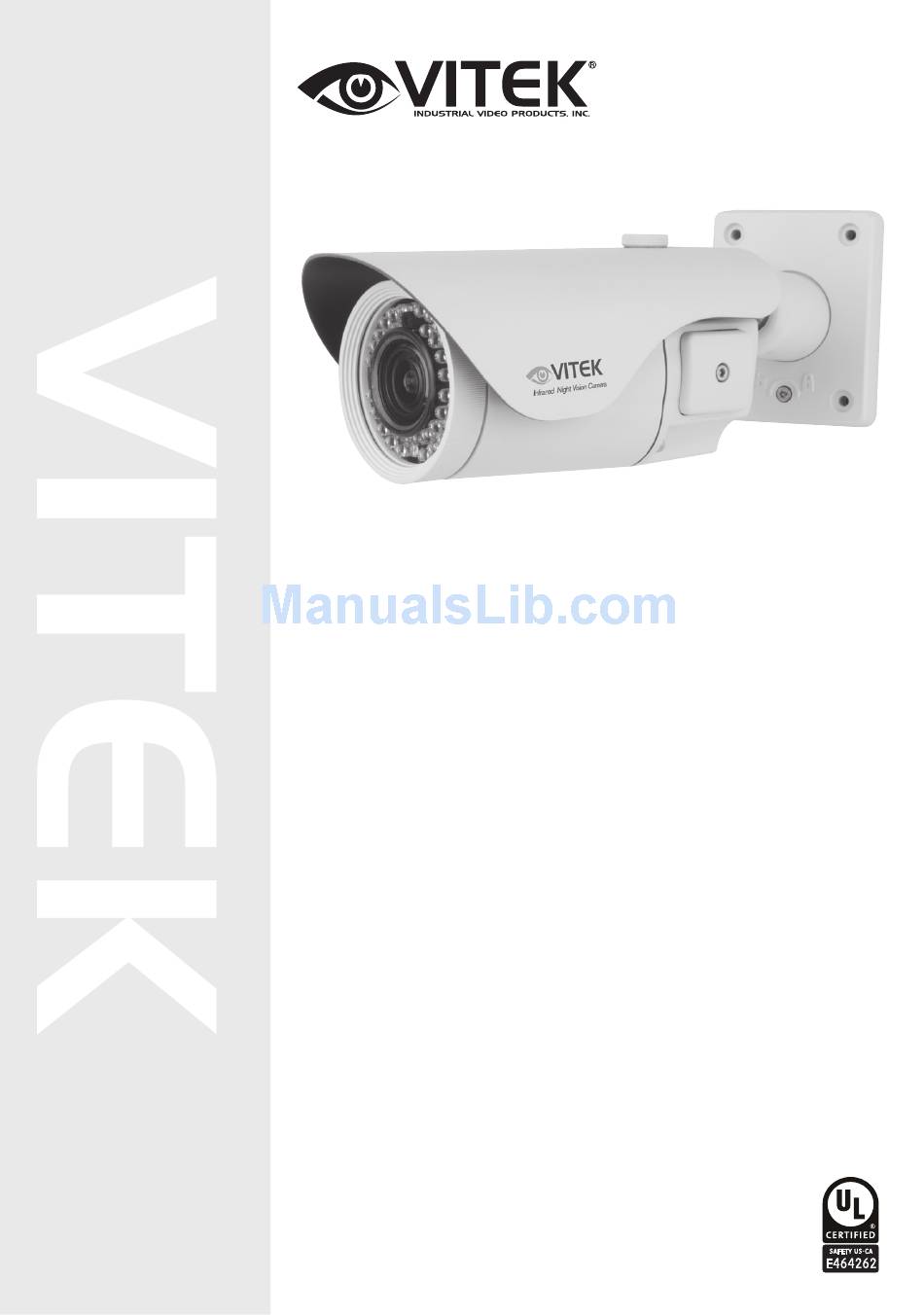

- Page 1 VTC-IRA40/3516 750 TV Line Day/Night IR Bullet Camera w/150’ Range (960H) • 1/3” High density Sony® CCD (960H) • High Resolution of 750 Horizontal Lines • Sony Effio-A Digital Signal Processor • Simple Installation with External Focus and Zoom control and one turn mount positioning lock •...
-
Page 2: Safety Precaution
ULTRA CLEAR RESOLUTION CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 3 ULTRA CLEAR RESOLUTION CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get Never open the device such as boards or lens.
-
Page 4: Table Of Contents
ULTRA CLEAR RESOLUTION CAMERA Contents p.02~03 Safety Precaution p.04 Contents p.05 Features p.05 Composition p.06 Dimensions p.07 Part Names p.08~10 Installation Instructions p.11~30 Operating Instructions p.31 Specifications... -
Page 5: Features
ULTRA CLEAR RESOLUTION CAMERA Features Key Features • 1/3” High density Sony CCD (960H) • 750TVL High-Resolution • D-WDR by ATR-EX • TDN with Dual Filter Switcher • 3.5~16mm F1.2 DC Auto Iris Vari-focal Lens • XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction •... -
Page 6: Composition
ULTRA CLEAR RESOLUTION CAMERA Composition Plastic Anchor: 6 x 30mm (4pcs) Mounting Screw: 4 x 30mm (4pcs) Camera Assembly Screw: 4 x 14mm (4pcs) Mounting Template Torque Wrench: 3mm (1pc) Video Sub-out: Cable (1pc) Operating Wiring Connector: Cable Signal Easy (1pc) Instruction Sticker... -
Page 7: Part Names
ULTRA CLEAR RESOLUTION CAMERA Part Names SUNSHIELD BOLT POWER CABLE SUNSHIELD DUAL WINDOW EASY BRACKET BRACKET FRONT CASE REAR CASE OSD Setup CONTROL COVER CAUTION • Extreme care should be taken NOT to scratch the window in front of lens. •... -
Page 8: Installation Instructions
ULTRA CLEAR RESOLUTION CAMERA Installation Instructions 1. Place the mounting template at the installation position and drill the ceiling or wall if needed. ( *The easy bracket can not be installed on the ceiling) 2. Place the easy bracket on pre-drilled position and attach using the mounting screws(4x30mm). - Page 9 ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket through using the torque wrench supplied • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°.
-
Page 10: Installation And Commissioning Instructions
ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Zoom & Focus adjustments Use the torque wrench supplied. • Turn the Focus gear to “N”(Near) or “∞”(Far) until the sharpest focus is made. • To widen the viewing angle, turn the Zoom to “W”(Wide) and to obtain a closer view, turn it to “T”(Tele) Installation and commissioning Instructions... -
Page 11: Operating Instructions
ULTRA CLEAR RESOLUTION CAMERA Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. SUB-OUT Cover Open OSD Control... - Page 12 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • : Selects previous page or next page. • EXIT : Enters ‘EXIT’ menu. • RETURN : Returns to the previous menu. SETUP MENU SETUP MENU 1 / 2...
- Page 13 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions ATR-EX SCENE SELECT LEVEL AUTO DAY/NIGHT BURST CNTL SIGNAL EXT1 DELAY CNT DAY->NIGHT NIGHT->DAY NIGHT BURST IR OPTIMIZER MODE AUTO IR AREA LEVEL IR LED DAY/NIGHT / OFF/ FIX COLOR NIGHT OFF / ON IR SHADE COMP OFF / ON OFF (default)
- Page 14 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions POSITION PRIVACY MASK COLOR TRANSP MOSAIC OFF (default) MOTION DET DETECT SENSE INTERVAL BLOCK DISP MASK AREA MONITOR AREA AREA SEL AREA MODE BOTTOM LEFT RIGHT TYPE LENS AUTO SYS SETTING MODE AUTO ADJUST SPEED FLIP OFF / V / H / HV...
-
Page 15: Osd Menu Setup
ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Setup Press the OSD menu SET key down to access the setup menu mode. SETUP MENU ADVANCED MENU 1 / 2 1 / 2 SCENE SELECT FULL AUTO AUTO SHUTTER/AGC PICT ADJUST WHITE BAL EZOOM HLC/BLC... - Page 16 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-1-2. MANUAL: Video level is manually controlled by the settings of SHUTTER, AGC MAX. In this mode, ‘DC Auto Iris Lens’ is only available. 1-1-3. FIX: Video level is fixed in any conditions by the setting of SHUTTER, AGC MAX. 1-2.
- Page 17 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions • ENVIRONMENT (default: INDOOR): Selects INDOOR, SUNNY, SHADE or AUTO Their ATW is optimized for the limited application and can not cover > INDOOR : Optimized for Indoor installation and more easily compensates ATW for low color temperature such as incandescent lights.
- Page 18 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-3-2. HLC: HLC clips out the highlight area and masks it as black color. Video will be clipped out and masked for the area which exceeds CLIP LEVEL. • CLIP LEVEL (default: 010): Defines the threshold level for HLC. Lower value masks more. 1-3-3.
- Page 19 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions • BURST (default: OFF) BURST determines whether a color burst signal keeps output or eliminated when camera switches to B/W. If set to ON, B/W video signal contains color burst signal and is compatible with the color equipment but shows the same resolution as color video.
- Page 20 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions IMPORTANT ACTIVITY DAY->NIGHT and NIGHT->DAY operations must be examined and verified at the final installation. Block the lens for a few seconds for NIGHT mode and release and let it return to DAY mode. If camera stays at NIGHT mode more than 10sec, decrease NIGHT->DAY THRES a little and repeat the fore-mentioned steps.
- Page 21 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-7-1. MODE : AUTO Reducing the over-saturation is automatically adjusted along with the location of the subject. 1-7-2. IR AREA : Sets the IR OPTIMIZER AREA and the function works selected area in ‘CUSTOM preset only. 1-7-3.
- Page 22 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-8. LENS SHD COMP (default: OFF) This function is used to caculate the compensation data for lens shading. Convex shape of the lens causes the light to enter the camera unevenly and typically makes the center of the screen brighter than the rest. It is used to compensate for this undesirable effect and make the screen more even.
- Page 23 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 2. PICT ADJUST PICT ADJUST BRIGHTNESS CONTRAST SHARPNESS COLOR GAIN RETURN 2-1. BRIGHTNESS ( default: 110): Increases or decreases the brightness of the picture. This is different from that of DC iris lens and simply increases or decreases the digital gain of video.
- Page 24 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 3-3. TILT (default: 256): When MAG is greater than 0, the electronic tilt is available. 000 is the upper most tilt and 511 is the lower most tilt. 4. DIS (Digital Image Stabilization) This function is used to reduce and stabilizes the shaky image from a camera installed in the vibrated area.
- Page 25 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 5-5. TRANSP : Transparency rate for the mask can be adjusted. 0.00 - Mask is fully transparent and not visible. 0.50 - Mask is 50% transparent. 0.75 - Mask is 25% transparent. 1.00 - Mask is not transparent. 5-6.
- Page 26 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6-5. MONITOR AREA Sets the MOTION DETECTION MONITOR AREA area on screen. AREA SEL AREA MODE BOTTOM LEFT RIGHT RETURN 6-5-1. AREA SEL (default: 1/4) : Selects one of AREA1~AREA4 to be adjusted. Each area is displayed with the color. AREA1-Red, AREA2-Green, AREA3- Blue, AREA4-Yellow 6-5-2.
- Page 27 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 7-1. LENS : Selects the lens type, AUTO or MANUAL. AUTO supports DC auto-iris lens only. 7-1-1. AUTO • TYPE (default: DC): This camera does NOT support video type auto iris lens. MUST BE SET TO DC ONLY. •...
- Page 28 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 7-5. CAMERA ID Sets ON/OFF for enabling/disabling of ID display. Factory default ID is Software version of camera. User programmed camera ID will be lost and restored with factory default ID by CAMERA RESET. Up to 40 characters can be input for camera ID.
- Page 29 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 10. MAINTENANCE Sets the OSD menu user environments and Camera reset. MAINTENANCE MANUAL W.PIX MASK CAMERA RESET RETURN 10-1. W.PIX MASK This function is used to compensate white pixels(defective pixels). MANUAL COMP AUTO COMP REGISTRATION LEVEL1 REG.POINT...
- Page 30 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 10-1-3. DATA CLEAR : Clear the W.PIX data or not. 10-2. CAMERA RESET This function is used to reset to the factory defaults of the camera settings. RESET and EXIT the OSD menu. 11. EXIT Exits SETUP MENU and returns to the normal display.
-
Page 31: Specifications
Detailed Specifications 1/3” 960H High Density Sony® CCD Image Device 750TV Lines Resolution 976(H) x 494(V) Effective Pixels 0.003 Lux (Sens-up Off) / 0 Lux (IR-ON) Minimum Illumination 40 850nm IR LEDs Infrared LEDs Over 150 Feet IR Distance 3.5-16mm DC A/I, Switched IR Cut Filter D/N Lens Built-In Lens True Day/Night by ICR Day/Night... - Page 32 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
