User Manual
• High Density 1/3" EX-VIEW CCD & Effio-E DSP
• 700TVL High Resolution
• Advanced IR Optimizer helps reduce over saturation of IR illuminated video
without engaging the Image Signal Processor chip.
• 70 Infrared LEDs at 850nm enable viewing in total darkness up to 300 feet
• Infrared LED Dynamic Intensity Control with Automatic Brightness Adjustment
of IR LEDs to help prevent washed out images when objects are too close
• 0.003 Lux (F1.2 @ 40IRE) / 0 Lux with IR LEDs On
• E-WDR by Adaptive Tone Reproduction
• 6-50mm Varifocal Auto Iris IR Lens with External Adjustments for Focus and
Zoom
• True Day/Night by ICR - Infrared Cut Removal
• 2DNR Noise Reduction
• Motion Detection, Privacy Masking & Highlight Masking
• Dual Glass Compartments to Eliminate Glare
• OSD (On Screen Display) menu and Camera ID
• Secondary Video Output & OSD Control Joystick are accessible inside a gasket
sealed removable side panel
• Gasket-sealed external focus and zoom controls with clutch mechanism to
eliminate over-tightening for ease of installation and adjustment
• Heavy Duty IP68 rated weather/vandal resistant aluminum construction is
100% water and dust proof
• 24VAC/12VDC Dual Voltage

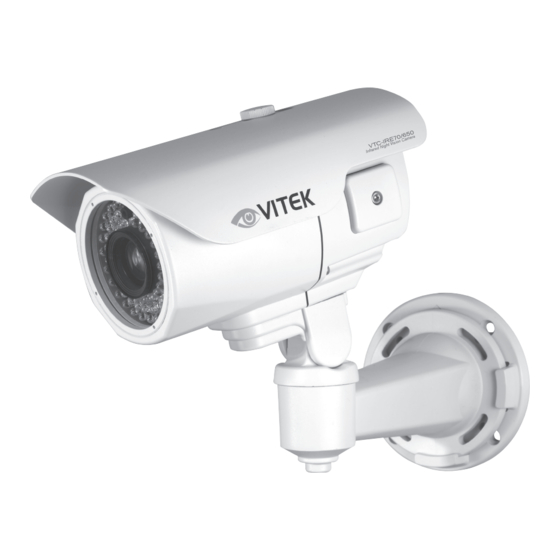

VTC-IRE70/650
Long Range IR Bullet Camera
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-IRE70
Summary of Contents for Vitek VTC-IRE70

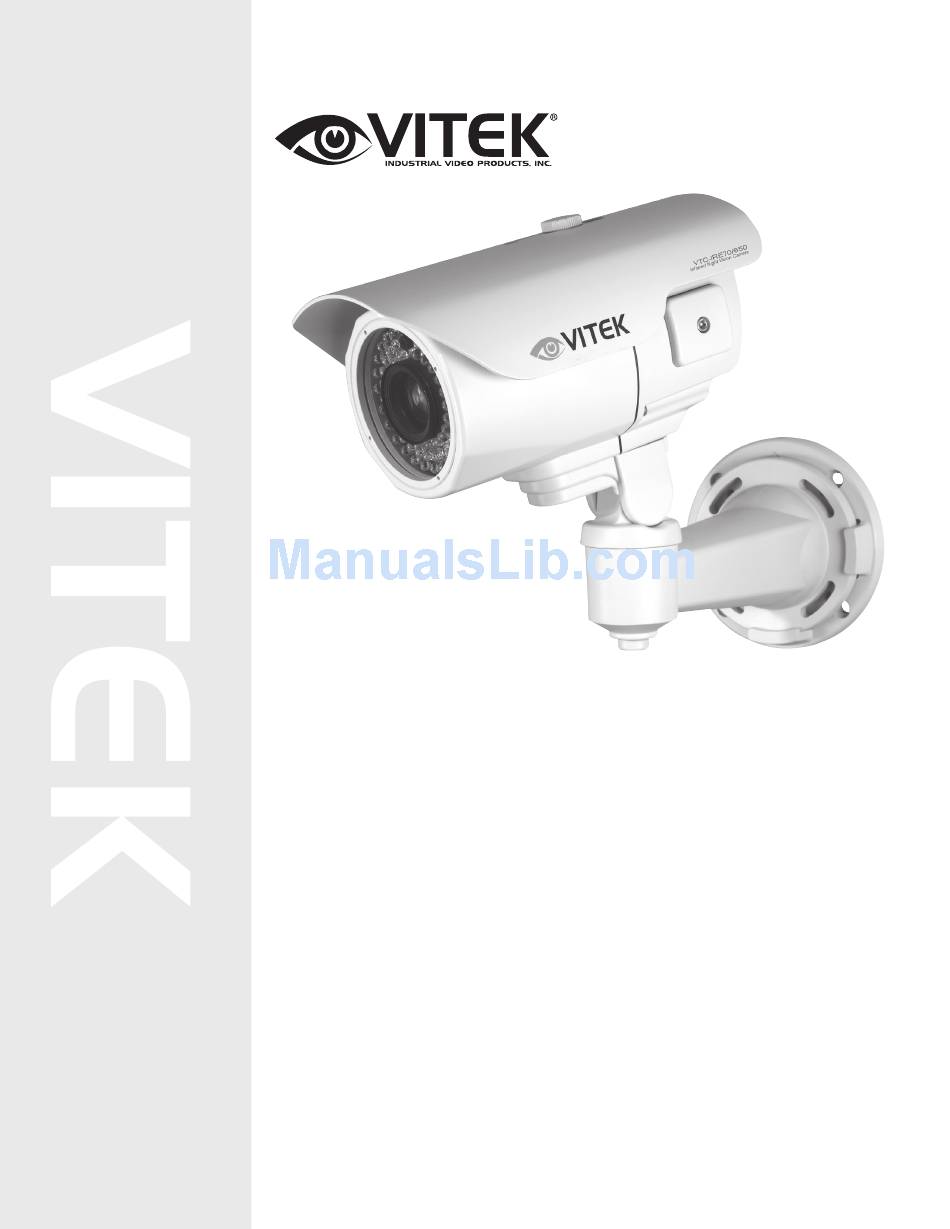

- Page 1 VTC-IRE70/650 Long Range IR Bullet Camera • High Density 1/3” EX-VIEW CCD & Effio-E DSP • 700TVL High Resolution • Advanced IR Optimizer helps reduce over saturation of IR illuminated video without engaging the Image Signal Processor chip. • 70 Infrared LEDs at 850nm enable viewing in total darkness up to 300 feet •...
-
Page 2: Table Of Contents
Table of contents 1. S afety I nstructions a nd N otes ............................... 2 2. G eneral D escriptions .................................. 3 3. S upplied I tems ..................................... 3 4. ... -
Page 3: Safety Instructions And Notes
WARNING This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit. This symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"... -
Page 4: General Descriptions
2. General Descriptions The VTC-IRE70/650 camera is an ultra high resolution camera that realizes over 700 TV Lines of resolution and delivers crisp color reproduction with its Sony 960H EX-view CCD and Effio-E image signal processors. Effio-E digital imaging system: Delivers crystal clear images with 700TVL resolution that accurately captures every aspect of any scene •... -
Page 5: Part Names
4. Part Names 4.1 Front view ⓐ ⓓ ⓔ ⓑ ⓒ ⓖ ⓕ ⓐ Sunshield attachment thumb screw ⓓ Sunshield ⓑ IR LED Panel ⓔ OSD (On Screen Display Control) Cover ⓒ Double Glass Window ⓕ Arm Assembly ⓖ Mounting Bracket Foot 4.2 Rear side view ①... -
Page 6: Installation Instructions
4) Affix the mounting bracket by using supplied screws 5.2. Power Supply Connections The VTC-IRE70/650 can operate with either 24AC or 12VDC, dual voltage power. It is required that the polarity-matched connection is made for 12VDC supply, otherwise IR LEDs, will not operate at night. -
Page 7: Main Menu
The FACTORY DEFAULT in this manual may NOT be the same as the default values set by the FACTORY due to feature improvements or customer requirements. To enter menu, press ● when MENU is not active. 6.2 MAIN menu Follow the chart for submenu settings. MAIN menu-1 MAIN menu-2 6 .2 .1 MAI N me nu - 1... -
Page 8: Main Menu-2
6.2.2 MAIN menu-2 MAIN menu-2 Default Descriptions Sets the noise reduction parameters for NR MODE and Y LEVEL, C LEVEL. See '6.9 NR menu' for details. Sets ON/OFF for enabling/disabling MOTION DET. MOTION DET See '6.10 MOTION DET menu' for the parameter settings. Sets ON/OFF for enabling/disabling PRIVACY. -
Page 9: Shutter/Agc>Auto Setup Menu
6.3.1 SHUTTER/AGC>AUTO SETUP menu AUTO SETUP Default Descriptions Sets the shutter mode from AUTO IRIS or SHUT+AUTO IRIS when MAIN>LENS>AUTO menu, but it is fixed to SHUT if in the MAIN>LENS>MANUAL menu. AUTO IRIS - Light level is controlled by an auto iris lens only. For proper auto iris operation, the auto iris operation mode in MAIN>... -
Page 10: Shutter/Agc>Manual Setup Menu
6.3.2 SHUTTER/AGC>MANUAL SETUP menu MANUAL Default Descriptions SETUP SHUT MODE Compensates the video level by the manual shutter control and AGC. +AGC Sets the manual shutter to 1/60(1/50), 1/100(1/120), 1/250,1/500,1/1000, 1/60 SHUTTER 1/2000, 1/4000 or 1/10000. (1/50) Manual shutter is only useful when luminance is unchanged. Sets AGC gain in dB. -
Page 11: Day/Night Menu
6.5 DAY/NIGHT menu To enter DAY/NIGHT menu, press ● button at MAIN menu-1>DAY/NIGHT. IMPORTANT ACTIVITY!!! D AY->NIGH T and NIGH T->DA Y oper ations m us t be ex am ined and v er ified at the final installation. Block the lens for a few seconds for NIGHT mode then release and let it return to DAY mode. If camera stays at NIGHT mode for more than 10sec, slightly decrease NIGHT→DAY THRES and repeat the fore-mentioned steps. - Page 12 6.6 PICT ADJUST menu To enter PICT ADJUST menu, press ● button at MAIN menu-1>PICT ADJUST. PICT ADJUST Default Descriptions MIRROR Picture will be flipped horizontally if it turns ON. Increases or decreases the brightness of the picture. This is different from that of DC iris lens and simply increases or decreases BRIGHTNESS the digital gain of video.
- Page 13 6.7 WHITE BAL menu White balance can be set to ATW, PUSH, USER1, USER2, ANTI CR, MANUAL or PUSH LOCK. ATW (Auto Tracking White balance) and PUSH (Full pull-in) is continuously monitoring/analyzing the color temperature of the incoming light and correcting the white balance. ATW limits the color temperature range to about 2,500˚K~8,500˚K to reduce the excessive compensation for a large object that has a single color.
-
Page 14: Atr (Adaptive Tone Reproduction) Menu
MANUAL WB Default Descriptions LEVEL Adjusts the manual white balance by LEVEL, (B-GAIN). 6.8 ATR (Adaptive Tone Reproduction) Menu The ATR feature improves the dynamic range and the visibility of the image by providing the optimal gradation compensation of the image in one field. This is achieved by two ways of image processing, luminance compression and contrast enhancement, so that the tone can be enhanced in highlighted and dark areas. -
Page 15: Backlight Menu
6.9 BACKLIGHT menu To enter BACKLIGHT menu, press ● button in MAIN menu-1>BACKLIGHT. The Backlight Compensation – BLC – function is used to brighten an image in the foreground with a highly lit area behind it such as sunlight, limiting the affect of silhouetting. BLC ON BLC OFF The Highlight Compensation –... - Page 16 Default Descriptions NR MODE Selects OFF, Y, C or Y/C, which noise reduction is performed with. Indicates the noise reduction strength for the luminance signal. Y LEVEL A higher value performs a stronger noise reduction, which makes the image less sharp. Indicates the noise reduction strength for the chrominance signal.
-
Page 17: Privacy Menu
6.12 PRIVACY menu Up to 8 privacy areas are available and each area is programmable in size and location. The number of privacy areas is limited to four when MOTION DET>MONITOR AREA is ON. The privacy areas are masked with the color selected in PRIVACY>COLOR. To enter PRIVACY menu, press ●... -
Page 18: Camera Id Menu
6.14 CAMERA ID menu Up to 40 characters can be input for camera ID. To enter CAMERA ID menu, press ● button at MAIN menu-2>CAMERA ID. CAMERA ID input line COMMAND LINE ◀ ► ▲ ▼ buttons to move a block cursor in the character table and press ● button to input the selected character. -
Page 19: Specifications
. Specifications VTC-IRE70/650 Image Device 1/3” High Density Sony EX-VIEW CCD & Effio-E DSP (960H) Resolution 700 TV lines Minimum illumination 0.003Lux / F1.2 (0 Lux with IR LEDs ON) Effective Pixels 976(H) x 494(V) S/N Ratio More than 50dB with AGC OFF at 50IRE Electronic Iris 1/60 to 1/100,000 sec. -
Page 20: Dimensional Drawings
8. Dimensional Drawings 214mm / 8.4in 228.5mm 172mm 6.8in 280.2mm / 11.03in 100mm 3.93in 72.1mm / 2.8in 58mm 2.3in 58mm 2.3in 72.1mm 2.8in... - Page 21 THE MIGHTY DOME THE ULTRA VERsATILE DOME CAMERA sERIEs The Mighty Series Dome cameras include models produced with the new Pixim-Powered Seawolf Wide Dynamic Range DSP and the Sony Effio Day Night DSP. The Highest resolution Analog camera line up to date offers 700 TV Lines of Resolution, up the coax OSD Control and low light capability up to 0.00008 lux.
-
Page 22: Remote Control
• MAC Client Software (Included) HDD Mirror redundancy place this DVR at the pinnacle of • Control locally via Front Panel, USB Mouse or with the Included IR the VITEK EH Lineup. Remote control • PTZ Control over RS-485 VT-EHP8... - Page 23 VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufac- tured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
- Page 24 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70 VeRsion 2 09/2012...
