• 1/3" High density Sony® CCD (960H)
• High Resolution of 750 Horizontal Lines
• Sony Effio-A Digital Signal Processor
• Simple Installation with External Focus and Zoom control and one
turn mount positioning lock
• True Day/Night by ICR (Infrared Cut Removal)
• E-WDR by ATR-EX (Adaptive Tone Reproduction)
• 70 Infrared LEDs at 850nm enable viewing in total darkness up to
300 feet
• 0.003 Lux (Sens-up Off) / 0 Lux (IR-ON)
• 6-50mm Varifocal Auto Iris Lens with External Adjustments for
Focus and Zoom
• True Day/Night by ICR - Infrared Cut Removal
• XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction
• Built-in Motion Detection with a 24x16 Grid
• OSD (On Screen Display) menu and Camera ID
• Dual Glass Compartments to Eliminate Glare
• IP68 NEMA Rating
• Heavy Duty Mount with Cable Feed Through
• Secondary Video Output & OSD Control Joystick are
accessible inside a gasket sealed removable side panel
• 24VAC/12VDC Dual Voltage

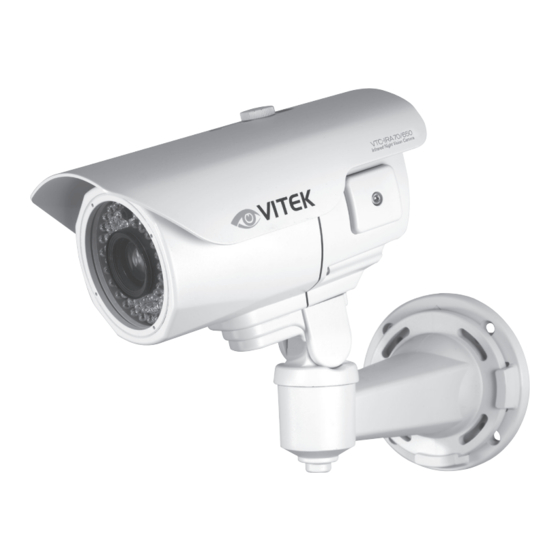

VTC-IRA70/650
750 TV Line Day/Night
IR Bullet Camera
w/300' Range (960H)
Advertisement
Table of Contents
Related Manuals for Vitek VTC-IRA70/650
Summary of Contents for Vitek VTC-IRA70/650
- Page 1 VTC-IRA70/650 750 TV Line Day/Night IR Bullet Camera w/300’ Range (960H) • 1/3” High density Sony® CCD (960H) • High Resolution of 750 Horizontal Lines • Sony Effio-A Digital Signal Processor • Simple Installation with External Focus and Zoom control and one turn mount positioning lock •...
-
Page 2: Safety Precaution
ULTRA CLEAR RESOLUTION CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 3 ULTRA CLEAR RESOLUTION CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 4: Table Of Contents
ULTRA CLEAR RESOLUTION CAMERA Contents p.02~03 Safety Precaution p.04 Contents p.05 Features p.05 Composition p.06 Dimensions p.07 Part Names p.08~10 Installation Instructions p.11~30 Operating Instructions p.31 Specifications... -
Page 5: Features
ULTRA CLEAR RESOLUTION CAMERA Features Key Features • 1/3” High density Sony CCD (960H) • 750TVL High-Resolution • D-WDR by ATR-EX • TDN with Dual Filter Switcher • Built-in f=6~50mm F1.4 DC Auto Iris vari-focal lens • Improved noise reduction 2D+3DNR •... -
Page 6: Composition
ULTRA CLEAR RESOLUTION CAMERA Composition Operating Mounting Cable Signal Instruction Template Sticker Camera Wiring Connector: Plastic Anchor: (1pc) 6 x 30mm (4pcs) Mounting Screw: 4 x 30mm (4pcs) Torque Wrench: Foot 3mm (1pc) Video Sub-out Bracket 5mm (1pc) Cable (1pc) -
Page 7: Dimensions
ULTRA CLEAR RESOLUTION CAMERA Dimensions 4.53“ (115mm) 3.70“ (94mm) Ø 3.94“ (100mm) 11.69“ (297mm) 8.43” (214mm) 6.89” (175mm) -
Page 8: Part Names
ULTRA CLEAR RESOLUTION CAMERA Part Names FOCUS / ZOOM adjusting Screws OSD Setup CONTROL COVER SUN-SHIELD FIXING BOLT SUN-SHIELD REAR VIEW POWER CABLE DUAL WINDOW FRONT CASE REAR CASE BRACKET CAUTION • Care should be taken the cable is NOT damaged, kinked or exposed in hazardous area. -
Page 9: Installation Instructions
ULTRA CLEAR RESOLUTION CAMERA Installation Instructions 1. Place the mounting template at the installation position and drill the wall. Insert the anchors into the drilled holes 2. Place the foot bracket(option) on pre-drilled position and attach using the mounting screws. Skip this step when a foot bracket is not installed. 3. -
Page 10: Installation And Commissioning Instructions
ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Zoom & Focus adjustments Use the torque wrench supplied. • Turn the Focus gear to “N”(Near) or “∞”(Far) until the sharpest focus is made. • To widen the viewing angle, turn the Zoom to “W”(Wide) and to obtain a closer view, turn it to “T”(Tele) Installation and commissioning Instructions •... -
Page 11: Operating Instructions
ULTRA CLEAR RESOLUTION CAMERA Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Torque Wrench (3mm) Cover Open SUB-OUT... - Page 12 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • : Selects previous page or next page. • EXIT : Enters ‘EXIT’ menu. • RETURN : Returns to the previous menu. SETUP MENU SETUP MENU 1 / 2...
- Page 13 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions ATR-EX SCENE SELECT LEVEL AUTO DAY/NIGHT BURST CNTL SIGNAL EXT1 DELAY CNT DAY->NIGHT NIGHT->DAY NIGHT BURST IR OPTIMIZER MODE AUTO IR AREA LEVEL IR LED DAY/NIGHT / OFF/ FIX COLOR NIGHT OFF / ON IR SHADE COMP OFF / ON OFF (default)
- Page 14 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions POSITION PRIVACY MASK COLOR TRANSP MOSAIC OFF (default) MOTION DET DETECT SENSE INTERVAL BLOCK DISP MASK AREA MONITOR AREA AREA SEL AREA MODE BOTTOM LEFT RIGHT TYPE LENS AUTO SYS SETTING MODE AUTO ADJUST SPEED FLIP OFF / V / H / HV...
-
Page 15: Osd Menu Setup
ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Setup Press the OSD menu SET key down to access the setup menu mode. SETUP MENU ADVANCED MENU 1 / 2 1 / 2 SCENE SELECT FULL AUTO AUTO SHUTTER/AGC PICT ADJUST WHITE BAL EZOOM HLC/BLC... - Page 16 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-1-2. MANUAL: Video level is manually controlled by the settings of SHUTTER, AGC MAX. In this mode, ‘DC Auto Iris Lens’ is only available. 1-1-3. FIX: Video level is fixed in any conditions by the setting of SHUTTER, AGC MAX. 1-2.
- Page 17 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions • ENVIRONMENT (default: INDOOR): Selects INDOOR, SUNNY, SHADE or AUTO Their ATW is optimized for the limited application and can not cover > INDOOR : Optimized for Indoor installation and more easily compensates ATW for low color temperature such as incandescent lights.
- Page 18 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-3-2. HLC: HLC clips out the highlight area and masks it as black color. Video will be clipped out and masked for the area which exceeds CLIP LEVEL. • CLIP LEVEL (default: 010): Defines the threshold level for HLC. Lower value masks more. 1-3-3.
- Page 19 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions • BURST (default: OFF) BURST determines whether a color burst signal keeps output or eliminated when camera switches to B/W. If set to ON, B/W video signal contains color burst signal and is compatible with the color equipment but shows the same resolution as color video.
- Page 20 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions IMPORTANT ACTIVITY DAY->NIGHT and NIGHT->DAY operations must be examined and verified at the final installation. Block the lens for a few seconds for NIGHT mode and release and let it return to DAY mode. If camera stays at NIGHT mode more than 10sec, decrease NIGHT->DAY THRES a little and repeat the fore-mentioned steps.
- Page 21 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-7. IR OPTIMIZER (default: OFF) This function is effective built-in LED models in NIGHT mode only. If subjects which can cause overexposure are located near the monitored area, you can adjust IR OPTIMIZER level or area. IR OPTIMIZER OFF IR OPTIMIZER ON ●...
- Page 22 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-7-4. IR LED: Sets the IR LED ON/OFF controlling • DAY/NIGHT : Follows the setting automatically DAY/NIGHT function. • OFF : Turns IR LED off. • FIX : Fixes the brightness of IR LED in any condition. IR LED AUTO IR LED FIX LEVEL MIN...
- Page 23 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-9. DEFOG (default: ON) This function is used to carry out defog function. Sets LEVEL to eliminate amount of fog on screen. If the DEFOG is set to ON, the WDR/BLC function will be deactivated. 1-10.
- Page 24 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 2-5. COLOR GAIN (default: 128): Increases or decreases the color saturation. 3. EZOOM (default: OFF): Sets the maximum digital zoom magnification. E.ZOOM function enlarges the pixel itself, which can cause deterioration of the picture quality. 3-1.
- Page 25 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 5-2. DISPLAY (default: OFF) Displays OFF/ON for the mask area which you selected ‘AREA SEL’ 5-3. POSITION : Adjusts the mask area X,Y-Axis position which you selected ‘AREA SEL’ • TOP/BOTTOM: ◄button moves up and ►button moves down the top (bottom) border of the selected window at AREA SEL.
- Page 26 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6-4. MASK AREA 9 10 11 12 Sets MASK AREA for disabling 13 14 15 16 17 18 19 20 21 22 23 24 MOTION DETECTION. 25 26 27 28 29 30 31 32 33 34 35 36 Selects number of area sels to 37 38 39 40 41 42 43 44 45 46 47 48 set the area you need.
- Page 27 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 7. SYS SETTING Sets the system related functions. 7-1. LENS SYSTEM SETTING Selects the lens type, AUTO or MANUAL. AUTO supports DC AUTO LENS auto-iris lens only. FLIP LCD/CRT 7-1-1. AUTO COMMUNICATION CAMERA ID •...
- Page 28 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 7-5. CAMERA ID Sets ON/OFF for enabling/disabling of ID display. Factory default ID is Software version of camera. User programmed camera ID will be lost and restored with factory default ID by CAMERA RESET. Up to 40 characters can be input for camera ID.
- Page 29 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 10. MAINTENANCE Sets the OSD menu user environments and Camera reset. MAINTENANCE MANUAL W.PIX MASK CAMERA RESET RETURN 10-1. W.PIX MASK This function is used to compensate white pixels(defective pixels). MANUAL COMP AUTO COMP REGISTRATION LEVEL1 REG.POINT...
- Page 30 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 10-1-3. DATA CLEAR : Clear the W.PIX data or not. 10-2. CAMERA RESET This function is used to reset to the factory defaults of the camera settings. RESET and EXIT the OSD menu. 11. EXIT Exits SETUP MENU and returns to the normal display.
-
Page 31: Specifications
Detailed Specifications 1/3” 960H High Density Sony® CCD Image Device 750TV Lines Resolution 976(H) x 494(V) Effective Pixels 0.003 Lux (Sens-up Off) / 0 Lux (IR-ON) Minimum Illumination 70 850nm IR LEDs Infrared LEDs Over 300 Feet IR Distance 6-50mm DC A/I, Switched IR Cut Filter D/N Lens Built-In Lens True Day/Night by ICR Day/Night... - Page 32 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
