Installing the CompactFlash Disk, GBIC, and Port Adapter

Installing and Removing a Port Adapter or Service Adapter

The information in this section also applies to service adapters. For information about configuring a port
adapter, see the port adapter documentation at:
http://www.cisco.com/univercd/cc/td/doc/product/core/7200vx/portadpt/index.htm.
When performing the following procedures, wear a grounding wrist strap to avoid ESD damage to the
Warning
card. Some platforms have an ESD connector for attaching the wrist strap. Do not directly touch the
midplane or backplane with your hand or any metal tool, or you could shock yourself.
Before removing any port adapter, gracefully shut down the interface so that thre is no traffic running
through the port adapter when it is removed. Removing a port adapter when traffic is flowing through
the ports can cause system disruption.
The Cisco 7401ASR router supports OIR of the port adapter. However, if you choose to power off the
router to remove or install a port adapter, turn the power switch to the off position and then remove the
power cable. After you have replaced the port adapter or inserted afiller panel, replace the power cable
and then turn the power switch to the on position.
After powering off the router, wait at least 30 seconds before powering it on again.
Note
Follow these steps for inserting and securing a port adapter:
Step 1 Attach an ESD wrist strap between you and an unpainted chassis surface. For wrist straps with a banana
jack, insert the banana jack in its grounding hole located on the front of the chassis, near the STATUS
LED and power switch.

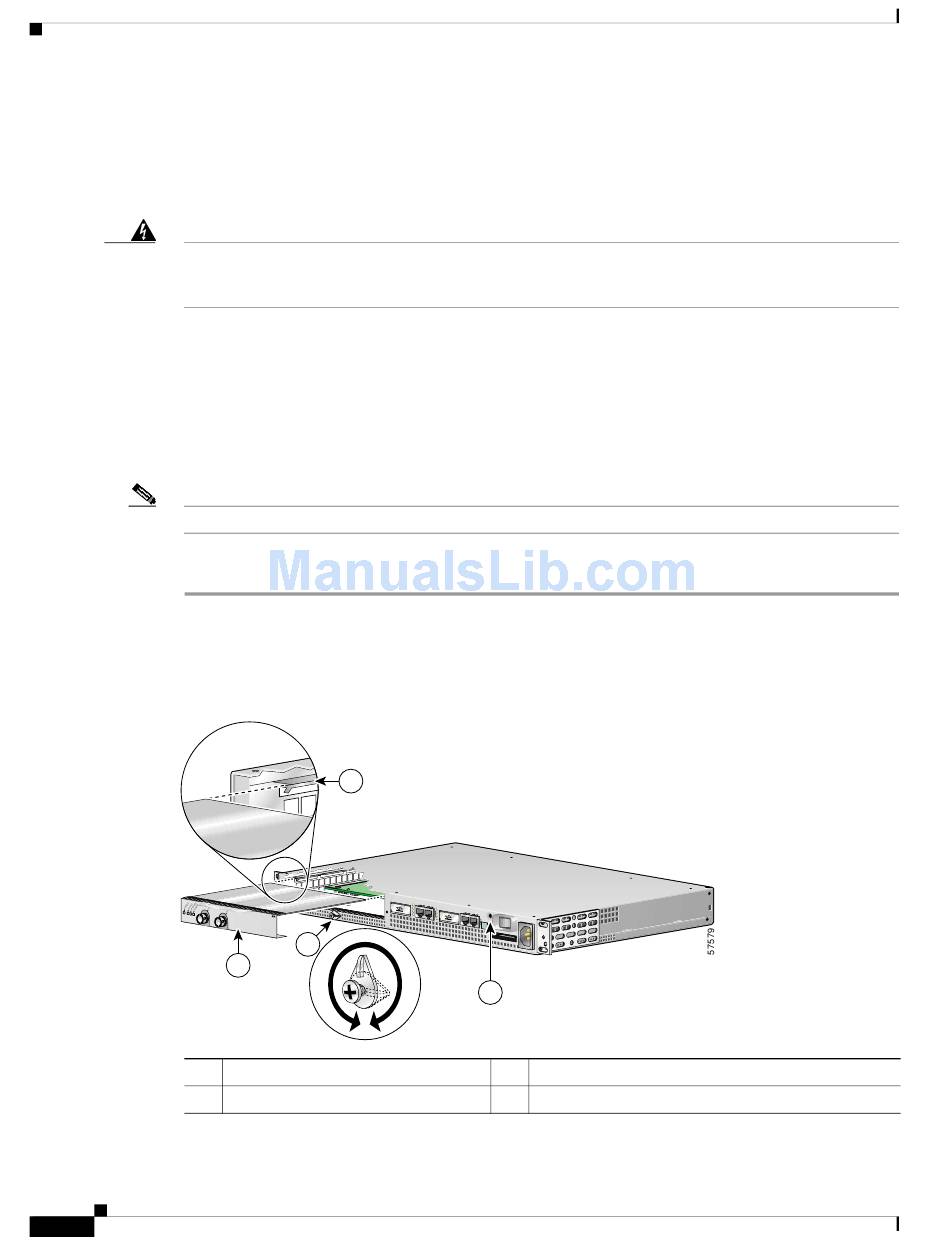

Figure 1-7
1
2
Cisco 7401ASR Installation and Configuration Guide
1-10
Installing a Port Adapter or Service Adapter
3
ENH ANC ED
ATM
1
2
Port adapter latch
Port adapter
Chapter 1
4
3 Port adapter slot guide
4
Ground for ESD wrist strap banana jack
Overview and Parts Installation
OL-5419-01 B0
