3. Installation

3.2.3. Chassis Ground Connection

The RX1510 chassis ground connection, shown in

uses a #10-32 screw. It is recommended to terminate the ground connection in a #10 ring lug.

Torque on the chassis ground connection should not exceed 30 in-lbs (3.4 Nm).

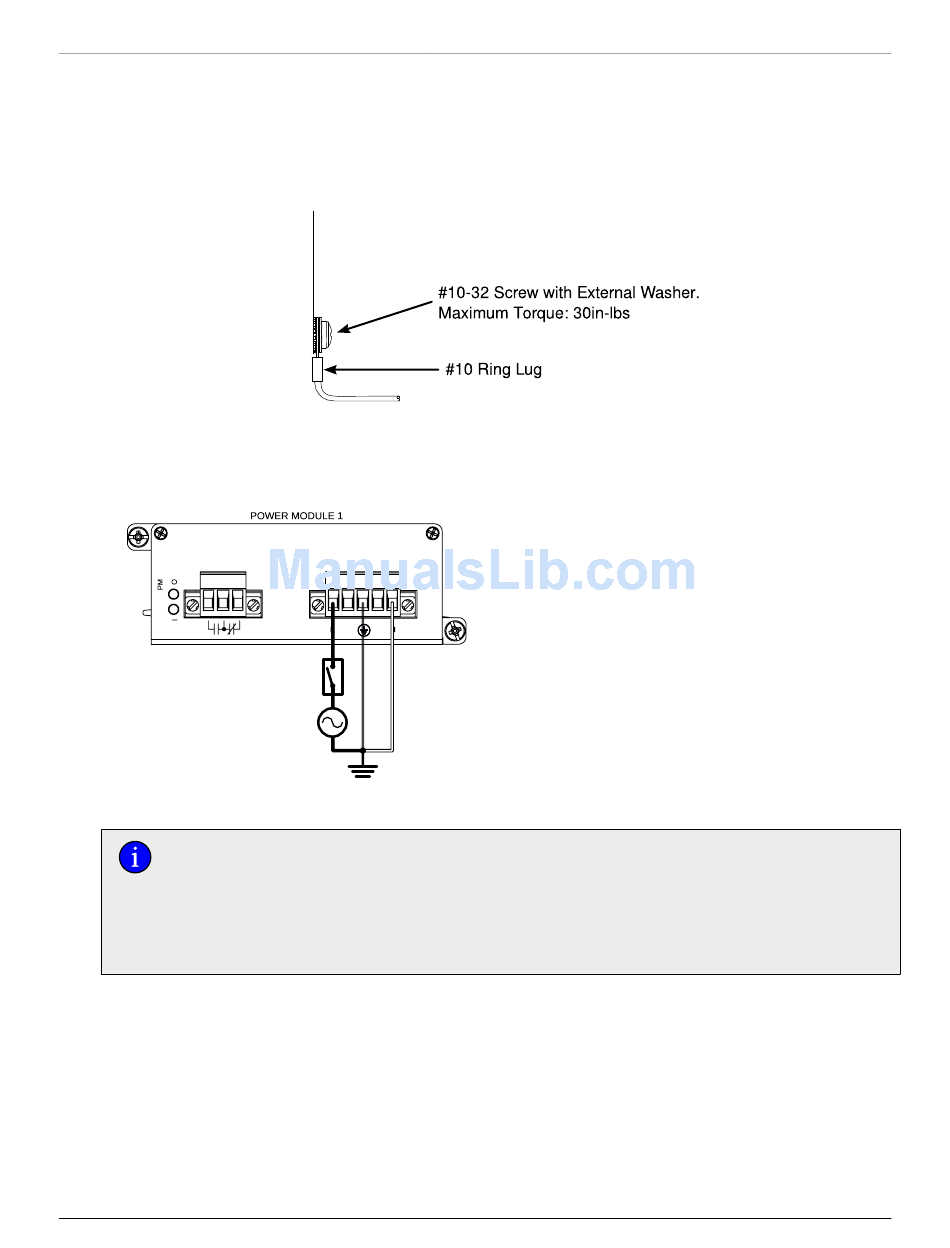

Figure 3.11. Chassis Ground Connection

Figure 3.12. Wiring for Single AC Power Supply (HIP module shown)

• For 125/230VAC rated equipment, a appropriately rated AC circuit breaker must be

installed.

• It is recommended to provide a separate circuit breaker for each power supply

module.

• Equipment must be installed according to applicable local wiring codes.

RuggedCom® RuggedBackbone™

Figure 3.11, "Chassis Ground

RX1510 Installation Guide Rev 104

Connection",
