AP440FX Motherboard Technical Product Specification

1.12.1 Front Panel Connectors

The AP440FX motherboard provides connectors to support functions typically located on the
chassis bezel. In addition, connectors are provided that support a cooling fan and a keyboard lock.
Front panel features supported by front panel connectors include:
•
Soft Power-On
•
Sleep/Resume
•
Infrared (IrDA) port
•
Hard Drive activity LED
•
Power LED
•
Reset
•
Speaker
•
Keyboard lock
Each of the front panel connectors is identified in Figure 4. The front panel I/O connector and
keyboard lock connector are shown, in detail, in Figure 5.
Table 4 lists the pinout for the front panel I/O connector.
Table 4.

Front Panel I/O Connector (J2A1)

Pin Signal Name
1 SW_ON
2 FPPWR_ON
3 SLEEP_REQ
4 FPSLP
5 Key
6 +5V
7 Key
8 IR_RX
9 Ground
10 IR_TX
11 IR_SL1
12 Key
13 +5V
14 Key
22
J2A1
3 6
1
SW_ON IRDA
SLP

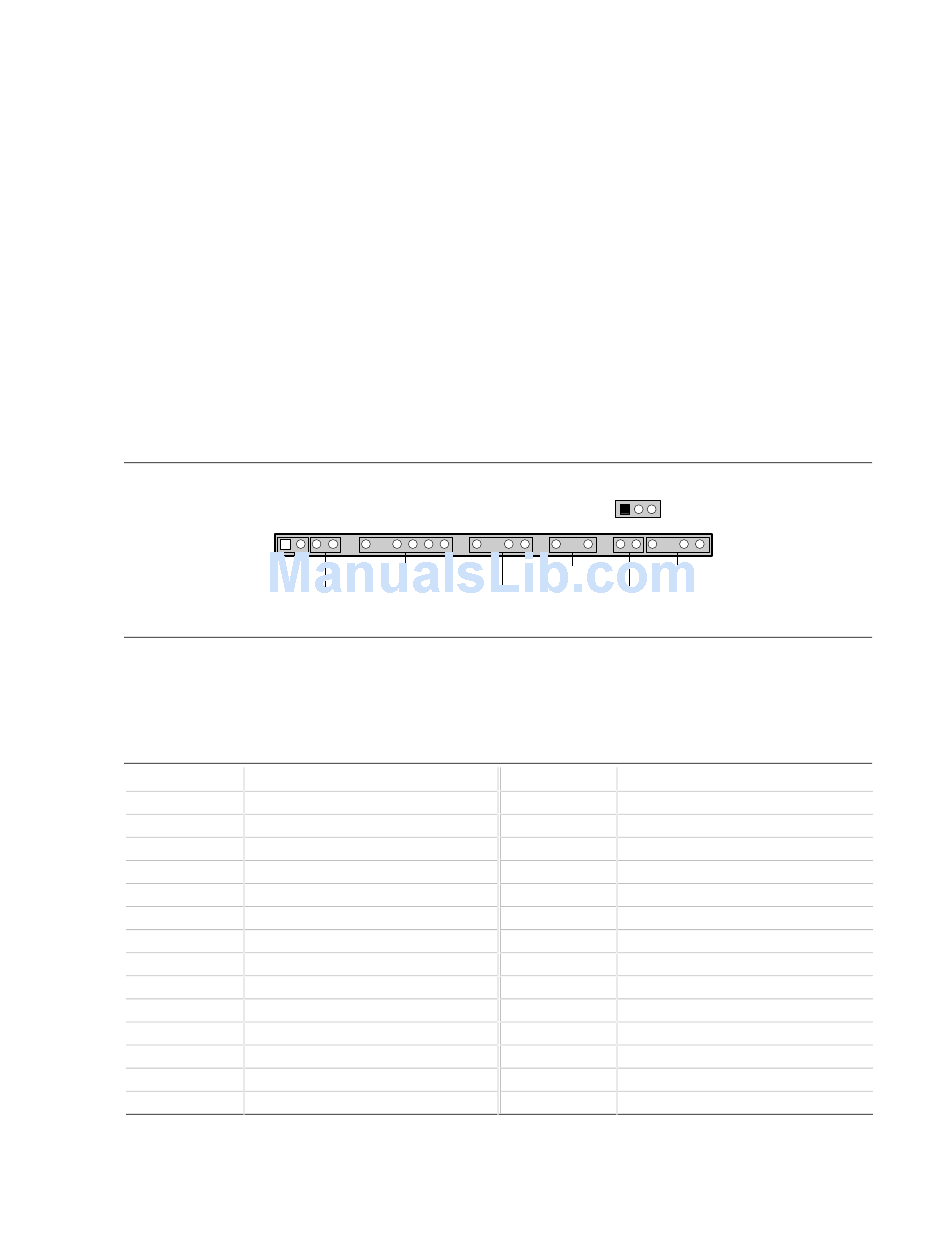

Figure 5. Front Panel I/O Connectors
J3A1
1
13 18
PWRLED
HDLED RESET
Pin Signal Name
15 HD ACTIVE
16 +5V
17 Key
18 Ground
19 Key
20 PWRDVR
21 Key
22 Ground
23 FP_RESET
24 +5V
25 Key
26 SPKR_DAT connect
27 PC_SPKROUT
Keyboard
Lock
27
SPKR
OM04953
