AP440FX Motherboard Technical Product Specification
Table 1.

Key to Motherboard Features

Key Description
†
A VGA connector
†
D PS/2 mouse connector
G I/O Controller (U7M1)
J Crystal audio controller (U9M1)
M Floppy connector (J8L1)
P Main power connector (J9H1)
S Hardware monitor ASIC (U9C1)
V Onboard speaker (L9A1)
Y Intel SB82371SB (PIIX3, U6E1)
BB Front panel connector (J2A1)
EE Intel SB82442FX (DBX, U2F1)
HH PCI slot Jumper block (2x3, J1J1)
KK 2 MB of Video DRAM
8
A B C
MM
LL
KK
JJ
II
HH
GG
FF
EE
DD
CC
AA Z
BB

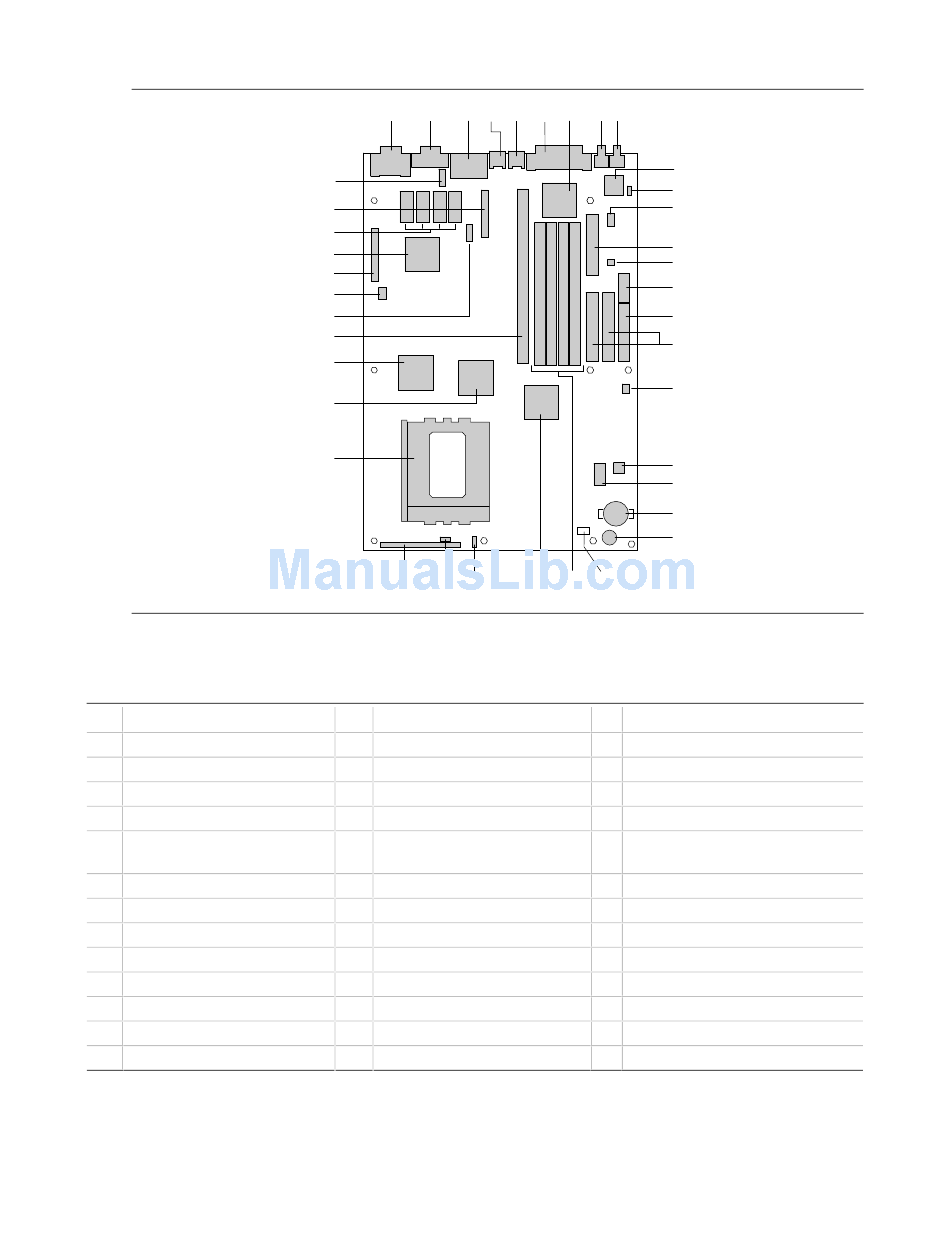

Figure 1. Motherboard Features
Key Description
B Serial port connector
E PS/2 keyboard connector
H Microphone input jack
K CD-ROM header (4x1, J9N1)
N Telephony (modem) header (2x2,
J9K1)
Q IDE connectors (J8H1, J9H2)
T Flash BIOS (E28F002, U8C1)
W 3.5 V processor jumper (J8A2)
Z Auxiliary fan header (1x3, J4A1)
CC Processor socket (U3C1)
FF ISA/PCI riser socket (J6J2)
II LPB VESA header (J1K1)
LL Configuration jumper block (J4L2)
F H I
D E G
Y X W
OM06178
Key Description
C Side-by-side USB connectors
F Parallel port connector
I Audio output jack
L Wavetable header (2x4, J9L1)
O Standard 3.3V power connector (J9J1)
R Soft Off header (3x1, J9F1)
U Real-time clock battery (BT9B1)
X SIMM sockets (J6J1, J7J1, J7J2, J7J3)
AA Keylock header (3x1, J3A1)
DD Intel SB82441FX (PMC, U4F1)
GG Consumer/Fast IR header (5x2, J4L1)
JJ S3 ViRGE/DX video controller (U2K1)
MM COM2H header (5x2, J3N1)
J
K
L
M
N
O
P
Q
R
S
T
U
V
