AP440FX Motherboard Technical Product Specification

1.4 I/O Shield

The back panel I/O shield for the AP440FX motherboard must meet specific dimensional and
material requirements. Computers based on the AP440FX motherboard need the back panel I/O
shield in order to pass certification testing. Figure 3 shows the critical dimensions for the I/O
shield and indicates the position of each cutout.
0.682
0.525
2.534
10
3.945
4.645
5.302
5.963

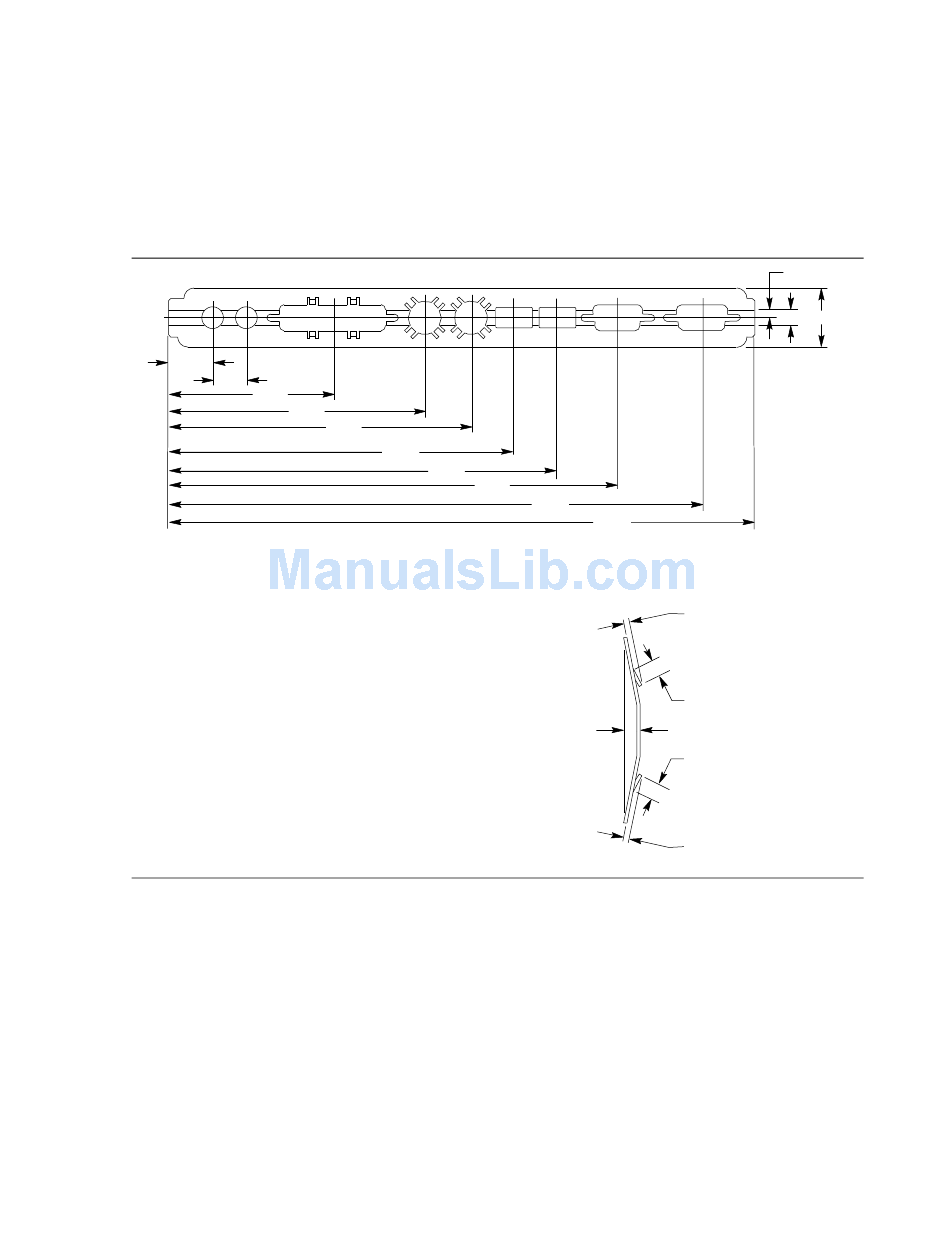

Figure 3. Back Panel I/O Shield Dimensions
6.904
8.193
9.000
Right-end View
0.118
0.235 0.900
0.021
0.080
0.075
0.079
0.027
OM06183A
