- Page 1 Delvcam DELV-SDI-7 User Guide ...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: Please read manual before using this product. Please keep manual for future reference. Please read the cautions to prevent possible danger and loss of property Please enjoy the benefits of convenience, safety, and space-saving from this TFT LCD monitor in different ways. -
Page 3: Table Of Contents
Contents PRODUCT DESCRIPTION ---------------------- INSTALLATION OF SUNSHADECOVER AND BATTERY PLATE--------------------------- DV BATTERY MOUNT PLATE----------------- SETTING MENU ----------------------------------- ACCESSORIES ------------------------------------- PARAMETER --------------------------------------- TROUBLESHOOTING --------------------------- ... -
Page 4: Product Description

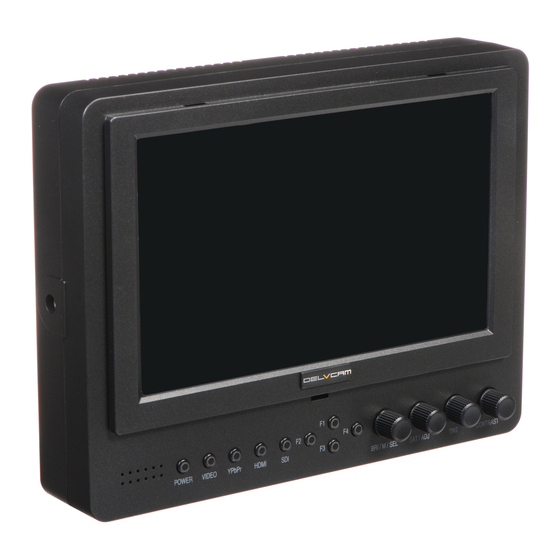

PRODUCT DESCRIPTION 1．POWER：ON/OFF (Light turns to red when power on.) 2．VIDEO: Indicator lights up when signal switch to video state. 3．YPbPr: Indicator lights up when signal switch to YPbPr state. 4．HDMI: Indicator lights up when signal switch to HDMI state. 5．SDI: Indicator lights up when signal switch to SDI state (optional). - Page 5 11. SDI signal output. (Optional) 12. Video signal output. 13. Video signal input. 14. Audio signal input. 15. SDI signal input. (Optional) 16. Y signal input 17. Pb signal input 18. Pr signal input 19.
-
Page 6: Installation Of Sunshadecover
INSTALLATION OF SUNSHADE COVER AND BATTERY PLATE Installation of sunshade cover： Disassembly of sunshade cover： Installation steps Installation completed Disassembly steps Disassembly completed Steps of sunshade cover on / off: ... -
Page 7: Dv Battery Mount Plate
DV BATTERY MOUNT PLATE: Standard mounts process Following three types of battery plates are suitable for this device, model F970&QM91D are standard accessories, model DU21 is for optional. DV Battery Mount Plate: Model DU21 for battery of Panasonic DV: ... -
Page 8: Setting Menu
Please refer to GP-L130B Anton Bauer mount battery plate (optional): type battery specifications. SETTING MENU Before setting the functions, please make sure the device is connected correctly. When power on, press BRI/M/SEL knob on the device, function menus will pop-up on the screen. - Page 9 ITEMS OPTIONS Center Marker ON/OFF Screen Markers OFF, 95%,93%,90%,88%,85% and80% ITEMS OPTIONS Language English /Chinese Small, Medium, Large, PBP, POP In small, medium and large interface can adjust the source, position, and swap; In PBP and POP interface can adjust the source and swap.
-
Page 10: Accessories
ACCESSORIES: Standard accessories: 1. Flexible Folding Sun Shade Cover 1 piece 2. Battery Plate QM91D 1 piece Battery Plate F-970 1 piece 3. Manual 1 copy 4. HDMI Type A-C 1 piece ... -
Page 11: Troubleshooting
TROUBLE SHOOTING 1. Only black-and-white display: Check whether the color saturation is properly setup. 2. Power on but no pictures: Check whether the cables of Video, HDMI, YPbPr and SDI are correctly connected. Please use the standard power adapter coming with the product package. - Page 12 ...
