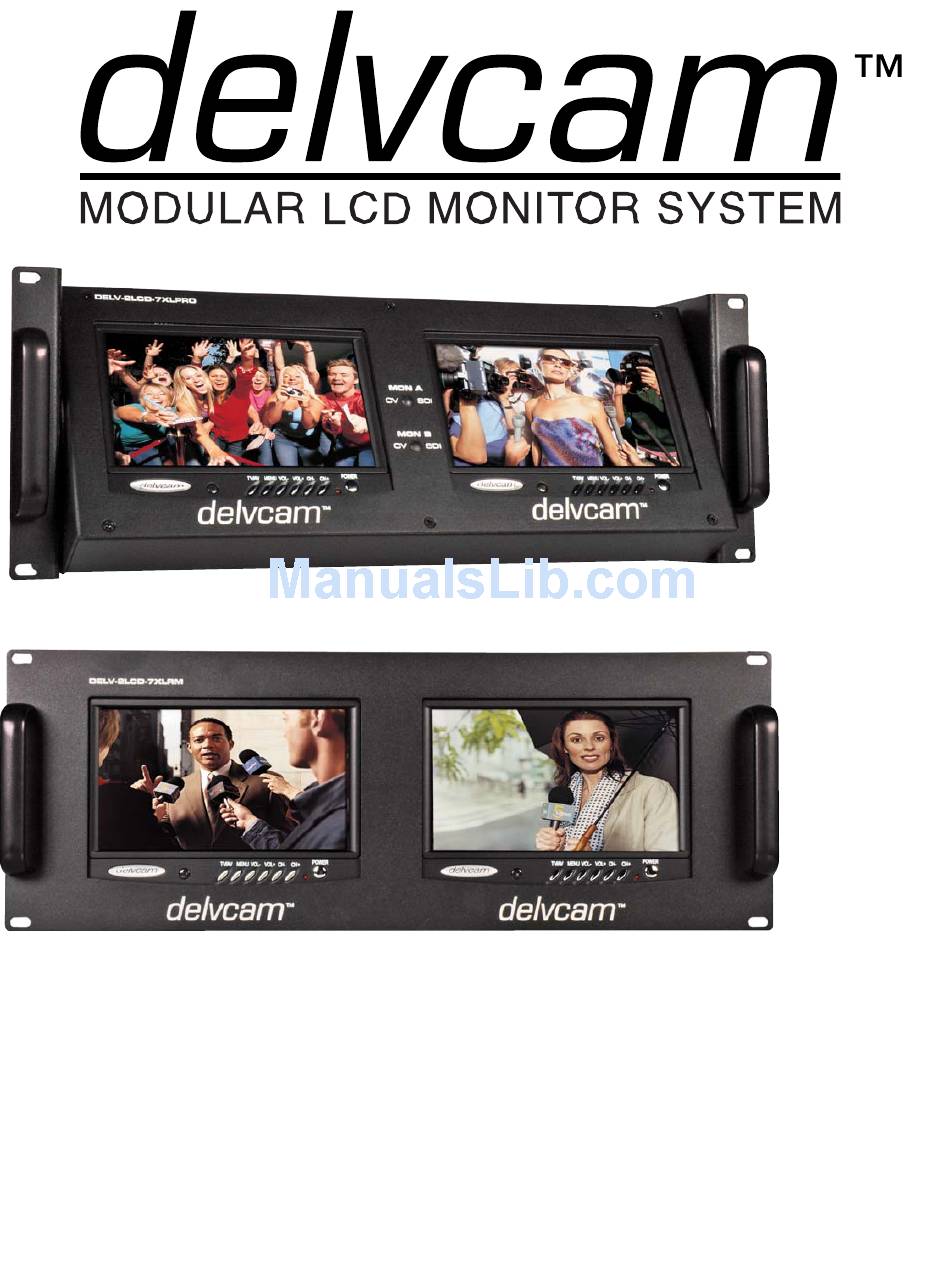

- Page 1 DELV-2LCD-7XLPRO DELV-2LCD7XLS DELV-2LCD-RM NTSC 7" C TFT 16:9 / 4:3 OLOR LCD R ACKMOUNT ONITOR ERIES ANUAL...

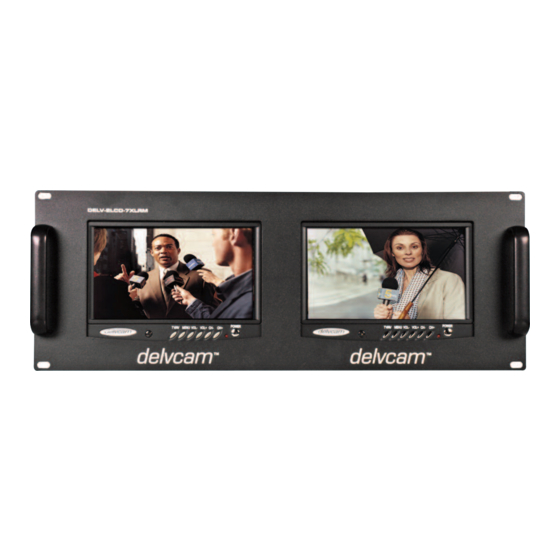

- Page 2 Get ready for the new and demanding high resolution video production market, the Delvcam LCD series advanced monitoring system is loaded with features. A dual mon- itor rackmount solution for the high end video environment, the Delvcam LCD series provides both 16:9 and standard 4:3 aspect ratio video monitoring in a well designed, rackmount housing with optional adjustable pitch.
- Page 3 Hand-Held IR Remote Control Unit (2) 75 Ohm Terminator (2) RF Adapter (Monitor A Only) 110-220V 50/60Hz Power Adapter: 12VDC @ 4A Hand-Held IR Remote Control Unit (2) Video Input Looping Cable / Terminator (2) BNC Male to RCA Female Adapter (2) RF Adapter (2) A/V Input Cable (2) 110-220V 50/60Hz Power Adapter: 12VDC @ 1A (2)
- Page 4 Complete instructions for LCD setup and operation are covered in the included LCD manual. Please note that the manual does cover mechanical items and topics that are no longer covered for the Delvcam dual-rack monitor configuration. It is recommended that you read and study that manual first.
- Page 5 Power Entry Monitor B - Video input (looping) Monitor B - Audio input Monitor B - SDI input (DELV-2LCD7XLS only) Monitor A - RF (CATV) input Monitor A - Audio input Monitor A - SDI input (DELV-2LCD7XLS only) Monitor A - Video input (looping) Mount Monitor in Rack Push Top or Bottom of Monitor to Tilt as Desired Side View...
- Page 6 Monitor B - Audio Input Monitor A - Headphone Audio Output Monitor B - Video Input Looping Monitor A - Power Input (Looping / Termination Cable Provided) Monitor B - RF Antennna (CATV) Input Monitor B - Headphone Audio Output Monitor B - External Antenna Monitor B - Power Input Monitor A - RF Antennna (CATV) Input...
-
Page 7: Safety Warning
AFETY ARNING 1. To prevent fire or shock hazard, do not expose this equipment to the environment of high humidity and dust. Do not use it in an unprotected outdoor installation or any area classified as wet. 2. The temperature for installation should be kept between -40°C ~ +95°C. Avoid direct sunlight or extreme changes of temperature. - Page 8 DELV-LOOP 5 / 7XLPRO LCD Monitor Looping Accessory Bridging Looping Audio Input Video Input This monitor has been designed and shipped with an open 75 ohm (unterminated) video input. It must not be used without proper termina- tion provided by the looping / terminating Y-cable included with monitor. Several monitors (DELV-5XLPRO / DELV-7XLPRO) can be looped using standard looping / terminating procedures which observes 75 ohm line terminat ion at the last monitor.
