Multiple video head connections

Two.or.more.AdderView.CATxIP.1000.units.can.be.connected.
together.so.that.they.operate.in.a.synchronised.manner..
Synchronised.operation.is.useful.for.applications.that.require.
multiple.video.signals.to.be.switched.together..This.type.of.
operation.is.usually.required.where.each.computer.is.fitted.with.
multiple.video.cards.or.video.cards.with.multiple.video.heads..
Whenever.an.AdderView.CATxIP.1000.channel.is.switched,.it.sends.
an.RS232.command.out.on.its.serial.interface.(marked.
the.rear.panel)..An.AdderView.CATxIP.1000.will.switch.its.channel.if.
it.receives.the.same.command.on.its.serial.interface..Consequently,.
by.linking.the.serial.interfaces,.a.master.unit.may.be.made.to.

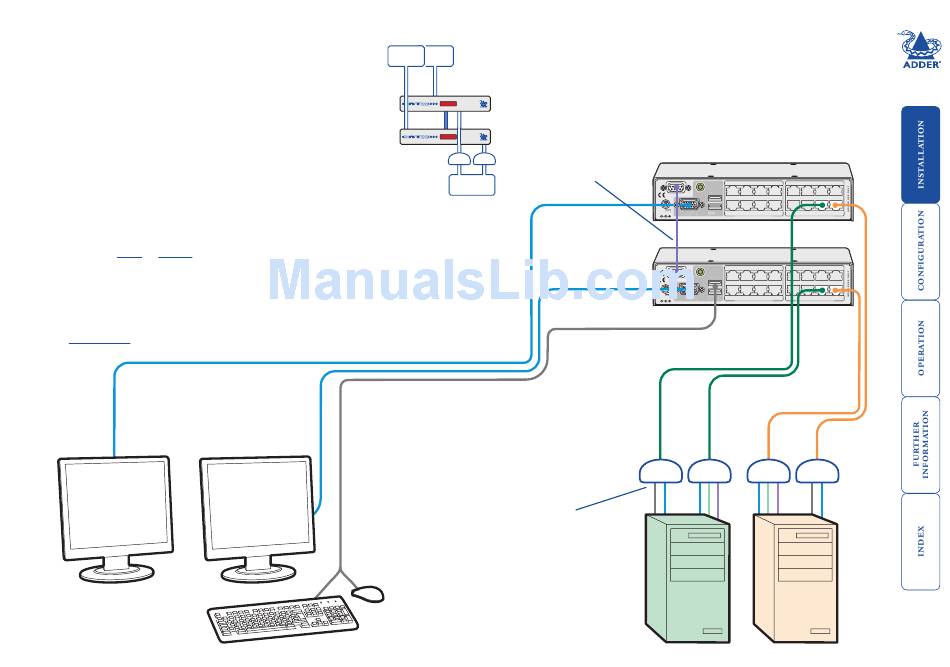

automatically.switch.one.or.more.slave.units.as.shown.in.the.diagram.
Note: You must ensure that all AdderView CATxIP 1000.units have their Options serial
ports set to 'Sync Units' and that their baud rates are identical. These settings can be made
local global
either via the or user configuration menus.
It.should.be.noted.that.the.synchronisation.cable.deliberately.does.not.have.the.transmit.
pin.of.the.Slave.End.connector.linked.to.the.receive.pin.of.the.Master.End.connector..To.
do.so.would.cause.the.Slave.unit.to.be.able.to.switch.the.Master.unit..This.would.setup.
an.endless.cyclical.switching.sequence.that.would.prevent.the.AdderView.CATxIP.1000.
devices.from.operating.correctly..For.more.details.about.the.serial.synchronisation.cables,.
see.Appendix 7.....
