Addressing computers in a cascade

Computer.systems.connected.within.a.cascade.arrangement.are.addressed.
using.up.to.four.digits,.two.for.each.cascade.level..The.pairs.of.digits.specify.
which.of.the.
COMPUTER CONNECTIONS

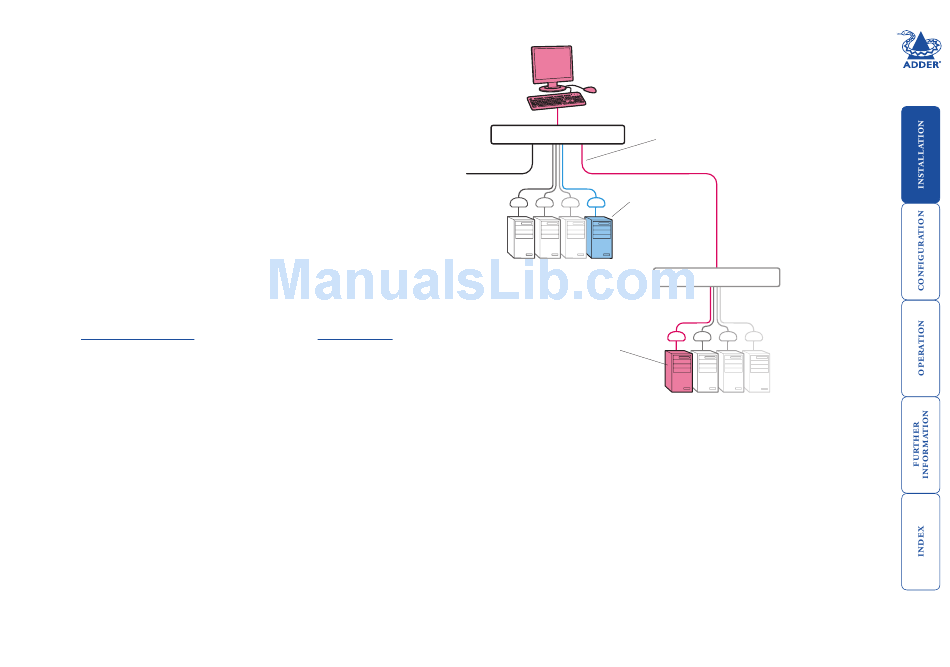

1000.units.must.be.enabled.to.reach.a.specific.computer..In.the.diagram.given.
here,.a.portion.of.the.previous.cascade.diagram.indicates.how.the.routes.to.two.
particular.computers.are.formed.and.addressed....
Each.cascade.level.requires.two.digits,.hence.the.computer.marked.in.red.
requires.a.longer.address.(1203).as.it.is.situated.at.cascade.level.2,.compared.to.
the.blue.computer.at.the.top.level.with.its.two.digit.port.number.
The.first.time.that.you.make.a.connection.between.an.AdderView.CATxIP.1000.
and.an.AdderView.CATx.1000,.the.master.unit.will.detect.this.and.ask.(via.the.
on.screen.menu).if.you.want.to.automatically.add.computers..If.you.choose.
'Yes'.then.the.ports.on.the.cascade.will.be.automatically.added.to.the.on.screen.
menu.

Using cascaded computers

In.use,.cascaded.computers.can.be.accessed.using.exactly.the.same.methods.
as.for.those.connected.directly.to.the.AdderView.CATxIP.1000..However,.by.
far.the.easiest.way.is.to.use.the.on.screen.menu..This.is.because.it.displays.the.
computer.names.and.does.not.require.any.knowledge.of.port.addresses..See.
either.Selecting a computer.(for.local.user.access).or.Host
user.access).for.more.details.
.ports.on.each.of.the.AdderView.CATx.
selection.(for.global.
1203
AdderView CATxIP 1000
Port 12
at cascade
level 1
The unique
CAM CAM CAM CAM
address of
this host is:
08
AdderView CATx 1000
CAM
The unique address
of this host is:
1203
CAM CAM CAM
