Special Symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the associated warning should be observed. CAUTION: REFER TO OPERATOR'S MANUAL - Refer to your operator's manual for additional information, such as important operating and maintenance instructions.

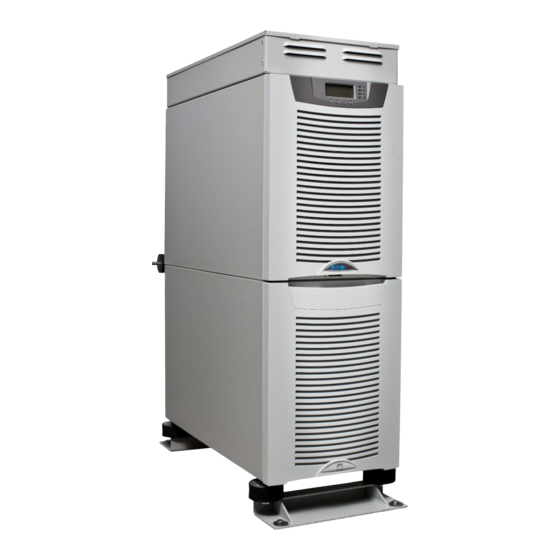

UPSs, each with a CAN Bridge Card and a parallel tie cabinet. Figure 1 shows the Powerware 9155 UPS and an optional Extended Battery Module (EBM). Figure 1. The Powerware 9155 UPS and EBM (2-High Cabinets Shown) EATON Powerware 164201592 C www.eaton.com/powerquality...
Proper disposal of batteries is required. Refer to your local codes for disposal requirements. Never dispose of batteries in a fire. Batteries may explode when exposed to flame. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 10
Une mise au rebut réglementaire des batteries est obligatoire. Consulter les règlements en vigueur dans votre localité. Ne jamais jeter les batteries au feu. L'exposition aux flammes risque de les faire exploser. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Es necesario desechar las baterías de un modo adecuado. Consulte las normas locales para conocer los requisitos pertinentes. Nunca deseche las baterías en el fuego. Las baterías pueden explotar si se las expone a la llama. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
NOTE Check the battery recharge date on the packaging label. If the date has expired and the batteries were never recharged, do not use the UPS. Contact your service representative. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
3-High UPS 3-High UPS with Isolation Transformer 2-High EBM 3-High EBM Clearances The following clearances are recommended for the Powerware 9155 UPS: From Front of Cabinet 36” (91.4 cm) working space From Back of Cabinet 6” (15.2 cm) EATON Powerware 164201592 C www.eaton.com/powerquality...
(see Figure 3). Retain the hardware for later use. NOTE Be sure to retain the stabilizing bracket and hardware for later re-assembly onto the cabinet. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 16
Reinstall the front cover removed in Step 3. Hang the top edge of the cover on the cabinet first, then lower the bottom edge and snap into place. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 17
With the cabinet supported, slowly pull the pallet away from the cabinet (see Figure 5). Figure 5. Removing the Pallet Roll the cabinet to the desired location. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Chapter 4 Parallel Installation The Powerware 9155 has the following power connections: 2‐phase (L1 and L2), neutral, and ground connection for rectifier/bypass input 2‐phase (L1 and L2), neutral, and ground connection for load output The nominal input/output voltages are: 100/200, 110/220, or 120/240 Vac with 180° phase displacement 120/208 or 127/220 Vac with 120°...
Page 20
Follow local requirements. NOTE To accommodate the feature of easy system expandability, it is recommended that initial installation of the Powerware 9155 UPS contain wiring to support the maximum capacity of the UPS cabinet. Switch off utility power to the distribution point where the parallel tie cabinet and UPSs will be connected.
Page 21
Parallel Cabinet Figure 6. Parallel Tie Cabinet Front Cover Remove the internal cover to gain access to the breakers (see Figure 7). Internal Cover Figure 7. Internal Cover EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 22
Verify that the parallel bypass breaker is in the OFF position (see Figure 8). Mount the parallel tie cabinet to the wall and install the conduit. Figure 8. Parallel Bypass Breaker EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 23
12. Hardwire the UPS input terminations (TB1‐1 through TB1‐5) for each UPS. See Table 2 for specifications and Figure 10 for a detailed view of the UPS terminal block. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 24
*Use only 75°C-rated copper wire. Minimum wire size is based on 120/208 full load ratings applied to NEC Code Table 310‐16. Input Output Figure 10. UPS Terminal Block EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 25
Line 2 UPS 1 Line 2 Line 1 UPS 3 Line 2 Figure 11. UPS Output to Parallel Tie Cabinet Wiring 14. Replace each UPS wiring access cover. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 26
PARALLEL INSTALLATION 15. Hardwire the load to the parallel tie cabinet (see Figure 12). Line 1 Line 2 Neutral Figure 12. Load Connections EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 27
18. Reinstall the internal cover removed in Step 6. 19. Reinstall the parallel tie cabinet front cover removed in Step 5. 20. Continue to “Installing Options” on page 23. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
LanSafe Power Management Software, remote emergency power-off (REPO), relay output contacts, or programmable signal inputs, refer to the Powerware 9155 UPS (8–15 kVA) User's Guide. Figure 15 shows the location of the communication options and control terminals on the UPS.
Press and release the handle latch at the bottom of each cover and then lift the cover up and off the cabinet (see Figure 17). Figure 17. Removing the Front Covers EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 31
Pins 1 and 2; set the card for the middle UPS to Pins 2 and 3. Jumper J7 - Pins 2 and 3 Jumper J7 - Pins 1 and 2 Figure 18. Setting the CAN Bridge Card Jumper J7 (Side View) EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 32
Verify all CAN Bridge Card wiring is correct for proper operation. NOTE Signal Input 2 can still be used for building alarms; it is automatically rerouted to the CAN Bridge Card. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 34
With wire cutters, cut either side of the tab and twist down to remove the tab (see Figure 20). Figure 20. Removing Knockout Tabs 10. Route the cable(s) to the approximate location of the cover access holes. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 35
Be sure the cables fit in the access holes in the covers. Figure 21. Reinstalling the Front Covers 12. Continue to “Stabilizing the Cabinet” on page 31 to complete the parallel UPS installation. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Chapter 6 Stabilizing the Cabinet NOTE For seismic installations, you MUST order and install a Powerware 9155 UPS seismic kit; do not use the following instructions. NOTE For non-seismic installations, you MUST install the stabilizing bracket on all 3-high cabinets. The stabilizing bracket is optional for 2-high cabinets.
Page 38
“Extended Battery Module Installation” on page 35 to install optional EBMs. “Operation” on page 39 to start up the parallel UPS system. M4 Screws Figure 23. Stabilizing Bracket with One Cabinet EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 39
STABILIZING THE CABINET M4 Screws Figure 24. Stabilizing Bracket with Two Cabinets M4 Screws Figure 25. Stabilizing Bracket with Three Cabinets EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 40
STABILIZING THE CABINET EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Plug the EBM cable into the UPS battery connector. If additional EBMs are installed, plug the EBM cable of the second cabinet into the battery connector on the first EBM. Repeat for each additional EBM. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 43
NOTE After UPS startup, ensure maximum battery runtime by configuring the UPS for the correct number of EBMs (see page 49). Front Ground Strap Figure 27. Front Ground Strap Installation (2-High Cabinets Shown) EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Chapter 8 Operation This chapter contains information on how to use the Powerware 9155, including front panel operation, UPS startup and shutdown, and configuring the UPS for Extended Battery Modules (EBMs). Control Panel Functions The UPS has a four-button graphical LCD with backlight. It provides useful information about the UPS itself, load status, events, measurements, and settings (see Figure 28).
Display Functions As the default or after 15 minutes of inactivity, the LCD displays the selectable startup screen. The default is the Eaton Powerware logo and can be changed to the Mimic screen in the User Settings menu. The backlit LCD automatically dims after a long period of inactivity. Press any button to restore the screen.
Page 47
UPS Type / Part Number / Serial Number / Firmware / Display / CAN Bridge Turn UPS ON/OFF ON and OFF Options UPS Off / System On / System Off EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
<empty> Signal Input must be wired to the CAN Bridge Card (see Figure 19 on page 27). For more information, refer to “Programmable Signal Inputs” in the Powerware 9155 UPS (8–15 kVA) User's Guide. Serial Port Config Port: [X-Slot-1] [X-Slot-2/Serv]...
Page 49
Call modem: no Set Modem Init String ATZ0 Set Modem Call Command None Set Modem Communication Password None Start Screen Eaton Powerware logo Eaton Powerware logo Mimic screen User Password Enabled/Disabled Disabled If Enabled is selected, the password is USER. Audible Alarms...
Page 50
Site Wiring Fault Notice Enabled/Disabled Enabled Reset Custom Event Settings 0 through 32 Total: 0/32 Auto Output Configuration Enabled/Disabled Enabled for initial startup Disabled after initial startup EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
UPS. Remove the breaker tie from all battery circuit breakers. Switch all battery circuit breakers to the ON position. indicator stops flashing on each UPS. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 52
Use the button to scroll the desired option (either Redundant Mode or Capacity Mode). Press the button to save the setting. Press the button until the Eaton Powerware logo appears. Repeat Steps 6 and 7 for the remaining UPSs in the parallel system. EATON Powerware 164201592 C www.eaton.com/powerquality ®...
Page 53
15. From the UPS Status menu, select the Units on CAN Bus option and verify that all UPSs appear in the list. If all UPSs appear in the list, press the button until the Eaton Powerware logo appears. If any UPS is missing, verify the Powerware Hot Sync CAN Bridge Card connections and recheck the status from the UPS front panel.
Page 54
The UPS goes to Bypass mode for five seconds, and then the indicator illuminates. Each UPS should be in Normal mode. 19. Press the button until the Eaton Powerware logo appears. 20. Auto-calibrate the load (with 10% minimum load recommended): Using the button, scroll to the Settings menu and then press button twice to select the User Settings menu.
The UPS removes power to the parallel UPS system output. Press the button until the Eaton Powerware logo appears. If you want to completely remove power from the UPS, continue to the following section, “Individual UPS Shutdown,” to shut down each UPS.
Switch off utility power where the UPS is connected. If you are shutting down all the UPSs in a parallel system, repeat Steps 2 through 6 for each UPS then remove utility power. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
UPS stops beeping. The UPS goes to Bypass mode for five seconds, and then the indicator illuminates. Each UPS should be in Normal mode. 10. Press the button until the Eaton Powerware logo appears. EATON Powerware 164201592 C www.eaton.com/powerquality ®...
Bypass mode. Switch the bypass breaker on the parallel tie cabinet to the ON position. Switch the UPS breakers on the parallel tie cabinet to the OFF position. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Page 60
On the same UPS front panel, set the UPS to Normal mode: Press the button to select the Go to Normal Mode option. Each UPS should go to Normal mode. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Chapter 10 Troubleshooting The Powerware 9155 is designed for durable, automatic operation and also alerts you whenever potential operating problems may occur. Usually the alarms shown by the control panel do not mean that the output power is affected. Instead, they are preventive alarms intended to alert the user.
Page 62
If the condition persists, contact your backup time. service representative. Battery circuit breakers are in the OFF Switch all battery circuit breakers to the ON position. position. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Press any button on the front panel display to silence the alarm. If the alarm status changes, the alarm beeps again, overriding the previous alarm silencing. EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
Please have the following information ready when you call for service: Model number Serial number Firmware version number Date of failure or problem Symptoms of failure or problem Customer return address and contact information EATON Powerware 164201592 C www.eaton.com/powerquality ® 9155 Parallel UPS (8–15 kVA) User's Guide...
