Summary of Contents for Eaton UPS 9155 8-15 kVA

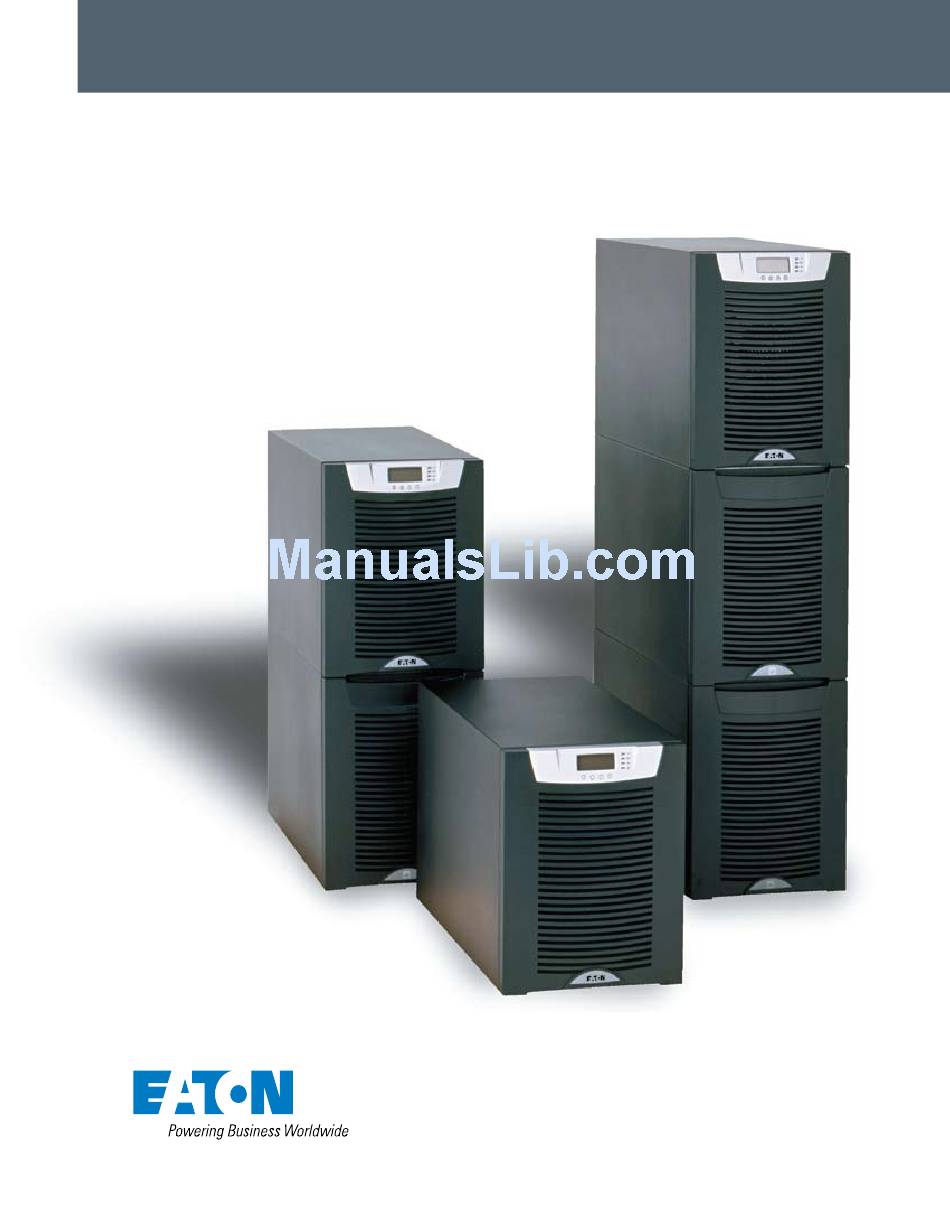

  • Page 1 Powerware series 8-15 kVA Eaton 9155 UPS...
  • Page 2: Product Introduction

    • Ensures data and system integrity with complete power management software for remote monitoring, management and shutdown • An Eaton factory limited warranty, technical support and optional service plans provide investment protection and peace of mind EATON CORPORATION...
  • Page 3 With raised-floor real estate at a premium, you’ll appreciate Eaton 9155 UPSs are available in four models: 8, 10, 12 that the 9155 requires only three to six square feet of floor and 15 kVA, so you can choose the configuration that most space, including internal batteries.
  • Page 4 And for more flexible power distribution, these maintenance the right combination of system uptime, convenience and bypass panels can be equipped with surge protection value. and provisions for 36 poles of distribution utilizing Eaton's Cutler-Hammer breakers. ® Proven warranty and support services Customers consistently rank Eaton services number one in quality.
  • Page 5 • Remote emergency power-off (REPO) Centralized control and visibility Easy network connectivity and monitoring The 9155 UPS is shipped with the Eaton Software Suite CD. The software suite includes the following applications, ConnectUPS-X card as well as a user-friendly wizard to guide users through...
  • Page 6 Eaton 9155 at-a-glance Model Selection Table - Eaton 9155 UPS (8–15 kVA) Power Rating Input & Output Dimensions Unit Order Number Description (kVA/kW) Connection Output Receptacles H x W x D (in) Weight (lb) K4081100000 PW9155 Model 8 - 32 Battery (2-high) 8/7.2...
  • Page 7 Maintenance Bypass Module (MBM) BPE20MBB1A Wall-mounted Maintenance Bypass Module for 9155 21 x 14 x 6.75 Eaton 9155 Parallel System Start Up OSTUP9155P10CX 9155 8-10 kVA 2 or 3 Unit Parallel OSTUP9155P15CX 9155 12-15 kVA 2 or 3 Unit Parallel...
  • Page 8 Mexico & Central America: United Kingdom: 44.1753.608.700 Powerware Hot Sync, and X-Slot are trade 52.55.9000.5252 names, trademarks and/or service marks of Eaton Corporation or its subsidiaries and affiliates. All other trademarks are property of their respective owners. ©2010 Eaton Corporation All Rights Reserved...
