- Page 1 ® ® Eaton 9155 UPS Seismic Kit Installation Instructions p/n: 164201588 Revision D0...

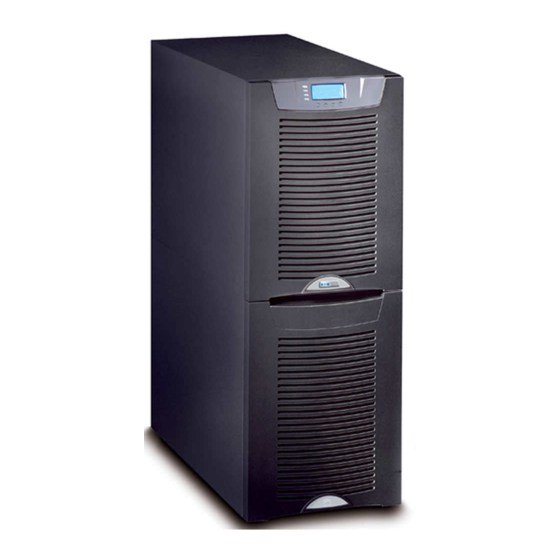

- Page 2 The Eaton ® 9155 seismic kit is rated for Zone 4 seismic installations and is available for 2-high and 3-high cabinets. Use these instructions to install seismic mounting brackets to secure the Uninterruptible Power Supply (UPS) to the facility floor.
- Page 3 Eaton ® 9155 UPS Seismic Kit Installation Instructions Seismic Kit Parts Tightening Hardware Torque 2-High 3-High Extension brackets Base supports Shims Used Top Support Bracket Eaton 9155 UPS Seismic Kit Installation Instructions 164201588—Rev D0...
- Page 4 Tilt and block the UPS to access the leveling feet on one side (see Figure Replace the two leveling feet with an M10 hex bolt, stop nut, and washer. Do not tighten. Discard the original leveling feet. Eaton 9155 UPS Seismic Kit Installation Instructions 164201588—Rev D0...
- Page 5 Repeat Steps 4 through 8 for the other side. Adjust the seismic leveling feet so the cabinet rests firmly on the floor. 10. Place both hold-down brackets across the top of the cabinet (see Figure Eaton 9155 UPS Seismic Kit Installation Instructions 164201588—Rev D0...
- Page 6 For 2-high cabinets only. Install a shim to the inside outer edge of each hold-down bracket. 13. Loosely secure the outside edges of the base supports using three M6 bolts. Do not tighten the bolts. Eaton 9155 UPS Seismic Kit Installation Instructions 164201588—Rev D0...
- Page 7 14. Install support brackets on each side using six M6 bolts (see Figure 6 for 2-high cabinets or Figure 7 for 3- high cabinets). Do not tighten the bolts. Figure 6. Installing Support Brackets (2-High) Eaton 9155 UPS Seismic Kit Installation Instructions 164201588—Rev D0...
- Page 8 9155 UPS Seismic Kit Installation Instructions Figure 7. Installing Support Brackets (3-High) 15. Install the top support bracket using ten M6 bolts (see Figure 8). Tighten the bolts. Figure 8. Installing the Top Support Bracket Eaton 9155 UPS Seismic Kit Installation Instructions 164201588—Rev D0...
- Page 9 Figure 9. Securing the Base 18. Bolt the seismic kit to the floor using customer supplied hardware (6 bolts on each side, see Figure 10). Figure 10. Bolting the Seismic Kit to the Floor Eaton 9155 UPS Seismic Kit Installation Instructions 164201588—Rev D0...
- Page 10 • Customer return address and contact information Eaton is a registered trademark of Eaton or its subsidiaries and affiliates. All other trademarks are property of their respective companies. ©Copyright 2008–2024 Eaton, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton.
