7.2 Accessing the Main Board

7.3 Connections

SW1 On/Off Switch
J1 Power Supply
JP6 USB
CN1 Printhead
CN2 Printhead
JP3 Centronics
JP13 Lower Label Gap
Sensor/Black Mark Sensor
JP10 Upper Label Gap Sensor
JP7 Ribbon End Sensor
Printhead GND
JP9 Feed Switch/LED
JP4 RS 232
Intermec EasyCoder PC4—Service Manual
The main board is fitted with a single screw to the bottom of the base
frame (see Chapter 5.2). Remove the screw and disconnect the cables as
required. When the printer is assembled, the main board is supported by
mouldings extending both from the base frame and from the bottom cover.
Always disconnect the power supply and take precautions against elec-
trostatic discharges before touching the main board.

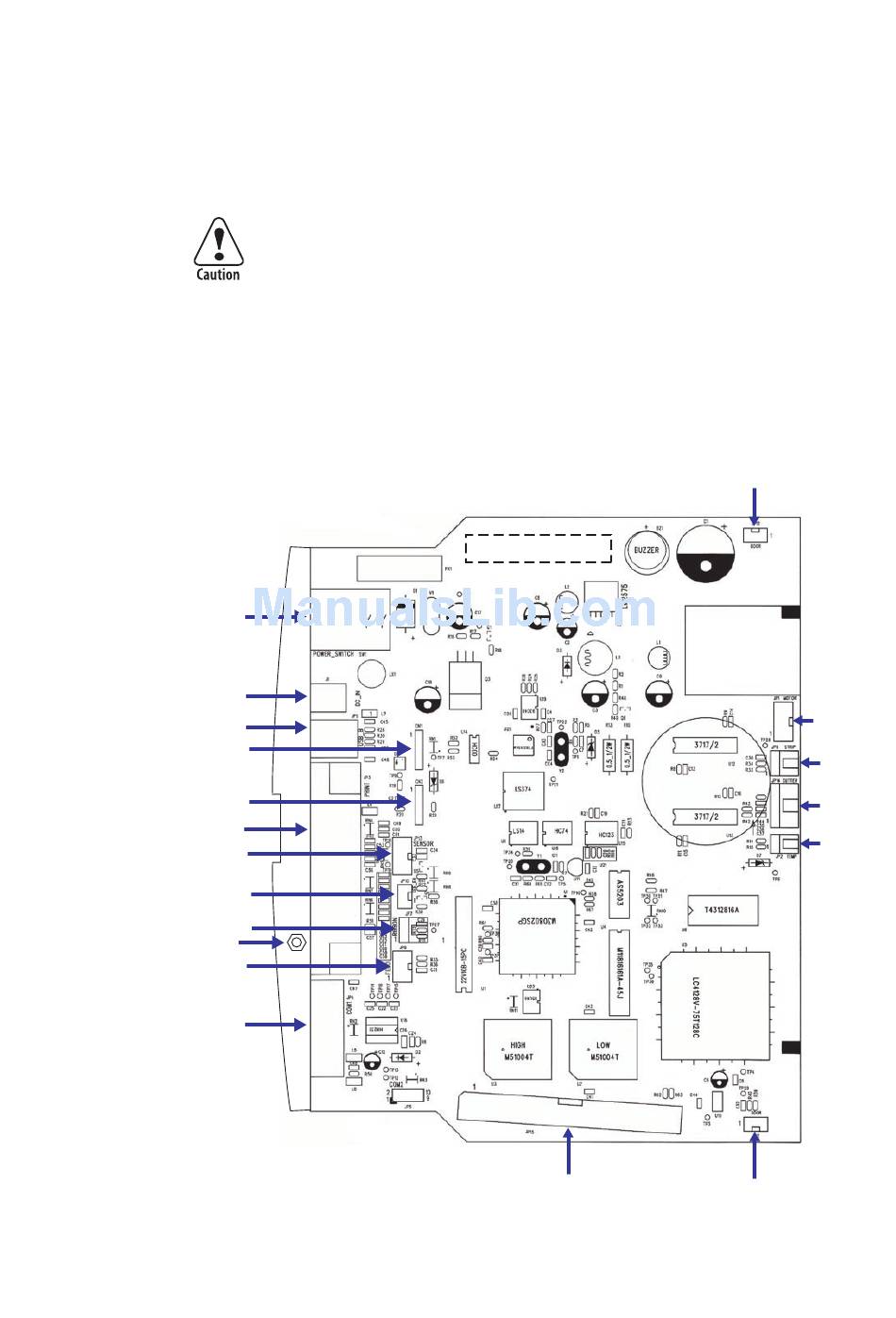

This simplified illustration shows where the various cables are connected to
the main board.
PRODUCT/REV. NO.
JP15 Memory Cartridge
Chapter 7—Main Board
JP12 Headlift (right)
JP1 Motor
JP8 LTS
JP14 Cutter
JP2 Thermistor
JP11 Headlift (left)
