Chapter 5—Base Frame

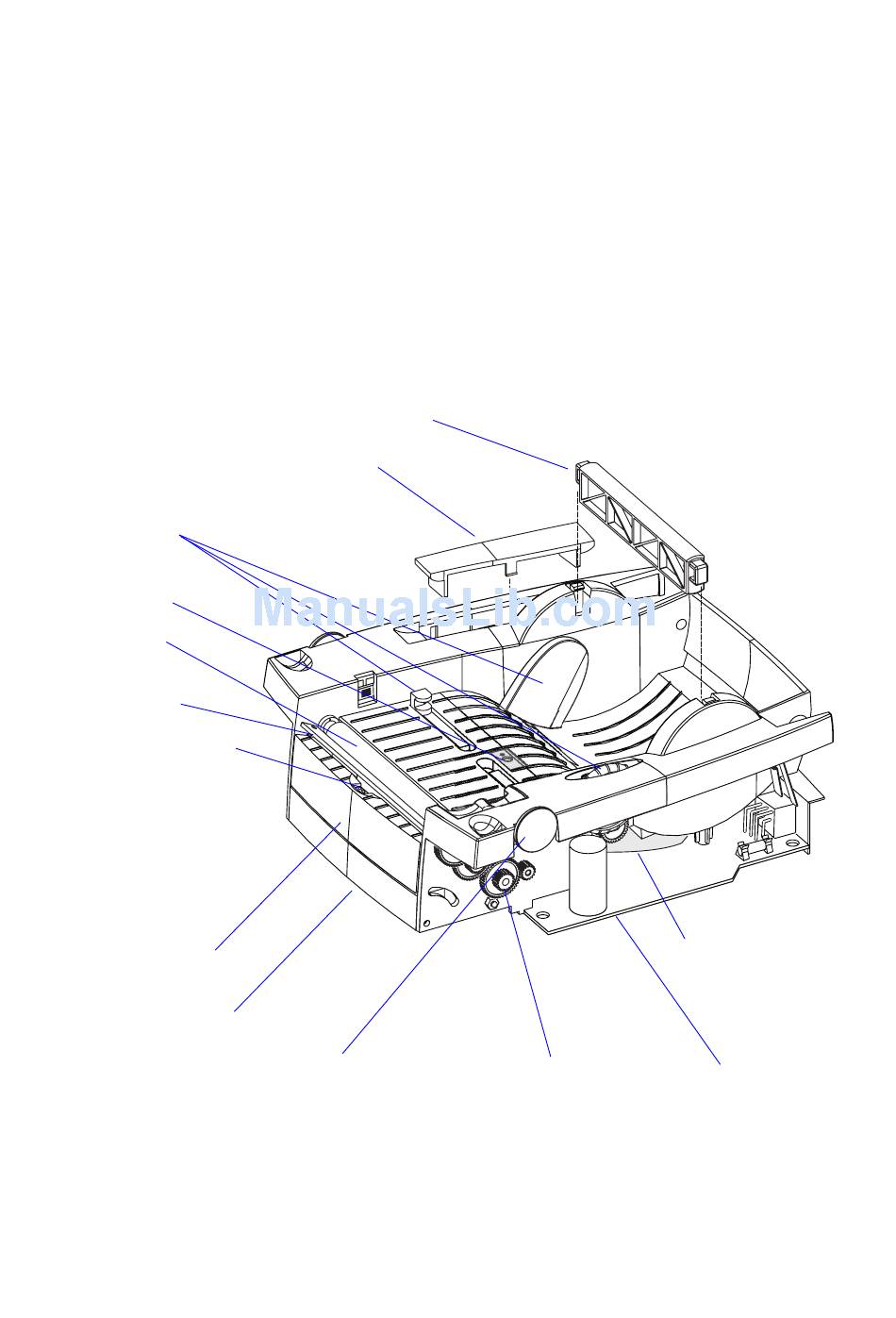

5.1 Main Parts

Memory cartridge blind plate
Media guide assy
Black mark/
Label gap sensor
Platen roller
Peel-off bar
Label taken sensor
Peel-off mechanism
(or Paper cutter)
Base frame moulding
34
The base frame consists of a plastic moulding to which a number of assem-
blies are fitted. The same base frame is used for both the DT and the TTR
models of the EasyCoder PC4.
Note that the 203.2 dpi (8 dots/mm) and the 300 dpi (11.81 dots/mm)
printers not only have different firmware versions and printheads, but also
different types of stepper motors. Thus, modifications of printing density
are not intended.
The optional paper cutter is normally factory-fitted, but could be field-
installed by an authorized service technician (see EasyCoder PC4 Cutter,
Installation Instructions). It replaces the standard peel-off mechanism.
Media spindle
Base lock assy
Dust protection
sheet
Motor assy
Intermec EasyCoder PC4—Service Manual
Main board
