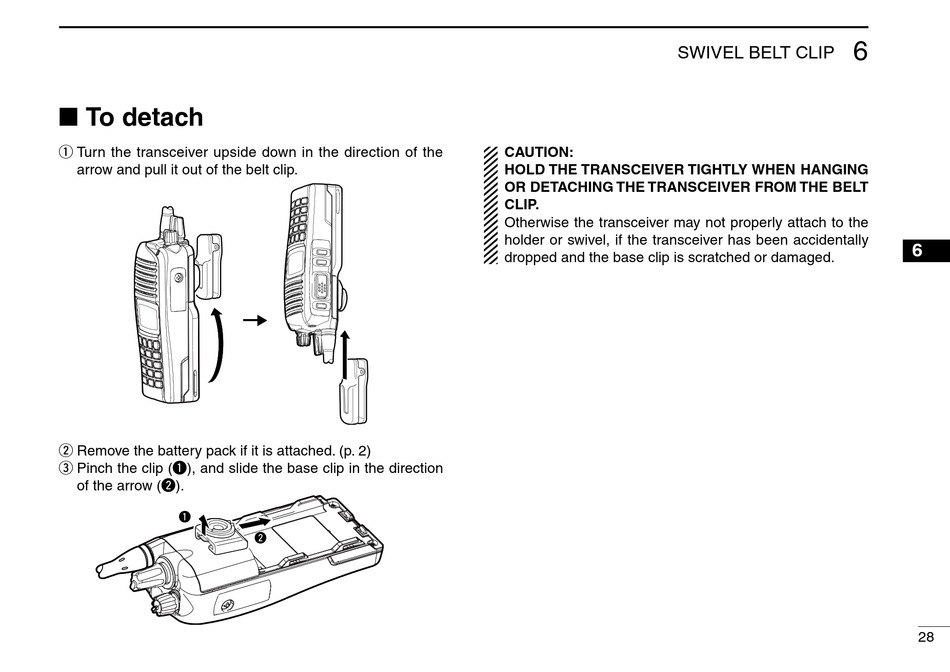

To detach

■
q Turn the transceiver upside down in the direction of the
arrow and pull it out of the belt clip.
w Remove the battery pack if it is attached. (p. 2)
e Pinch the clip (q), and slide the base clip in the direction
of the arrow (w).
q
w
SWIVEL BELT CLIP
CAUTION:
HOLD THE TRANSCEIVER TIGHTLY WHEN HANGING
OR DETACHING THE TRANSCEIVER FROM THE BELT
CLIP.
Otherwise the transceiver may not properly attach to the
holder or swivel, if the transceiver has been accidentally
dropped and the base clip is scratched or damaged.
