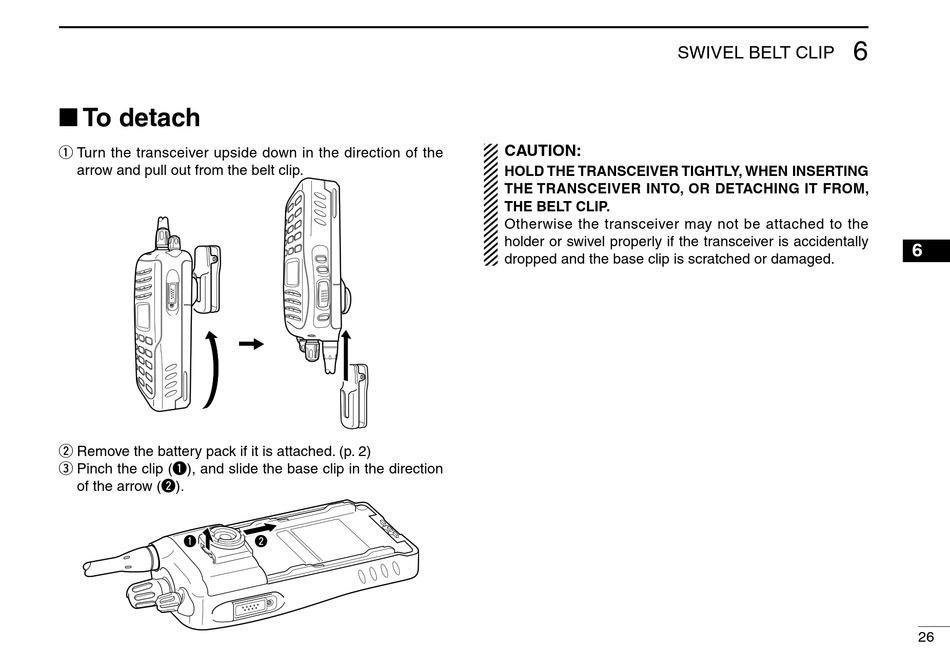

■ To detach

q Turn the transceiver upside down in the direction of the
arrow and pull out from the belt clip.
w Remove the battery pack if it is attached. (p. 2)
e Pinch the clip (q), and slide the base clip in the direction
of the arrow (w).
q w
SWIVEL BELT CLIP
CAUTION:
HOLD THE TRANSCEIVER TIGHTLY, WHEN INSERTING
THE TRANSCEIVER INTO, OR DETACHING IT FROM,
THE BELT CLIP.
Otherwise the transceiver may not be attached to the
holder or swivel properly if the transceiver is accidentally
dropped and the base clip is scratched or damaged.
