IPPBX IP4G User Manual

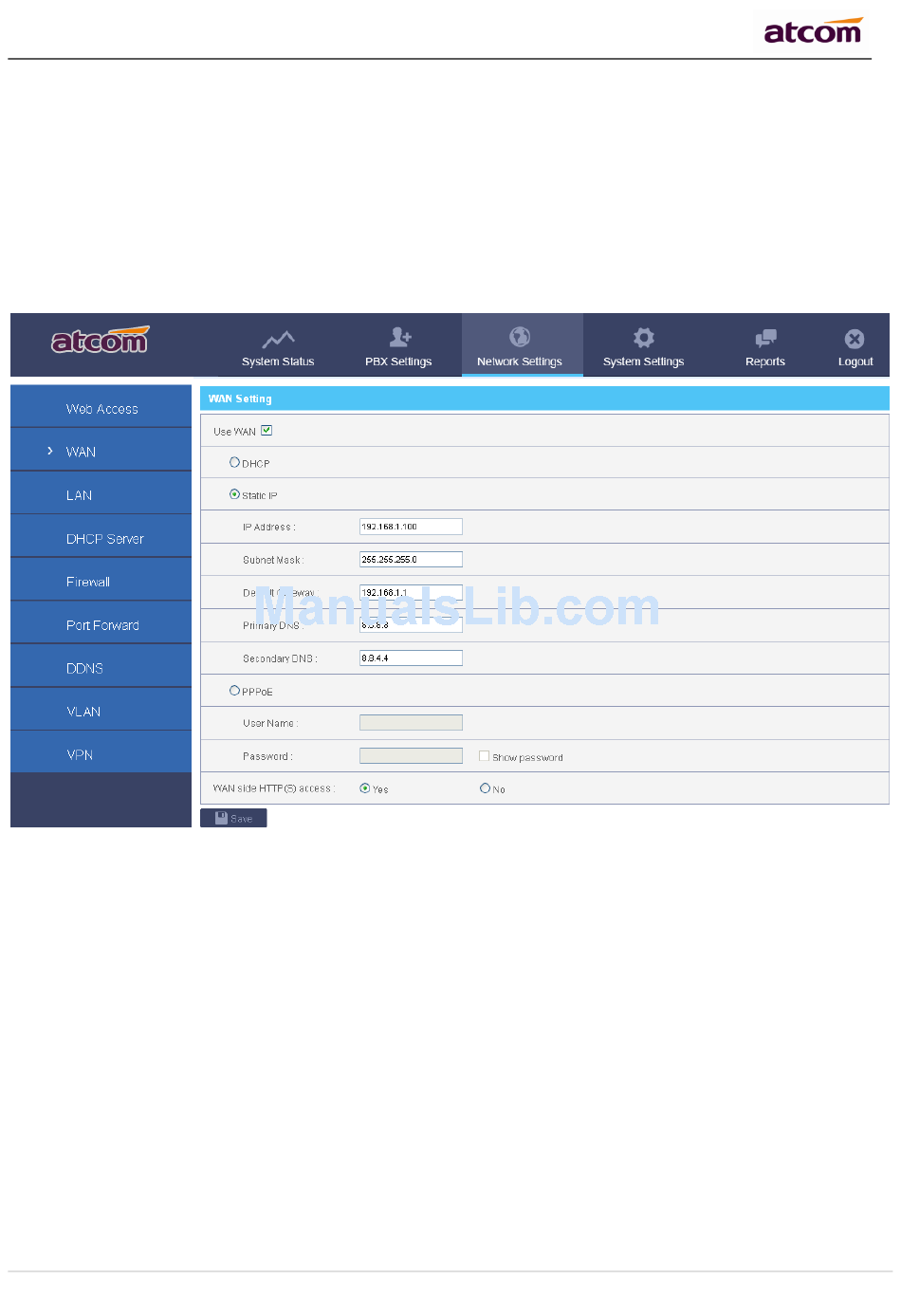

Static IP
Set an IP address manually according to the real network environment. If IPPBX is behind a router, the gateway
is usually set to the IP of the router.
PPPoE
IPPBX will obtain an IP address automatically after establishing a connection to PPPoE server with username
and password.

2.3 LAN Settings

DHCP
Yes: IPPBX will get an IP address from DHCP server, Not recommended.
No: Configure IP address manually for LAN. Default is NO.
NAT
Yes: IPPBX will act as a router, all the devices connected to LAN can access the network connected to WAN.
Default is Yes.
No: Networks connected to LAN and WAN are independent.
NOTE: IP addresses of LAN and WAN can't be in the same network.
For example: IP of WAN is 192.168.1.100/255.255.255.0, IP of LAN can't be 192.168.1.xx/255.255.255.0
Hostname
