Connecting the 850

To connect the 850 as illustrated in the example in
1. Connect the DP OUT connector to a DisplayPort acceptor (for example, a
flat panel LCD display).
2. Optional—connect a PC to control the 850 via the RS-232 or USB port.
3. Connect the power adapter to the 5V DC socket and to the mains electricity.

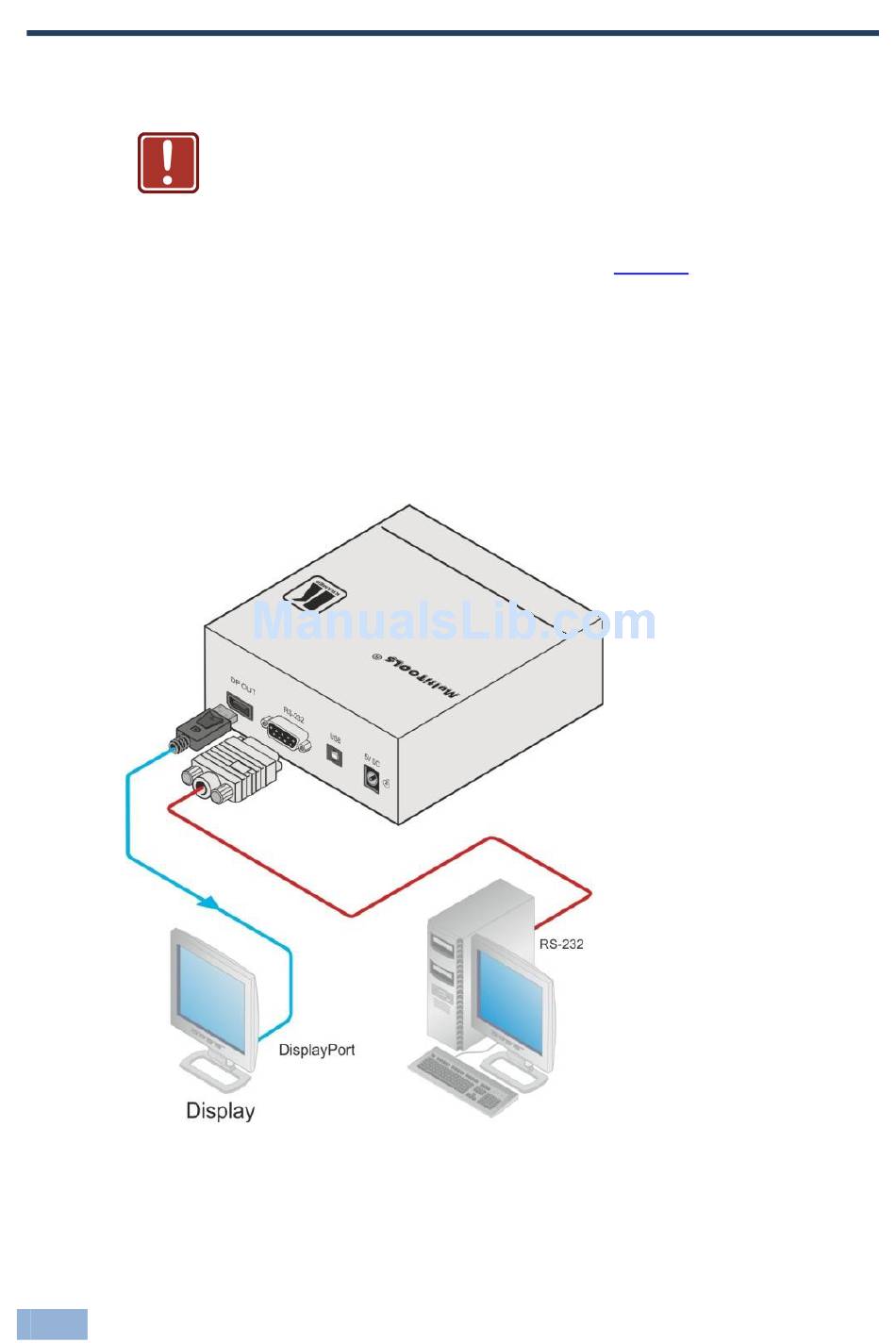

Figure 3: Connecting the 850 Pattern Generator

6
Always switch off the power to any device before connecting it to your
850. After connecting your 850, connect its power and then switch on
the power to the device.
Figure 3:
850 - Connecting the 850
