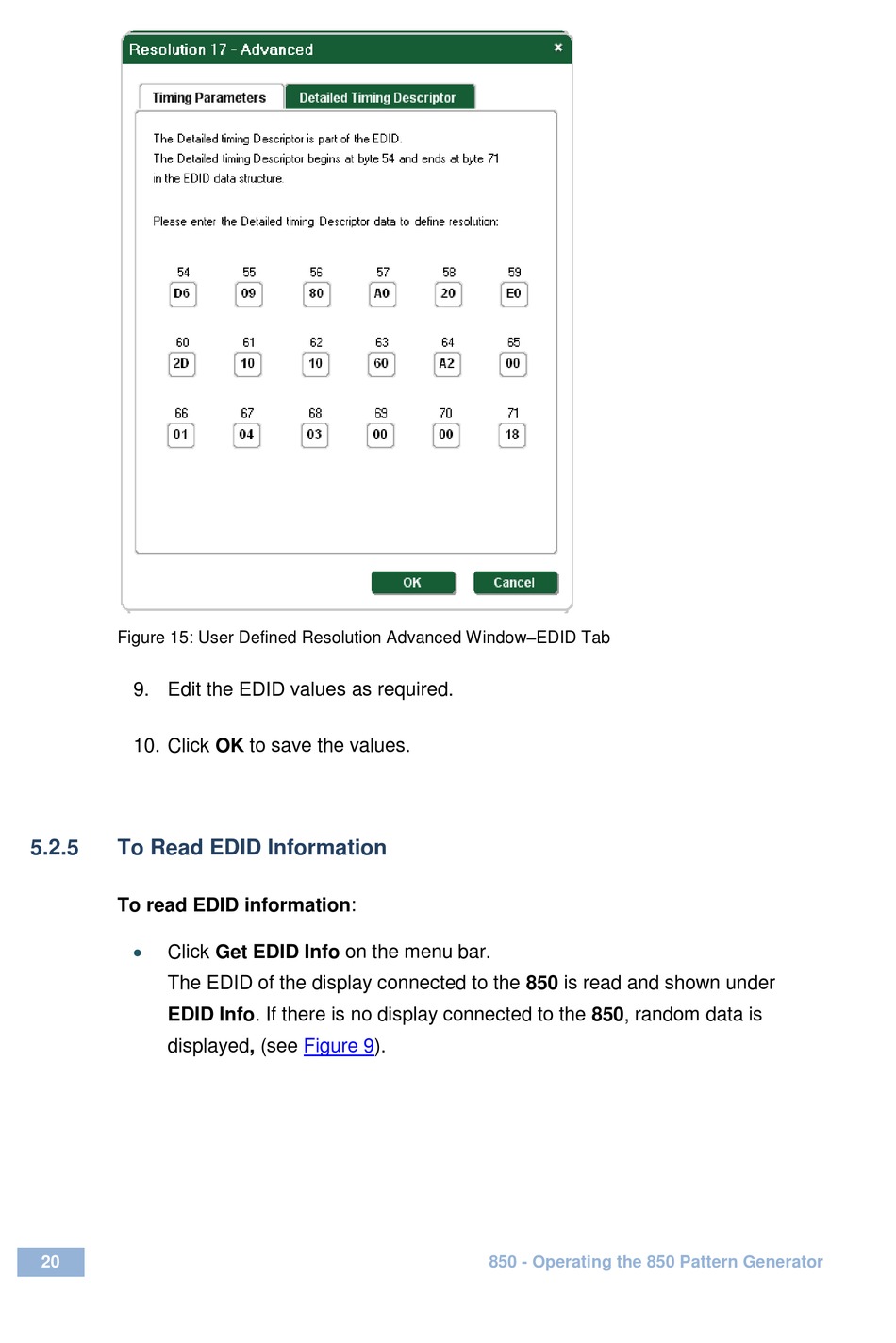

Figure 15: User Defined Resolution Advanced Window-Edid Tab - Kramer MultiTOOLS 850 User Manual

Figure 15: User Defined Resolution Advanced Window–EDID Tab
9. Edit the EDID values as required.
10. Click OK to save the values.
5.2.5 To Read EDID Information
To read EDID information:

Click Get EDID Info on the menu bar.
The EDID of the display connected to the 850 is read and shown under
EDID Info. If there is no display connected to the 850, random data is
displayed, (see
20
Figure 9).
850 - Operating the 850 Pattern Generator
