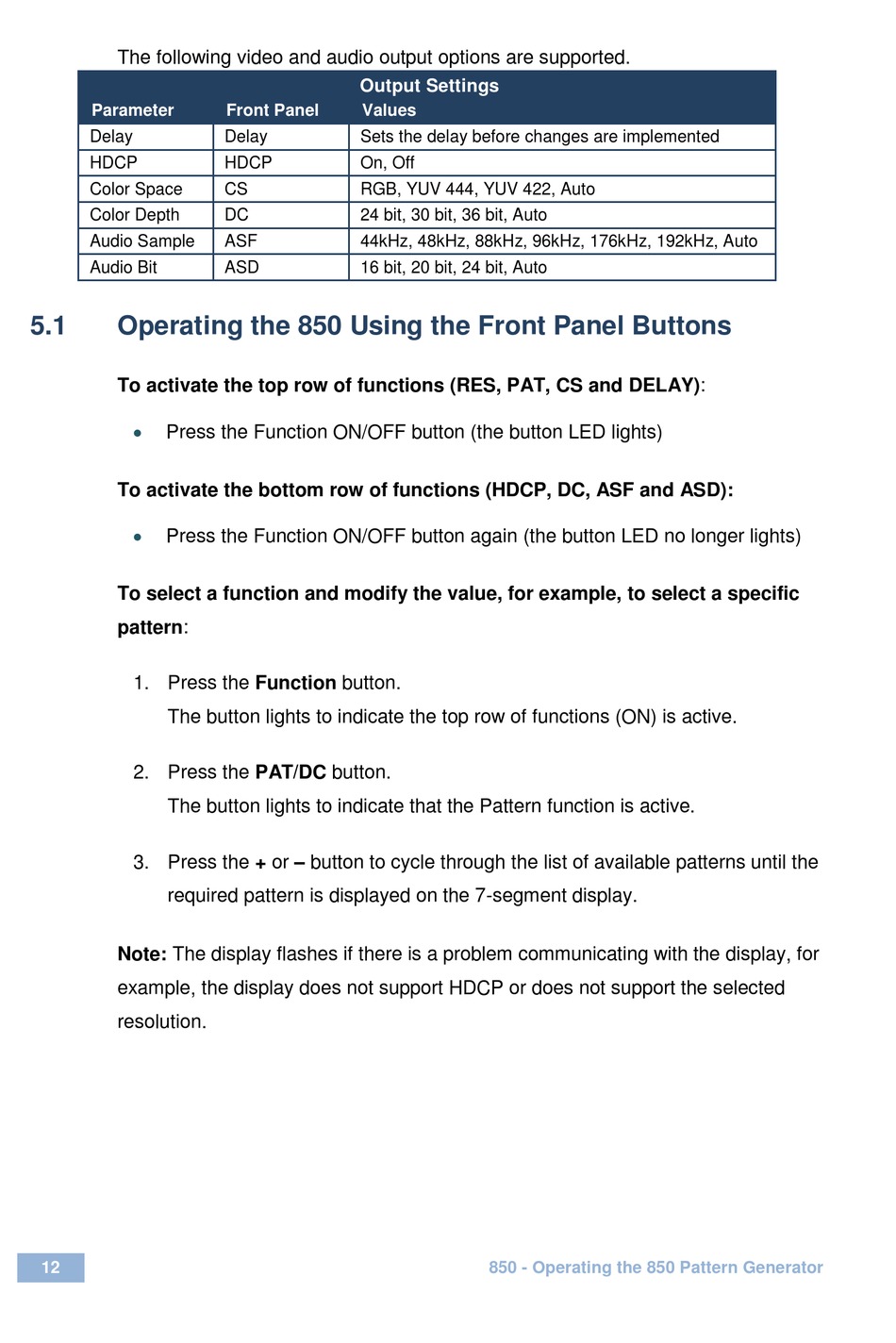

The following video and audio output options are supported.
Parameter
Delay
HDCP
Color Space
Color Depth
Audio Sample
Audio Bit
5.1

Operating the 850 Using the Front Panel Buttons

To activate the top row of functions (RES, PAT, CS and DELAY):

Press the Function ON/OFF button (the button LED lights)
To activate the bottom row of functions (HDCP, DC, ASF and ASD):

Press the Function ON/OFF button again (the button LED no longer lights)
To select a function and modify the value, for example, to select a specific
pattern:
1. Press the Function button.
The button lights to indicate the top row of functions (ON) is active.
2. Press the PAT/DC button.
The button lights to indicate that the Pattern function is active.
3. Press the + or – button to cycle through the list of available patterns until the
required pattern is displayed on the 7-segment display.
Note: The display flashes if there is a problem communicating with the display, for
example, the display does not support HDCP or does not support the selected
resolution.
12
Output Settings
Front Panel Values
Delay Sets the delay before changes are implemented
HDCP On, Off
CS RGB, YUV 444, YUV 422, Auto
DC 24 bit, 30 bit, 36 bit, Auto
ASF 44kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz, Auto
ASD 16 bit, 20 bit, 24 bit, Auto
850 - Operating the 850 Pattern Generator
