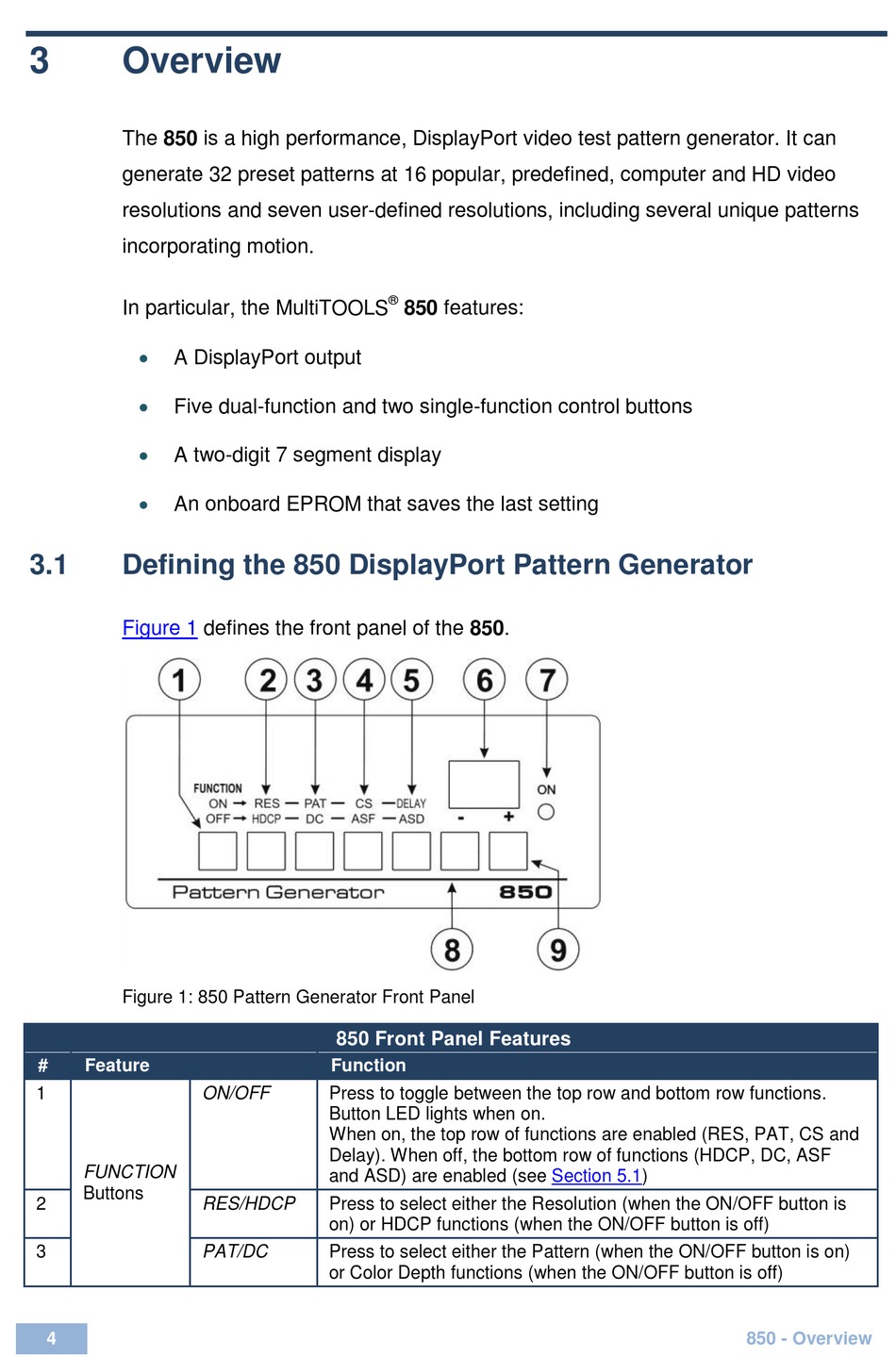

Overview

The 850 is a high performance, DisplayPort video test pattern generator. It can
generate 32 preset patterns at 16 popular, predefined, computer and HD video
resolutions and seven user-defined resolutions, including several unique patterns
incorporating motion.
In particular, the MultiTOOLS

A DisplayPort output

Five dual-function and two single-function control buttons

A two-digit 7 segment display

An onboard EPROM that saves the last setting
3.1

Defining the 850 DisplayPort Pattern Generator

Figure 1

Figure 1: 850 Pattern Generator Front Panel

# Feature
1
FUNCTION
Buttons
2
3
4
defines the front panel of the 850.
850 Front Panel Features
Function
ON/OFF Press to toggle between the top row and bottom row functions.
Button LED lights when on.
When on, the top row of functions are enabled (RES, PAT, CS and
Delay). When off, the bottom row of functions (HDCP, DC, ASF
and ASD) are enabled (see
RES/HDCP Press to select either the Resolution (when the ON/OFF button is
on) or HDCP functions (when the ON/OFF button is off)
PAT/DC Press to select either the Pattern (when the ON/OFF button is on)
or Color Depth functions (when the ON/OFF button is off)
®
850 features:
Section 5.1)
