- Page 1 KR AMER ELECTRON ICS LT D. USER MANUAL MODEL: FC-46xl HDMI Audio De-Embedder P/N: 2900-000626 Rev 6...
-
Page 3: Table Of Contents
Defining EDID About HDMI Defining the FC-46xl Connecting the FC-46xl Technical Specifications Figures Figure 1: FC-46xl HDMI Audio De-Embedder Figure 2: Connecting the FC-46xl HDMI Audio De-Embedder FC-46xl – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Do not secure the cables in tight bundles or roll the slack into tight coils • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer FC-46xl away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Warning:... -
Page 6: Overview
HDMI input or from the HDMI output Audio Return channel to S/PDIF, TOSLINK® and analog audio outputs simultaneously. The FC-46xl lets you connect your HDMI source to an HDMI display and enjoy high-quality digital audio at the same time (for example, when using a high-quality AV receiver). -
Page 7: Defining Edid
(that is connected to the display’s source). The EDID enables the FC-46xl to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data. - Page 8 • Has the capacity to support existing high-definition video formats (720p, 1080i), standard definition formats such as NTSC or PAL, as well as 480p and 576p FC-46xl - Overview...
-
Page 9: Defining The Fc-46Xl

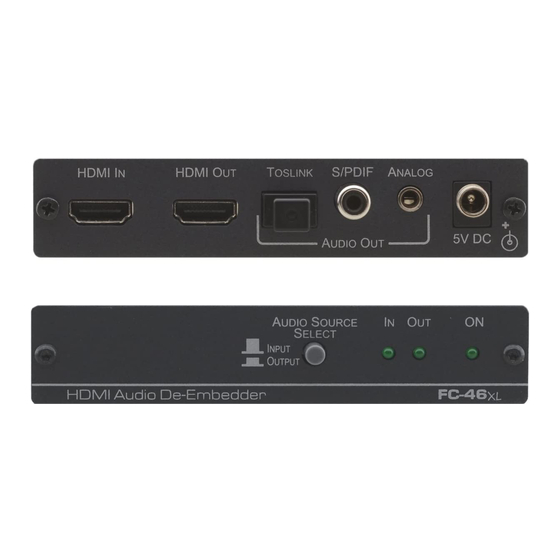

Defining the FC-46xl Figure 1 defines the FC-46xl HDMI Audio De-Embedder. Figure 1: FC-46xl HDMI Audio De-Embedder Feature Function AUDIO SOURCE INPUT Release to select audio from HDMI IN SELECT Button OUTPUT Press in to select audio from HDMI OUT TV audio... -
Page 10: Connecting The Fc-46Xl
Connecting the FC-46xl Always switch off the power to each device before connecting it to your FC-46xl. After connecting your FC-46xl, connect its power and then switch on the power to each device. To connect the FC-46xl as illustrated in the example in Figure 1. -
Page 11: Figure 2: Connecting The Fc-46Xl Hdmi Audio De-Embedder
Figure 2: Connecting the FC-46xl HDMI Audio De-Embedder FC-46xl - Connecting the FC-46xl... -
Page 12: Technical Specifications
12.4cm x 7cm x 2.4cm (4.9" x 2.8" x 0.94") W, D, H WEIGHT: 0.4kg (0.88lbs) approx. ACCESSORIES: Power supply OPTIONS: Kramer 10-Port Universal 5V Power Supply VA-100P-5 RK-3T 19” rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com FC-46xl - Technical Specifications... - Page 14 " " PN: 2900- 000626 Rev:...
