Summary of Contents for Kramer DigiTOOLS 840
- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: DVI Pattern Generator...
-
Page 2: Table Of Contents
Figure 1: 840 DVI Pattern Generator Figure 2: Connecting the 840 DVI Pattern Generator Tables Table 1: 840 DVI Pattern Generator Features Table 2: Selecting the DVI Output Resolutions Table 3: Pattern Number Definitions Table 4: Technical specifications of the 840 DVI Pattern Generator Contents... - Page 3 1 For example: model number AD2512C, part number 2535-000251 – No operator-serviceable parts inside unit. – Use only the Kramer Electronics input power – Disconnect power and unplug unit from wall 2900-9999992...
-
Page 4: Introduction
PC and a display device). It is now considered the industry standard digital graphics interface 3 As an option, you can purchase the Kramer VA-50P 6 Port Universal 12-Volt Power Supply, enabling you to supply power to up to 6 Kramer devices that require 12VDC 4 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html... -
Page 5: Your 840 Dvi Pattern Generator

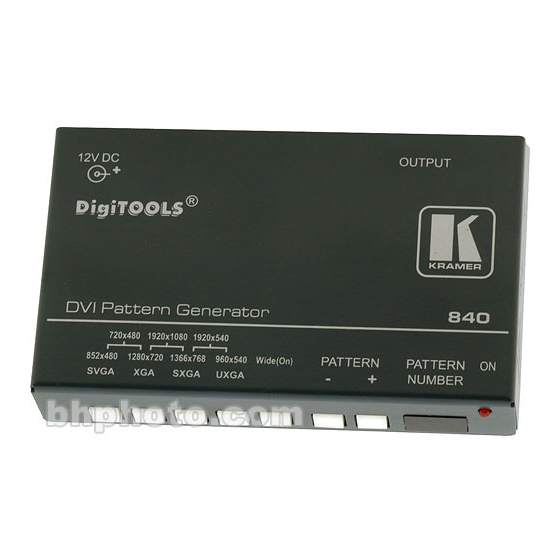

Kramer 840 away from moisture, excessive sunlight and dust Your 840 DVI Pattern Generator Figure 1 and Table 1 define the 840 DVI Pattern Generator (Table 2 summarizes how to select each DVI Output Resolution): Figure 1: 840 DVI Pattern Generator... -
Page 6: Table 1: 840 Dvi Pattern Generator Features
Table 1: 840 DVI Pattern Generator Features Feature Function 12V DC +12V DC connector for powering the unit OUTPUT DVI Connect to the DVI acceptor Connector SVGA Button Selects SVGA (800x600) when pressed. Selects 852x480 when pressed together with the Wide (On) button. Selects 720x480 when pressed together... -
Page 7: Using Your 840 Dvi Pattern Generator
Figure 2: Connecting the 840 DVI Pattern Generator 1 Switch OFF the power on the DVI acceptor before connecting it to your 840. After connecting your 840, switch on its power and then switch on the power on the DVI acceptor... -
Page 8: Operating Your 840 Dvi Pattern Generator
Using Your 840 DVI Pattern Generator 5.2 Operating Your 840 DVI Pattern Generator Several patterns (see Table 3) are programmed into the 840 DVI Pattern Generator, in order to assess various aspects in the flat panel LCD display, projector, Plasma screen or cable. For example, the 840 tests a:... -
Page 9: Interpreting Each Pattern Number Definition
Using Your 840 DVI Pattern Generator 5.3 Interpreting Each Pattern Number Definition Table 3 describes each of the 32 different Patterns: PATTERN NUMBER Table 3: Pattern Number Definitions DEFINITION Black screen 75% saturated color bar 100% saturated color bar Grayscale bar... -
Page 10: Technical Specifications
0.3kg. (0.66lbs.) ACCESSORIES: Power supply, mounting bracket 1 Specifications are subject to change without notice 2 On a DVI-I connector. Note that only the digital signal (DVI-D) is available on the DVI connector Technical Specifications of the 840 DVI Pattern Generator... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
