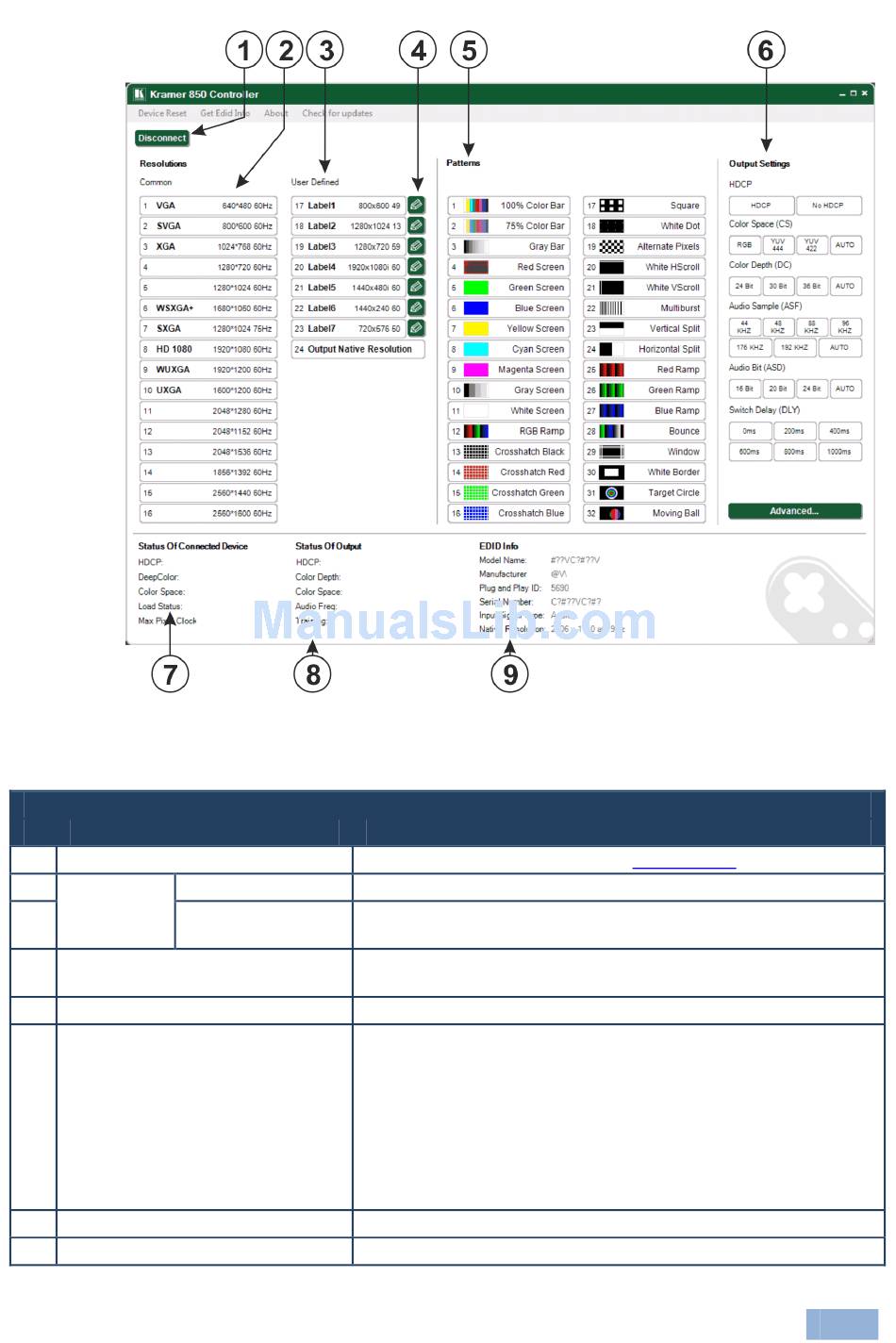

Figure 9: Controller Software Main Window

# Feature
1 CONNECT Button
2 COMMON Buttons
Resolutions
3 USER DEFINED
Buttons
4 User Defined Resolution Edit
Buttons
5 Patterns Buttons
6 Output Settings Buttons
7 Status of Connected Display
8 Status of Output
850 - Operating the 850 Pattern Generator
850 Controller Software Main Window
Function
Press to connect to a device (see
Press to select a pre-configured output resolution
Press to select a pre-configured output resolution
Press to edit the relevant user defined output resolution
Press to select an output pattern
Press to modify the output settings:
Delay—Sets the delay before changes are implemented
HDCP—HDCP, No HDCP
Color Space—RGB, YUV 444, YUV 422, Auto
Color Depth—24 bit, 30 bit, 36 bit, Auto
Audio Sample—44kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz,
Auto
Audio Bit—16 bit, 20 bit, 24 bit, Auto
Information on the currently connected display
Information on the currently selected output settings
Section 5.2.1)
