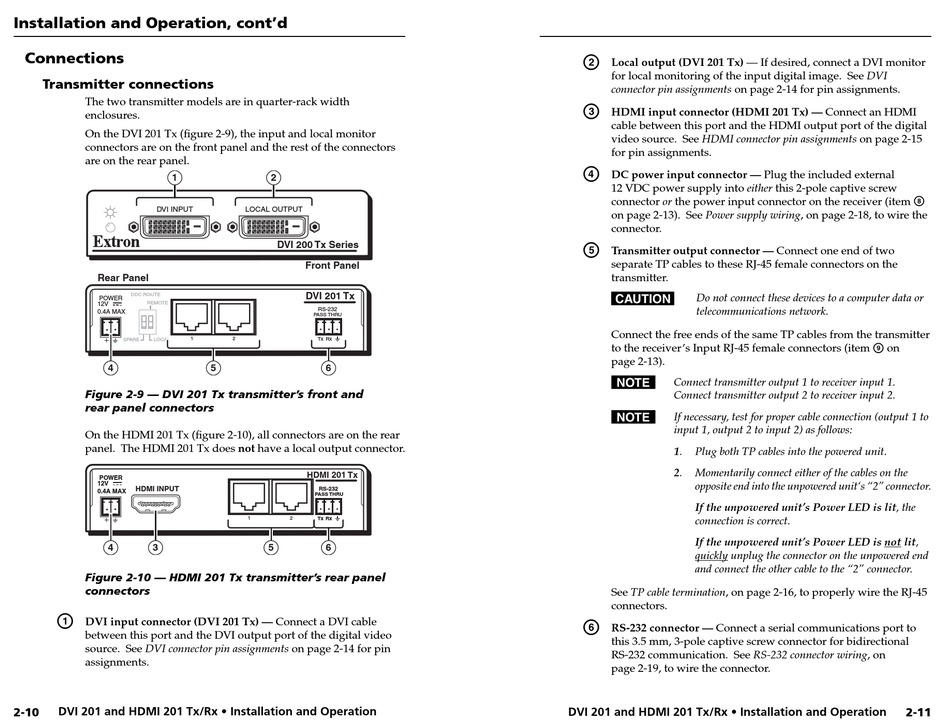

Connections

Transmitter connections
The two transmitter models are in quarter-rack width
enclosures.
On the DVI 201 Tx (fi gure 2-9), the input and local monitor
connectors are on the front panel and the rest of the connectors
are on the rear panel.
1
DVI INPUT
Rear Panel
DDC ROUTE
POWER
REMOTE
12V
0.4A MAX
1
SPARE LOCAL
4
Figure 2-9 — DVI 201 Tx transmitter's front and
rear panel connectors
On the HDMI 201 Tx (fi gure 2-10), all connectors are on the rear
panel. The HDMI 201 Tx does not have a local output connector.
POWER
12V
HDMI INPUT
0.4A MAX
4 3
Figure 2-10 — HDMI 201 Tx transmitter's rear panel
connectors
a
DVI input connector (DVI 201 Tx) — Connect a DVI cable
between this port and the DVI output port of the digital video
source. See DVI connector pin assignments on page 2-14 for pin
assignments.
2-10 DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2
LOCAL OUTPUT
DVI 200 Tx Series
Front Panel
DVI 201 Tx
RS-232
PASS THRU
2
Tx Rx
5 6
HDMI 201 Tx
RS-232
PASS THRU
1 2
Tx Rx
5 6
b
Local output (DVI 201 Tx) — If desired, connect a DVI monitor
for local monitoring of the input digital image. See DVI
connector pin assignments on page 2-14 for pin assignments.
c
HDMI input connector (HDMI 201 Tx) — Connect an HDMI
cable between this port and the HDMI output port of the digital
video source. See HDMI connector pin assignments on page 2-15
for pin assignments.
d
DC power input connector — Plug the included external
12 VDC power supply into either this 2-pole captive screw
connector or the power input connector on the receiver (item
on page 2-13). See Power supply wiring, on page 2-18, to wire the
connector.
e
Transmitter output connector — Connect one end of two
separate TP cables to these RJ-45 female connectors on the
transmitter.
C
Do not connect these devices to a computer data or
telecommunications network.
Connect the free ends of the same TP cables from the transmitter
to the receiver's Input RJ-45 female connectors (item
page 2-13).
N
Connect transmitter output 1 to receiver input 1.
Connect transmitter output 2 to receiver input 2.
N
If necessary, test for proper cable connection (output 1 to
input 1, output 2 to input 2) as follows:
1. Plug both TP cables into the powered unit.
2. Momentarily connect either of the cables on the
opposite end into the unpowered unit's "2" connector.
If the unpowered unit's Power LED is lit, the
connection is correct.
If the unpowered unit's Power LED is not lit,
quickly unplug the connector on the unpowered end
and connect the other cable to the "2" connector.
See TP cable termination, on page 2-16, to properly wire the RJ-45
connectors.
f
RS-232 connector — Connect a serial communications port to
this 3.5 mm, 3-pole captive screw connector for bidirectional
RS-232 communication. See RS-232 connector wiring, on
page 2-19, to wire the connector.
