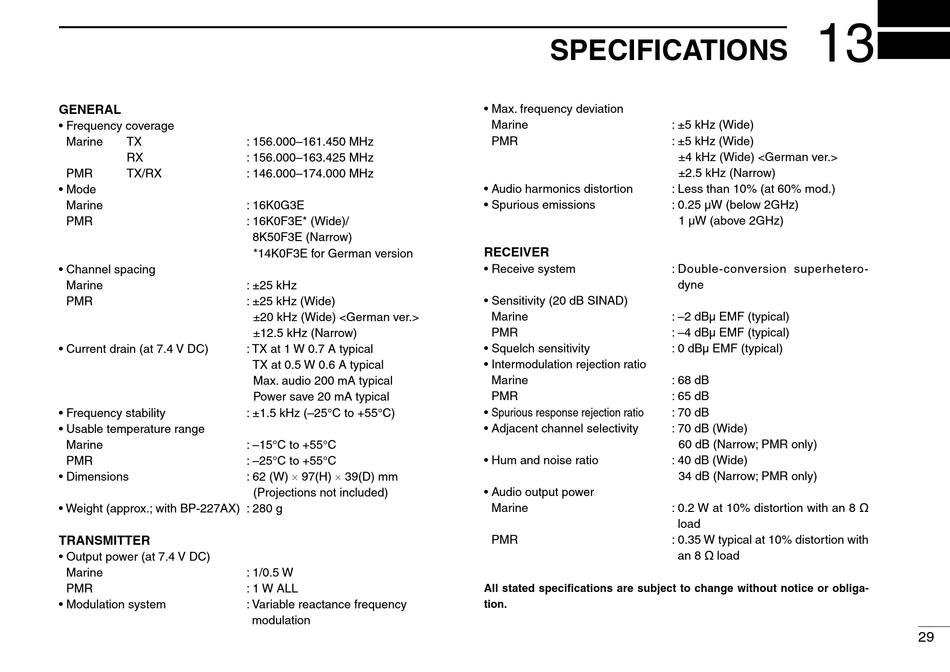

Specifications - Icom iM87 Instruction Manual

GENERAL
• Frequency coverage
Marine TX
RX
PMR TX/RX
• Mode
Marine
PMR
• Channel spacing
Marine
PMR
• Current drain (at 7.4 V DC)
• Frequency stability
• Usable temperature range
Marine
PMR
• Dimensions
• Weight (approx.; with BP-227AX) : 280 g
TRANSMITTER
• Output power (at 7.4 V DC)
Marine
PMR
• Modulation system
: 156.000–161.450 MHz
: 156.000–163.425 MHz
: 146.000–174.000 MHz
: 16K0G3E
: 16K0F3E* (Wide)/
8K50F3E (Narrow)
*14K0F3E for German version
: ±25 kHz
: ±25 kHz (Wide)
±20 kHz (Wide) <German ver.>
±12.5 kHz (Narrow)
: TX at 1 W 0.7 A typical
TX at 0.5 W 0.6 A typical
Max. audio 200 mA typical
Power save 20 mA typical
: ±1.5 kHz (–25°C to +55°C)
: –15°C to +55°C
: –25°C to +55°C
: 62 (W) × 97(H) × 39(D) mm
(Projections not included)
: 1/0.5 W
: 1 W ALL
: Variable reactance frequency
modulation

SPECIFICATIONS

• Max. frequency deviation
Marine
PMR
• Audio harmonics distortion
• Spurious emissions
RECEIVER
• Receive system
• Sensitivity (20 dB SINAD)
Marine
PMR
• Squelch sensitivity
• Intermodulation rejection ratio
Marine
PMR
• Spurious response rejection ratio
• Adjacent channel selectivity
• Hum and noise ratio
• Audio output power
Marine
PMR
All stated specifications are subject to change without notice or obliga-
tion.
13
: ±5 kHz (Wide)
: ±5 kHz (Wide)
±4 kHz (Wide) <German ver.>
±2.5 kHz (Narrow)
: Less than 10% (at 60% mod.)
: 0.25 µW (below 2GHz)
1 µW (above 2GHz)
: Double-conversion superhetero-
dyne
: –2 dBµ EMF (typical)
: –4 dBµ EMF (typical)
: 0 dBµ EMF (typical)
: 68 dB
: 65 dB
: 70 dB
: 70 dB (Wide)
60 dB (Narrow; PMR only)
: 40 dB (Wide)
34 dB (Narrow; PMR only)
: 0.2 W at 10% distortion with an 8 ø
load
: 0.35 W typical at 10% distortion with
an 8 ø load
