Optional Battery Chargers - Icom iM87 Instruction Manual

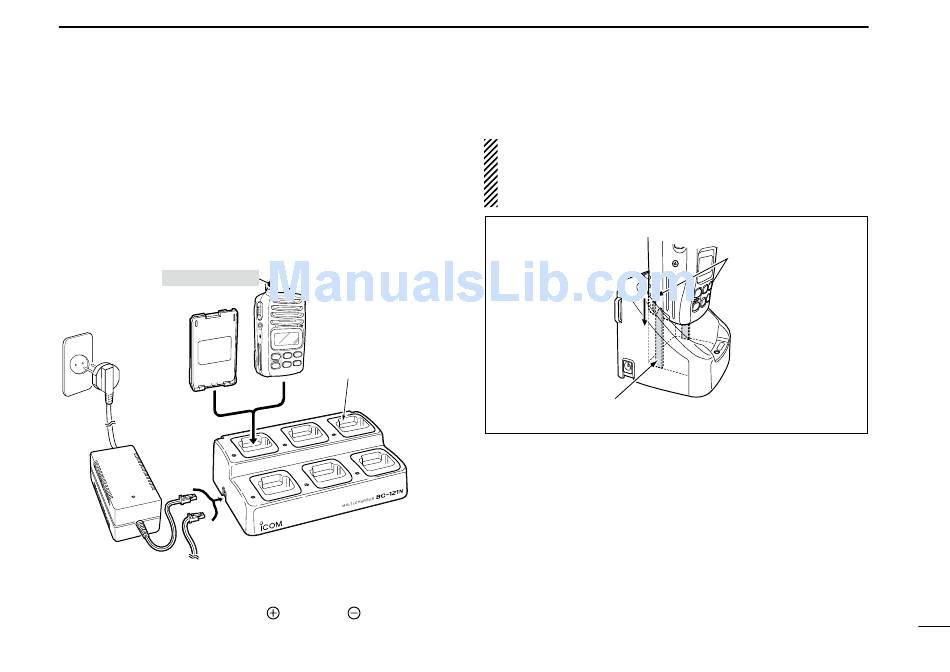

D Rapid charging with the BC-121N+AD-100
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally re-
quired.
• Six AD-100 charger adapters
• An AC adapter (BC-157) or the DC power cable OPC-656,
supplied with the BC-121N.
Turn power OFF
Battery pack
AC adapter
(purchased
separately)
DC power cable (OPC-656*)
(Connect with a DC power supply;
13.8 V/at least 7 A)
*About the OPC-656
Red line :
Transceiver
AD-100 charger
adapters are installed
in each slot.
Black line :
BATTERY CHARGING
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-152N.)
Guide rail
9
Tabs
25
