V i p e r s a t C o nf i g u r a t i o n

Vipersat Configuration

Entering V at the prompt from the CDD-56X Main Menu shown in figure 3-1
displays the Vipersat Configuration menu shown in figure 3-5.

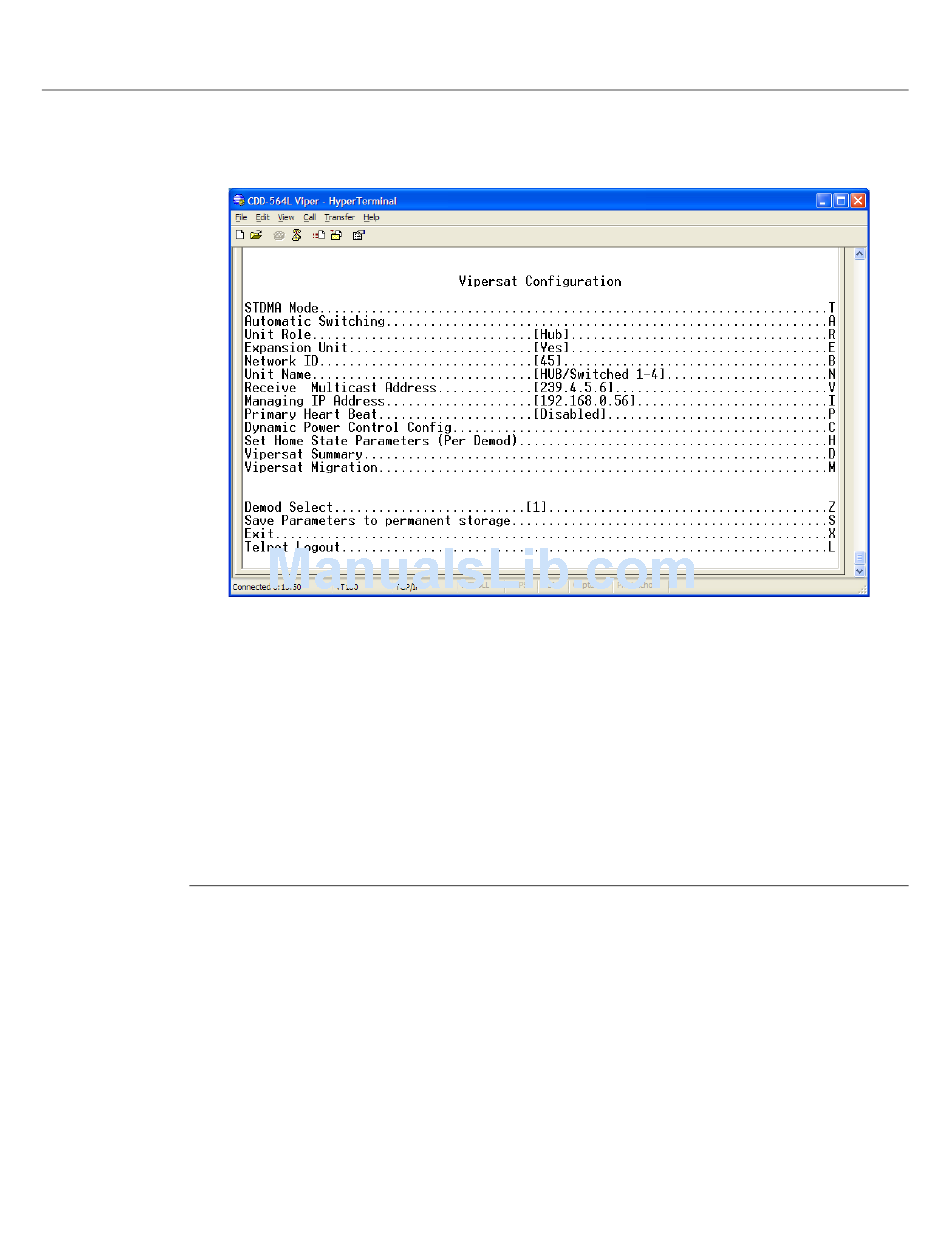

Figure 3-5
Vipersat Configuration screen (Hub)
This menu lists the available commands for configuring a Vipersat CDD-56X.
Note that for the Hub unit only, the command Primary Heart Beat is displayed
in the Vipersat Configuration screen. For the Remote unit only, the status of the
Home State Revert setting is displayed.
Each of these commands is explained in the following sections.

STDMA Mode

The STDMA Mode parameters for this CDD-56X are accessed by entering T at
the Vipersat Configuration screen command prompt.
The items in the STDMA menu will vary depending on the function the target
CDD-56X performs in the network. The STDMA screen shown in figure 3-6 is
from a CDD-56X serving as a Hub with STDMA in the network.
For comparison, the STDMA screen for a CDD-56X operating in SCPC mode
(either as a Hub expansion unit or as a Remote mesh unit) is shown in
figure 3-7. Note that many of the options available for a CDD-56X operating
with STDMA are not available when configured for SCPC. This is because
