V i p e r s a t C o nf i g u r a t i o n
When a Remote is removed from the group Burst Map, as described in the
section "Remove Timeout" above, entering a value in the Remove Retry Time-
out dialog defines the amount of time (in seconds) that is allowed to pass before
a retry attempt is made to return the removed Remote to the group. The Remote
is re-entered into the burst map cycle; if the Remote does not burst back (ACK)
to the Hub burst controller, it is again removed from the Burst Map.
This allows, again using a mobile Remote as an example, shutting down the
Remote at one location, moving it to a new location, and then automatically re-
establishing a connection to the satellite network.

STDMA Statistics

Entering V at the command prompt in the STDMA screen displays the STDMA
Statistics screen as shown in either figure 3-33 (Hub) or figure 3-34 (Remote).
Note that statistics will only be accumulated for a CDD-56X that is configured
as a Hub with No Expansion, since that is the only configuration that provides
STDMA functionality (on Demod 1). Because a Remote unit is SCPC mode
only, the STDMA Statistics screen will display all values as 0.

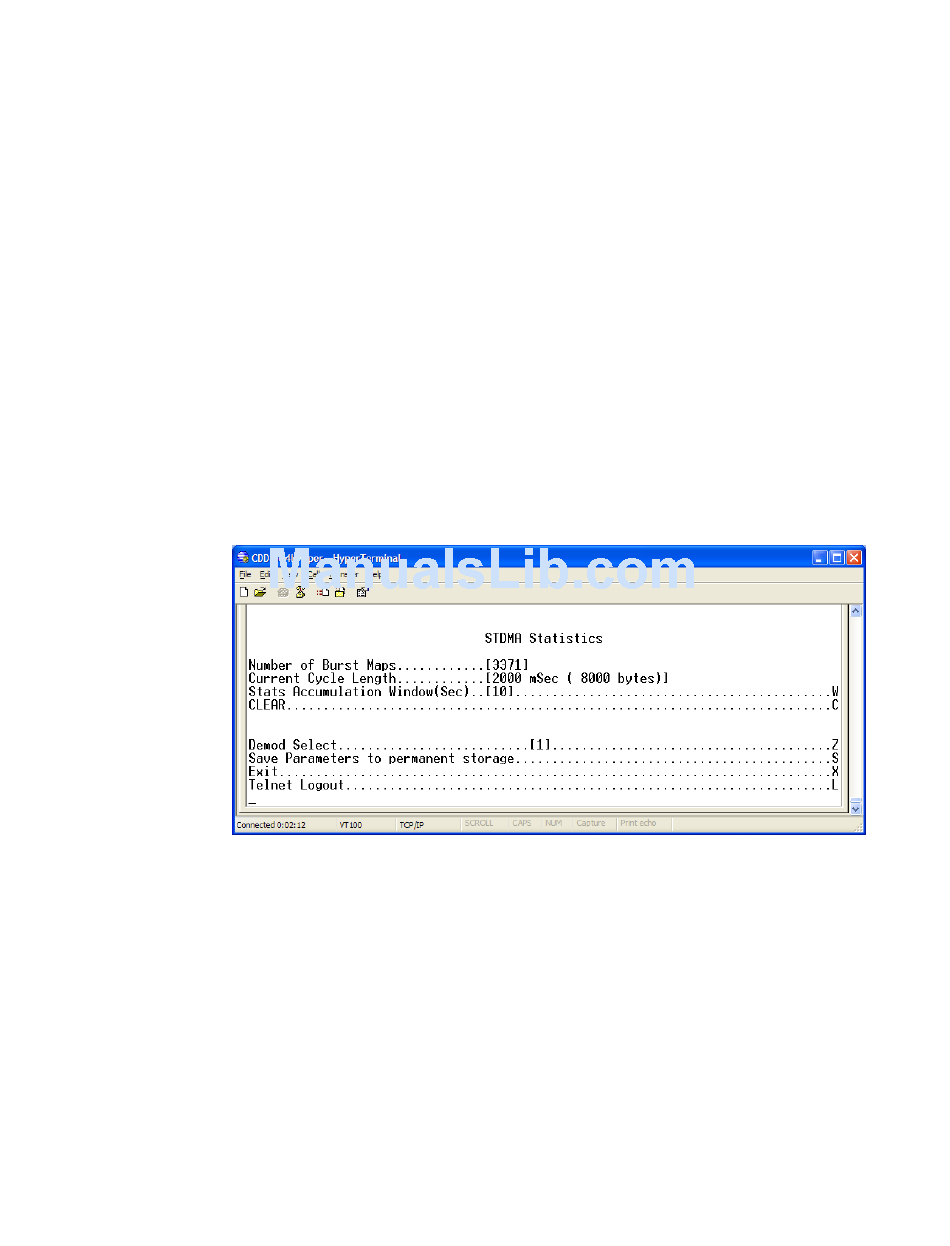

Figure 3-33 STDMA Statistics screen (Hub)
