Sim2 Multimedia SpA User Manual page 17

User 1, 2, 3
Should you wish to use a format different to those preset, go to
User menus.

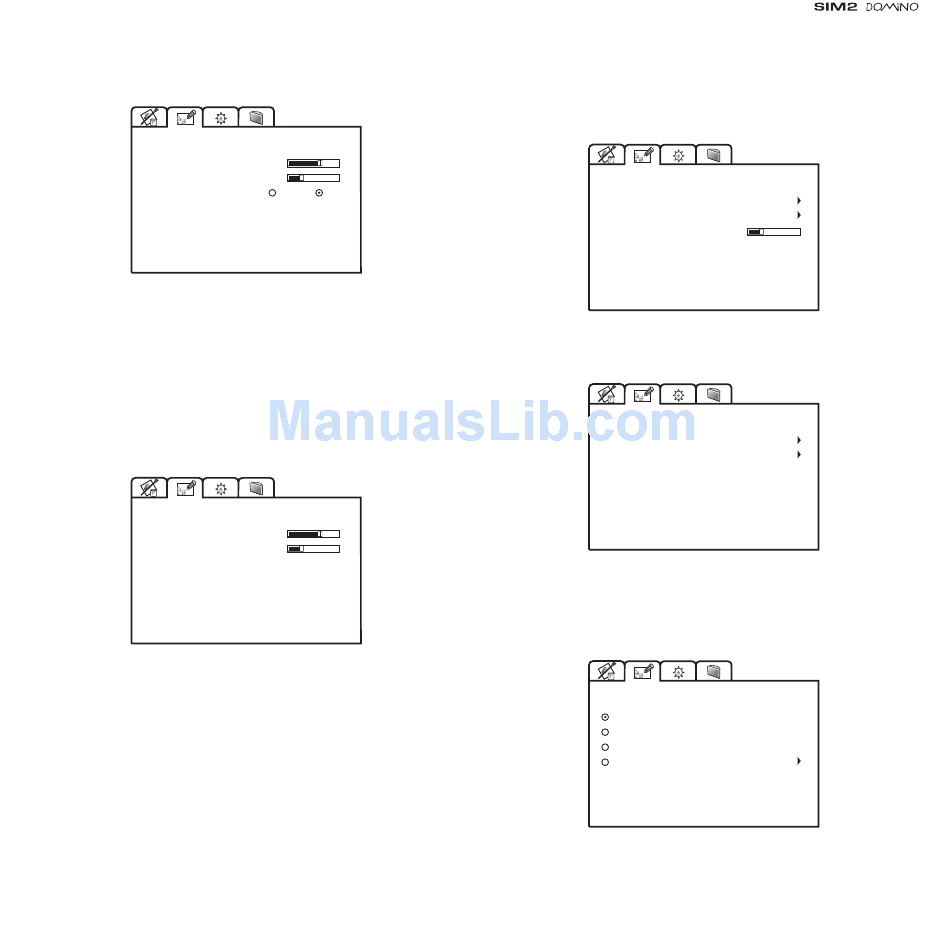

ASPECT / USER 1
HORIZONTAL
VERTICAL
SCREEN CONTROL
By using the Horizontal and Vertical adjustments it is
possible to select the screen shape of your choice. It is
important to keep the relation between height and width so
that the correct aspect ratio can be maintained.
FREQUENCY / PHASE
In the case of RGB graphic signals this adjustment is used for
synchronization of the RGB image to the number of pixels on
the display panel.
FREQUENCY / PHASE
FREQUENCY
PHASE
Frequency
The correct frequency adjustment eliminates vertical band
interference.
Phase
The phase adjustment determines the stability and sharpness
of the vertical lines in the projected image.
0
-10
On Off
1312
-12
RGB
ADVANCED SETTINGS
Advanced colour settings are accessible via this menu.
We recommend the use of these settings only to the
experienced user, as their adjustment can seriously affect final
image quality.
ADVANCED SETTINGS
COLOR TEMPERATURE
GAMMA CORRECTION
Y/C DELAY
ADVANCED SETTINGS
COLOR TEMPERATURE
GAMMA CORRECTION
Colour temperature
Select the colour temperature of the projected image.
COLOR TEMPERATURE
HIGH
MEDIUM
LOW
USER
There are three fixed colour temperature settings, which are:
High (9000÷9500 degrees K), Medium (about 6500 degrees)
2
VIDEO
RGB
