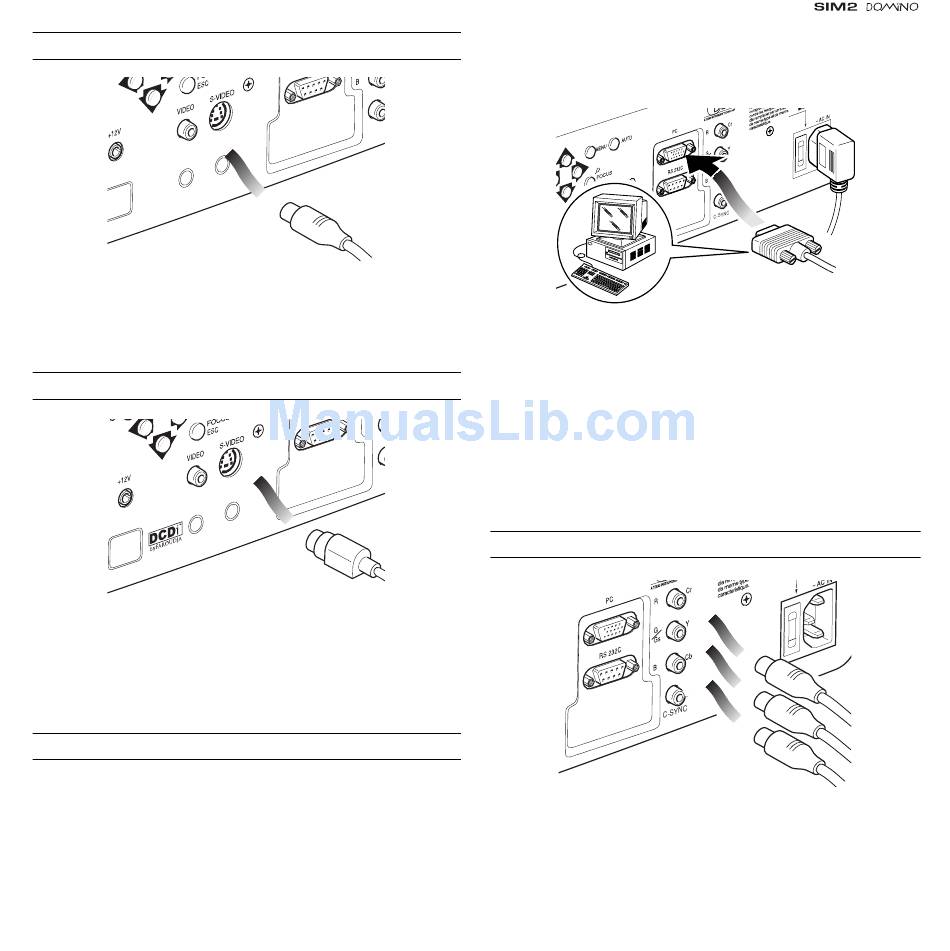

COMPOSITE VIDEO INPUT
COMPOSITE VIDEO
This input is suitable for a "Composite Video CVBS" via a cable
with an RCA/Phono connector (Fig. 16) .
S-VIDEO INPUT
This input is suitable for equipment fitted with a S-Video output
to give improved picture performance (S-VIDEO/S-VHS)
Connection is made via a 4-pin mini-DIN (Fig. 17) .
VGA INPUT
Personal Computers, Video Processors (scalers) and Video
Game consoles can be connected to the projector via the HDB
15-Pin (VGA) terminal.
Ensure the output of equipment connected is RGB with one of
the following synchronisation options: separate H/V Sync, H+V
Composite Sync, (RGsB) composite sync on the green signal
(Fig. 18) . This input accepts a Horizontal Scan Frequency of
CVBS
S-VIDEO
between 15-80 kHz and a Vertical frequency of between 40-
100 Hz. Computer Resolutions of VGA, SVGA, XGA, SXGA and
UXGA can be displayed.
Fig. 16
This input is suitable for a RGB video signal, or for a Component
(YCrCb) type, with composite synchronisation on the green
signal (RGsB) or on the luminance (Y) signal (YsCrCb) through
a cable with RCA/Phono type connector (Fig. 19) .
Only horizontal scanning frequencies of 15 kHz (standard vi-
deo resolution) or 32 kHz (high definition video, with progressi-
ve scanning) can be applied to this input.
RGB/YC C INPUT
R B
Fig. 17
This input is suitable for a RGB video signal, or for a Component
(YCrCb) type, with composite synchronisation on the green
signal (RGsB) or on the luminance (Y) signal (YsCrCb) through
a cable with RCA/Phono type connector (Fig. 19) .
RG B - Y C C
S S
COMPONENT
VIDEO
Fig. 18
Fig. 19
