Advantech UNO-2170 User Manual

Celeron m universal network controller with pc/104 extension
Hide thumbs Also See for UNO-2170:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
UNO-2170
Celeron M Universal Network
Controller with PC/104 extension

User Manual

Advertisement

Table of Contents
loading

Related Manuals for Advantech UNO-2170

Summary of Contents for Advantech UNO-2170

  • Page 1: User Manual

    UNO-2170 Celeron M Universal Network Controller with PC/104 extension User Manual...
  • Page 2 C&T is a trademark of Chips and Technologies, Inc. All other product names or trademarks are properties of their respective owners. Support For more information on this and other Advantech products, please visit our websites at: http://www.advantech.com For technical support and service, please visit our support website at: http://www.advantech.com/support/...

  • Page 3: Product Warranty

    Product Warranty Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for one year from the date of purchase. This warranty does not apply to any products that have been repaired or...

  • Page 4: Declaration Of Conformity

    This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.

  • Page 5: Table Of Contents

    Chassis Dimensions............5 Figure 1.1:Chassis Dimensions........5 Chapter 2 Hardware Functionality ........8 Introduction ............... 8 Figure 2.1:Front panel of UNO-2170 ......8 Figure 2.2:Rear panel of UNO-2170 ......8 RS-232 Interface (COM1~COM2) ........8 RS-232/422/485 Interface (COM3~COM4) ..... 9 2.3.1 16C550 UARTs with 16-byte standard ......
  • Page 6 BIOS Setup and System Assignments ......17 Appendix A System Settings and Pin Assignments ..20 System I/O Address and Interrupt Assignment..20 Table A.1: UNO-2170 System I/O Ports ...... 20 Board Connectors and Jumpers........22 Figure A.1: Connector & Jumper Locations (front) ..22 Figure A.2:Connector &...
  • Page 7 Overview This chapter provides an overview of UNO-2170’s specifications. Sections include: • Introduction • Hardware specification • Safety precautions • Chassis dimensions...

  • Page 8: Chapter 1 Overview

    Chapter 1 Overview 1.1 Introduction UNO-2170 is an embedded Application Ready Platform (ARP) that can shorten your development time and offers rich networking interfaces to fulfill extensive needs in different projects. Advantech’s Universal Net- work Controller is designed to be a total solution for network enabled Application Ready Platforms.

  • Page 9: Hardware Specifications

    1.2 Hardware Specifications • CPU: Celeron M Ultra low-voltage version • Memory: 256/512 MB DDR DRAM on board • Battery-backup RAM: 512 KB Battery-backup RAM • VGA/Keyboard/Mouse: DB-15 VGA Connector, PS/2 keyboard and mouse • Serial Ports: 2 × RS-232 and 2 x RS-232/422/485 with DB-9 connec- tors.

  • Page 10: Safety Precautions

    Caution! Always ground yourself to remove any static electric charge before touching UNO-2170. Mod- ern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static-shielded bag.

  • Page 11: Chassis Dimensions

    1.4 Chassis Dimensions Figure 1.1: Chassis Dimensions Chapter 1...
  • Page 12 UNO-2170 User Manual...
  • Page 13 Hardware Functionality This chapter shows how to setup the UNO-2170’s hardware functions, including connecting peripherals, set- ting switches and indicators. Sections include: • Peripherals • RS-232 Interface • RS-232/422/485 Interface • LAN / Ethernet Connector • Power Connector • PS/2 Mouse and Keyboard Connector •...

  • Page 14: Figure 2.1:Front Panel Of Uno-2170

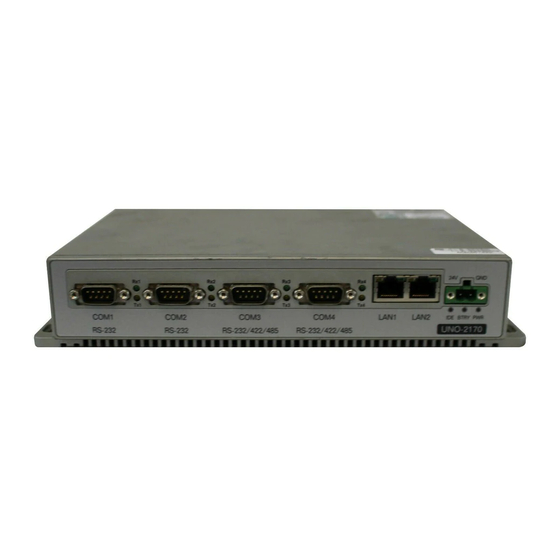

    Chapter 2 Hardware Functionality 2.1 Introduction The following two figures show the connectors on UNO-2170. The fol- lowing sections give you detailed information about function of each peripheral. Figure 2.1: Front panel of UNO-2170 Figure 2.2: Rear panel of UNO-2170 2.2 RS-232 Interface (COM1~COM2)

  • Page 15: Rs-232/422/485 Interface (Com3~Com4)

    COM3 and COM4. Please refer to Appendix A.4 for their pin assignments. The default setting of COM3 and COM4 are RS-422/485. 2.3.1 16C550 UARTs with 16-byte standard Advantech UNO-2170 comes with TI16C550 UARTs containing 16 bytes FIFOs. 2.3.2 RS-422/485 detection In RS-422/485 mode, UNO-2170 automatically detects signals to match RS-422 or RS-485 networks.

  • Page 16: Rs-232/422/485 Selection

    To select between RS-422/485 and RS-232 for COM4, adjust JP5. Jumper setting for RS-422/485 interface: (Default setting). (JP4 and JP5) Figure 2.3: RS-422/485 jumper setting Jumper setting for RS-232 interface: (JP4 and JP5) Figure 2.4: RS-232 jumper setting UNO-2170 User Manual...

  • Page 17: Rs-485 Auto Flow & Rs-422 Master/Slave Mode

    2.3.6 RS-485 Auto Flow & RS-422 Master/Slave Mode You can set the “Auto Flow Control” mode of RS-485 or “Master/Slave” mode of RS-422 by using the SW3 DIP switch for each RS-422/485 port. In RS-485, if the switch is set to “Auto”, the driver automatically senses the direction of the data flow and switches the direction of transmission.

  • Page 18: Irq And Address Setting

    Speed x 8* Speed x 1 (default) * To increase the normal baud rates by eight times, (e.g. if 115.2K bps is set, the baud rate will be increased to 921.6K bps), set switch 2 of SW4 to “on”. UNO-2170 User Manual...

  • Page 19: Lan: Ethernet Connector

    LED) and Active (Yellow LED) status. 2.5 Power Connector The UNO-2170 comes with a Phoenix connector that carries 9~36 VDC external power input, and features reversed wiring protection. Therefore, it will not cause any damage to the system by reversed wiring of ground line and power line.

  • Page 20: Vga Display Connector

    There is a BTRY LED in the front panel of the UNO-2170, please replace the lithium battery with a new one if the BTRY LED is activated.
  • Page 21 Initial Setup This chapter introduces how to initial- ize the UNO-2170. Sections include: • Inserting a CompactFlash Card • Chassis Grounding • Conneting Power • Connecting a Hard Disk • BIOS Setup and System Assignments...

  • Page 22: Chapter 3 Initial Setup

    Chapter 3 Initial Setup 3.1 Inserting a CompactFlash Card Remove the power cord. Unscrew the four screws from the rear panel of the UNO-2170. Remove the rear panel. Plug a CompactFlash card with your OS and application program into a CompactFlash card slot on board.

  • Page 23: Connecting Power

    3.3 Connecting Power Connect the UNO-2170 to a 9~36 VDC power source. The power source can either be from a power adapter or an in-house power source. 3.4 Installing a Hard Disk The procedure for installing a hard disk into the UNO-2170 is below.
  • Page 24 UNO-2170 User Manual...
  • Page 25 System Settings and Pin Assignments...

  • Page 26: Appendix A System Settings And Pin Assignments

    Appendix A System Settings and Pin Assignments A.1 System I/O Address and Interrupt Assignment Table A.1: UNO-2170 System I/O Ports Address Range Device 000-01F DMA controller (slave) 020-03F Interrupt controller 1, (master) 040-05F 8254 timer/counter 060-06F 8042 (keyboard controller) 070-07F...
  • Page 27 Table A.1: UNO-2170 System I/O Ports Address Range Device 3D0-3DF Color/graphics monitor adapter 3F0-3F7 Diskette controller 3E8-3EF Serial port 3 3F8-3FF Serial port 1 Watchdog timer DC000-DFFFF Battery backup resource Table A.2: UNO-2170 Interrupt Assignment Interrupt No. Interrupt Source Parity error detected...

  • Page 28: Board Connectors And Jumpers

    A.2 Board Connectors and Jumpers There are several connectors and jumpers on the UNO-2170 board. The following sections tell you how to configure the UNO-2170 hardware setting. Figure A-1 and Figure A-2 show the locations of UNO-2170’s connectors and jumpers.
  • Page 29 Table A.3: UNO-2170 Connectors and Jumpers Label Function Phoenix power connector Ethernet port 1 Ethernet port 2 COM1 RS-232 serial port COM2 RS-232 serial port CN14 COM3 RS-232/422/485 serial port CN15 COM4 RS-232/422/485 serial port USB connector PS/2 keyboard and mouse connector...

  • Page 30: Rs-232 Standard Serial Port (Com1~Com2)

    A.3 RS-232 Standard Serial Port (COM1~COM2) Table A.4: RS-232 standard serial port pin assignments RS-232 Signal Name UNO-2170 User Manual...

  • Page 31: Rs-232/422/485 Serial Port (Com3~Com4)

    A.4 RS-232/422/485 Serial Port (COM3~COM4) Table A.5: RS-232/422/485 serial port pin assignments RS-232 RS-422 RS-485 DATA- DATA+ A.5 Ethernet RJ-45 Connector (LAN1~LAN2) Table A.6: Table A-5: Ethernet RJ-45 connector pin assignments 10/100Base-T Signal Name XMT+ XMT- RCV+ RCV- Appendix A...

  • Page 32: Phoenix Power Connector (Pwr)

    A.6 Phoenix Power Connector (PWR) Table A.7: Power connector pin assignments +9~36VDC A.7 PS/2 Keyboard and Mouse Connector Table A.8: Keyboard and Mouse connector pin assignments Signal Name KB DATA MS DATA KB Clock MS Clock UNO-2170 User Manual...

  • Page 33: Usb Connector (Usb1~Usb2)

    A.8 USB Connector (USB1~USB2) Table A.9: USB connector pin assignments Signal Name Cable Color DATA- White DATA+ Green Black A.9 VGA Display Connector Table A.10: Table A-9: VGA adaptor cable pin assignment Signal Name Green Blue H-SYNC V-SYNC Appendix A...
  • Page 34 UNO-2170 User Manual...
  • Page 35 Programming the Watchdog Timer...

  • Page 36: Appendix B Programming The Watchdog Timer

    OUT DX,AL MOV DX,2FH MOV AL,00H OUT DX,AL; MOV DX,2EH MOV AL,F6H OUT DX,AL MOV DX,2FH MOV AL,05H; Set 5 seconds OUT DX,AL ;------------------------------------------ ; Exit extended function mode | ;------------------------------------------ MOV DX,2EH MOV AL,AAH OUT DX,AL UNO-2170 User Manual...
