A. Antenna Port
B. Line-out
C. Min-in
D. COM3
E. COM2
F. COM1
USB 2.0 x 4
G.

2.2 Installation Procedures

2.2.1 Connecting the Power Cord

The UTC-520A/B can be powered by a DC electrical outlet. Be sure to always handle
the power cords by holding the plug ends only. Please follow the Figure 2.5 to con-
nect the male plug of the power cord to the DC inlet of the UTC-520A/B.

2.2.2 Connecting the Keyboard or Mouse

Before you start the computer, please connect keyboard port on the I/O section of the
UTC-520A/B.

2.2.3 Switching on the Power

When you look at the rear side of the UTC-520A/B, you will see the power switch as
shown in Figure 2.2.
A B C D E

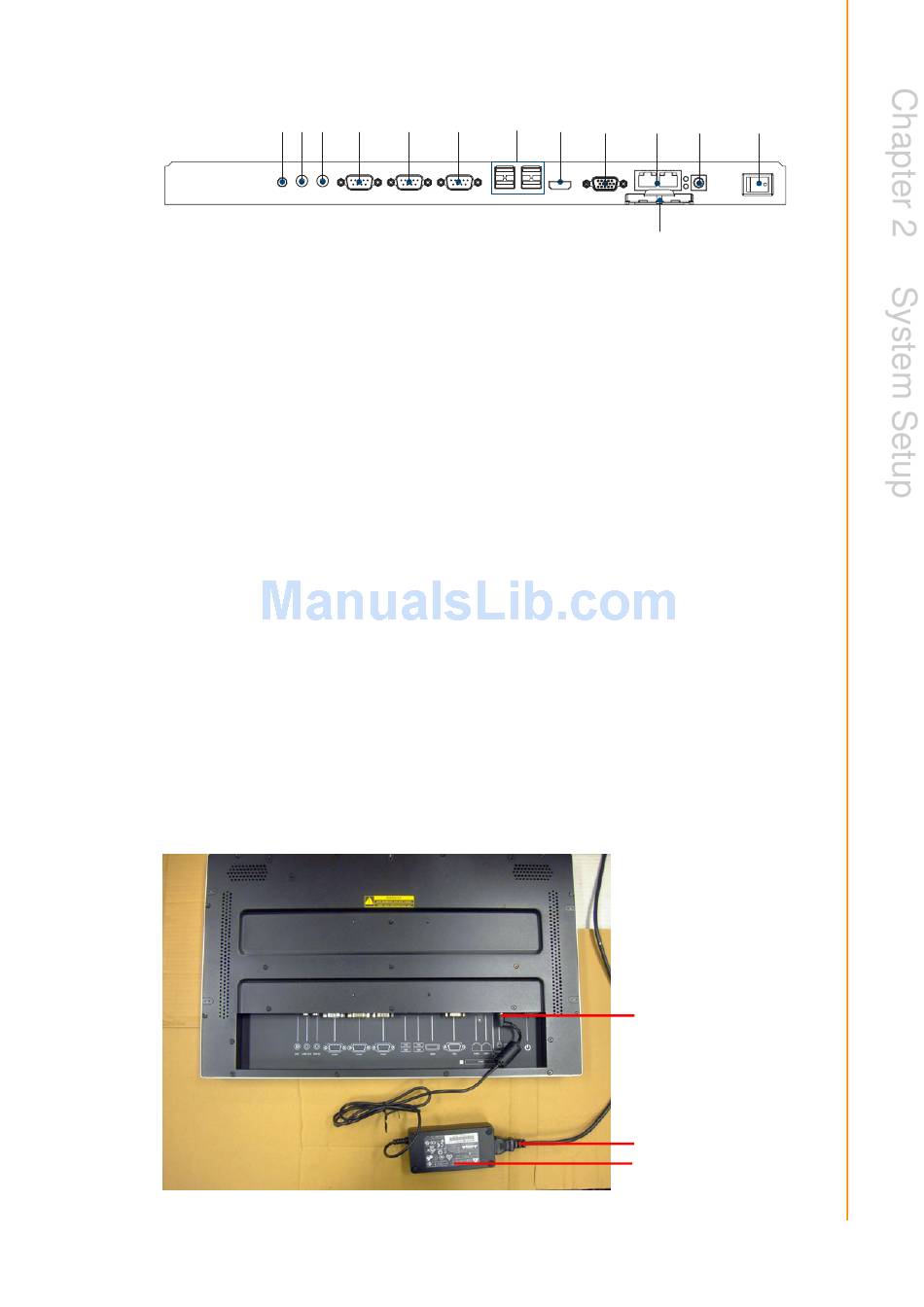

Figure 2.3 Connect the power cord to the DC inlet

F G H
I
H. HDMI
I. VGA
J. LAN Ports x 2
K. CFast
L. DC Input
M. Power switch
9 UTC-520A/B User Manual
J L M
K
DC inlet
Power cord
AC/DC power adapter
