3.3 Installing the CFAST

1. Please follow the CFAST Card assembly as in the following diagram.
(Please notice the direction of the CFAST)

3.4 Installing the Memory

1. Detach and remove the rear cover.
2. Remove the 4 pcs screws on the Heatsink.
3. Turn to bottom side and remove the 2 pcs screws.
4. Install DRAM in the SO-DIMM socket.

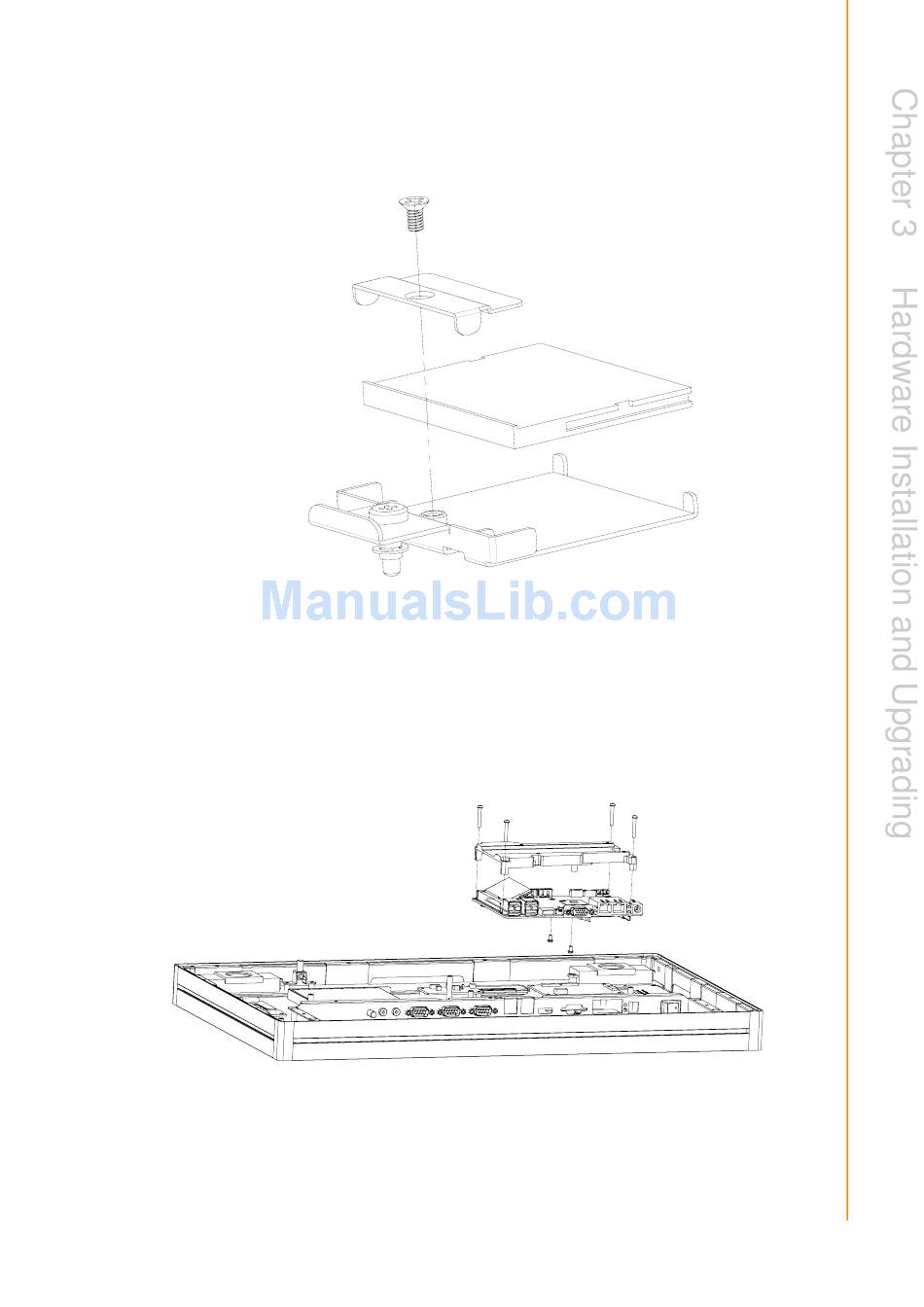

Figure 3.2 Installing the Compact Flash card

Figure 3.3 Installing the memory

15 UTC-520 User Manual
