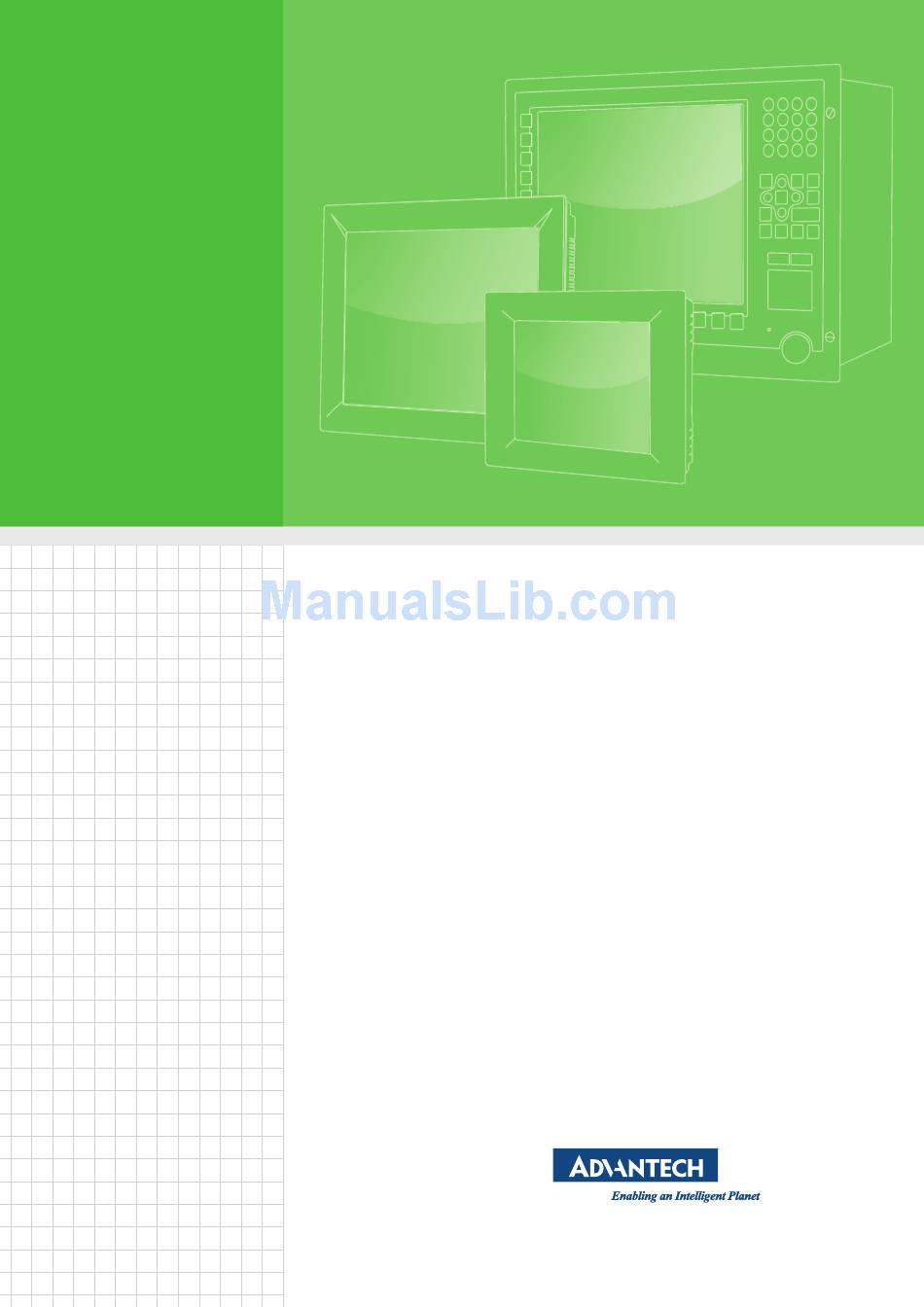

- Page 1 用户手册 FPM-5151G/5171G/ 5191G Series 15" XGA/17" SXGA/19" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI Ports and DC12-30V Inputs...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
- Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 6 FPM-5151G/5171G/5191G Series User Manual...
-
Page 7: Table Of Contents
Contents Chapter General Information ......1 Introduction ....................2 Specifications .................... 2 1.2.1 General ..................2 1.2.2 Touchscreen (Optional) ..............2 LCD Specification..................3 Connectors....................3 Dimensions ....................4 Figure 1.1 FPM-5151G Dimensions ..........4 Figure 1.2 FPM-5171G Dimensions ..........5 Figure 1.3 FPM-5191G Dimensions .......... - Page 8 B.2.8 Auto Configuration Menu ............26 B.2.9 Mode Information Menu.............. 27 B.2.10 Memory Recall Menu..............28 B.2.11 Exit Menu..................29 B.2.12 Hot Keys ..................30 FPM-5151G/5171G/5191G Series User Manual viii...
-
Page 9: Chapter 1 General Information
Chapter General Information Sections include: Introduction Specifications LCD Specification Power Consumption Connectors Dimensions... -
Page 10: Introduction
Introduction Advantech's FPM-5151G/5171G/5191G is a 15"/17”/19” color TFT LCD flat panel monitor built specifically for industrial applications. With the optional touchscreen, FPM-5151G/5171G/5191G is an excellent and user-friendly system control interface. In addition to its usual application as an LED panel monitor,FPM-5151G/5171G/ 5191G comes standard with direct VGA and DVI control signal inputs, making it compatible with Industrial PCs and Workstations. -
Page 11: Lcd Specification
LCD Specification FPM-5151 FPM-5171 FPM-5191 Display Type XGA TFT (LED) SXGA TFT (LED) SXGA TFT (LED) Display Size 15” 17” 19” Max. Colors 16.2M 16.7M 16.7M Max. Resolution 1024 x 768 1280 x 1024 1280 x 1024 View Angle (H/V°) 160/140 170/160 170/160... -
Page 12: Dimensions
Dimensions Figure 1.1 FPM-5151G Dimensions FPM-5151G/5171G/5191G Series User Manual... -
Page 13: Figure 1.2 Fpm-5171G Dimensions
Figure 1.2 FPM-5171G Dimensions FPM-5151G/5171G/5191G Series User Manual... -
Page 14: Figure 1.3 Fpm-5191G Dimensions
Figure 1.3 FPM-5191G Dimensions FPM-5151G/5171G/5191G Series User Manual... -
Page 15: Chapter 2 Mounting
Chapter Mounting Wall Mounting Panel Mounting Rack Mounting Desktop Mounting Swing Arm Mounting... -
Page 16: Mounting The Monitor
Mounting the Monitor The FPM-5151G/5171G/5191G Series can be mounted in many different ways. The versatility of the FPM-5151G/5171G/5191G mounts enable it to be mounted on your desk or anywhere else. 2.1.1 Wall Mounting (Optional) FPM-5151G/5171G/5191G can be mounted directly on a wall with panel mounting brackets. -
Page 17: Panel Mounting
2.1.2 Panel Mounting FPM-5151G/5171G/5191G can be mounted directly on a panel with additional mounting brackets. Please refer to Figure 2.2 and follow the following steps: Note! You can use the materials provided in the accessory box for panel mounting! Fix 10pcs panel bracket around the industrial monitor, refer to the below figure. Fix into the panel by screwing the bracket. -
Page 18: Rack Mounting (Optional)
2.1.3 Rack Mounting (Optional) If you need to install the FPM-5151G/5171G/5191G on a rack, you must order the rack mounting kit for FPM-5151G/5171G/5191G. Attach the rack mounting brackets on FPM-5151G/5171G/5191G with the screws, then affix the monitor in the rack. Refer to Figure 2.3 for FPM-5151G’s rack mounting. -
Page 19: Figure 2.5 Fpm-5171 Rack Mounting
Figure 2.5 FPM-5171 Rack Mounting Figure 2.6 FPM-5191 Rack Mounting FPM-5151G/5171G/5191G Series User Manual... -
Page 20: Desktop, Swing-Arm Mounting
2.1.4 Desktop, Swing-ARM Mounting The FPM-5151G/5171G/5191G Series can be mounted in other ways, such as desktop and swing-arm. 2.1.4.1 Desktop Stand FPM-5151G/5171G/5191G can be mounted as stand in the desk directly by a additional mounting brackets. Customers must order the stand kit for FPM-5151G/ 5171G/5191G. -
Page 21: Figure 2.8 Swing Arm
2.1.4.2 Swing Arm (VESA Compliant) FPM-5151G/5171G/5191G has been designed with support for the VESA Arm stand- ard. Refer to figure 2.7. Supports both 75mm and 100mm VESA dimension. Figure 2.8 Swing Arm FPM-5151G/5171G/5191G Series User Manual... - Page 22 FPM-5151G/5171G/5191G Series User Manual...
-
Page 23: Appendix A Touchscreen
Appendix Touchscreen... -
Page 24: Introduction
Introduction The FPM-5151G/5171G/5191G Series optional touchscreen uses advanced 5-wire resistive technology. It provides more accurate sensing capacity than other technologies. The touchscreen is specially designed for tough industrial environments, and has been approved to FCC Class A standards. Note! RS-232 & USB touchscreen interface does not allow connection to the system at the same time. -
Page 25: Appendix Bosd Operation Keypad
Appendix OSD Operation Keypad... -
Page 26: Osd Board Overview
OSD Board Overview The OSD keypad, including six keys and a two color indicator, is designed as the OSD operation interface. B.1.1 OSD Button Description Table B.1: OSD Button Description Power Turn the monitor power ON or OFF. Auto/Exit Automatically adjust the clock, phase, H-position and V-position. -
Page 27: Led Function
B.1.2 LED Function Table B.2: LED Function Green StandBy/OFF Green Blinking No Signals Orange OSD Key Functions Each selected value is stored into LCD memory after SEL signal input or time out. The stored values are not affected if the power is turned off. But the selected value is not available in case a selected mode is changed before time out or power is turned off before time out. -
Page 28: Input Source Select
B.2.2 Input Source Select Generate Main Menu Select by Left and Right Button, and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Power Off the Select to move up/down LCD Monitor Return to the previous... -
Page 29: Contrast/Brightness Setting
B.2.3 Contrast/Brightness Setting Generate Main Menu Select by Left and Right Button, and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Power Off the LCD Mon- ·Select to move up/down itor ·Decrease the gauge value... -
Page 30: Geometry Menu - For Dvi Input
B.2.4 Geometry Menu – For DVI Input Generate Main Menu Select by Left and Right Button,press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Power Off the LCD Mon- ·Select to move up/down itor ·Decrease the gauge value... -
Page 31: Color Temperature Menu
B.2.5 Color Temperature Menu Generate Main Menu Select by Left and Right Button, and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Power Off the LCD Mon- ·Select to move up/down itor ·Decrease the gauge value... -
Page 32: Language Menu
B.2.6 Language Menu Generate Main Menu Select by Left and Right Button, and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Power Off the LCD Mon- Move the selector to the left itor Return to the previous... -
Page 33: Osd Manager
B.2.7 OSD Manager Generate Main Menu Select by Left and Right Button, and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Power Off the LCD Mon- ·Select to move up/down itor ·Decrease the gauge value... -
Page 34: Auto Configuration Menu
B.2.8 Auto Configuration Menu Generate Main Menu Select by Left and Right Button, and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Power Off the LCD Mon- itor Return to the previous Select to confirm... -
Page 35: Mode Information Menu
B.2.9 Mode Information Menu Generate Main Menu Select by Left and Right Button, and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Power Off the LCD Mon- Move the selector to the left itor Return to the previous... -
Page 36: B.2.10Memory Recall Menu
B.2.10Memory Recall Menu Generate Main Menu Select by Left and Right Button, , and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Select to confirm FPM-5151G/5171G/5191G Series User Manual... -
Page 37: Exit Menu
B.2.11 Exit Menu Generate Main Menu Select by Left and Right Button, and then press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN FPM-5151G/5171G/5191G Series User Manual... -
Page 38: Hot Keys
B.2.12Hot Keys OSD LOCK/UNLOCK HOT KEYS Press first, and then press for change this setting, Followed this sequence for the button press so that you can have OSD LOCK and UNLOCK setting Enter OSD LOCK MODE – Press HOT KEY, the screen will show this action first –... - Page 39 FPM-5151G/5171G/5191G Series User Manual...
- Page 40 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2012...
