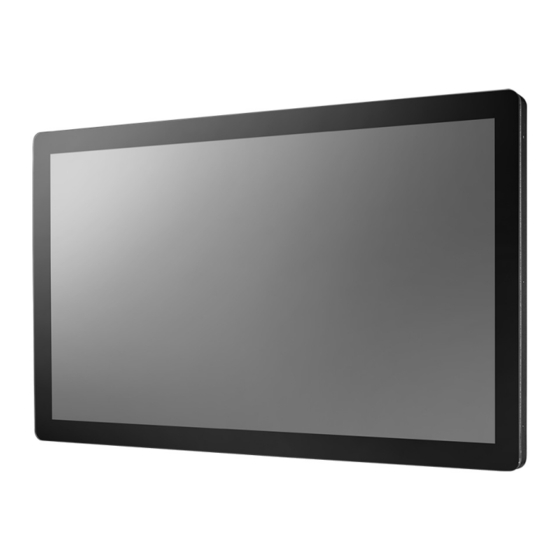

- Page 1 User Manual IDP31-215W Series 21.5" Wide Screen Industrial ProFlat Projected Capacitive Touch Monitor...
- Page 2 The documentation and the software included with this product are copyrighted 2018 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form, or by any means, without the prior written permission of Advantech Co., Ltd.
- Page 3 In such cases, users are required to correct the interference at their own expense. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support or additional assistance.
- Page 4 Discard used batteries according to the manufacturer's instruc- tions. Note! Notes provide additional optional information. Document Feedback To assist us in improving this manual, we welcome all comments and constructive criticism. Please send all feedback in writing to support@advantech.com IDP31-215W User Manual...
- Page 5 The sound pressure level at the operator's position does not exceed 70 dB (A) in accordance with IEC 704-1:1982. DISCLAIMER: These instructions are provided according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 6 IDP31-215W User Manual...
-
Page 7: Table Of Contents
Contents Chapter Overview..........1 Introduction ....................2 Features ....................2 Applications....................2 Product Photos..................2 Naming Rule ..................... 3 Chapter System Setup ........5 Specifications .................... 6 Rear Mount Assembly................7 Packing List....................7 Chapter Touchscreen ........9 OSD Functions..................10 OSD Menu Details .................. 11 3.2.1 Luminance .................. - Page 8 IDP31-215W User Manual viii...
-
Page 9: Chapter 1 Overview
Chapter Overview Introduction Features Applications Product Photos Naming Rule... -
Page 10: Introduction
Introduction Advantech’s IDP31-215W series is a brand new Industrial ProFlat Touch Monitor, designed for quick and easy integration for different applications, such as public sig- nage, front of house information, medical and point-of-sale. Features 21.5” Full HD panel with LED backlight, offering 20 ~ 30% power savings ... -
Page 11: Naming Rule
Naming Rule IDP 3 1 – 215 W P 25 HI B2 Revision IDP31-215W User Manual... - Page 12 IDP31-215W User Manual...
-
Page 13: Chapter 2 System Setup
Chapter System Setup Specifications Dimensions Rear Mount Assembly Cable Clamp Packing List... -
Page 14: Specifications
Specifications Note! The IDP31-215W offers the following features. Unless otherwise indicated, all the specifications listed below are sub- ject to change without prior notification. Model IDP31-215W Size 21.5" LED panel Resolution 1920 x 1080 (Full HD) Viewing Angle 178°/178° (H/V) Brightness 250 (cd/m Display... -
Page 15: Rear Mount Assembly
Rear Mount Assembly Note! Suggested screws M4x10L Packing List 1 x VGA cable 15P (M), 1.8 meter 1 x USB-A(M)/USB-A (M), 1.8 meter 1 x 60 W 12 V power adapter (upon request) 1 x Power cord (upon request) ... - Page 16 IDP31-215W User Manual...
-
Page 17: Chapter 3 Touchscreen
Chapter Touchscreen OSD Functions Touch Drivers... -
Page 18: Osd Functions
OSD Functions IDP31-215W is equipped with 1920 x 1080 display resolution and the following OSD features: Buttons Description Power Turn the monitor power ON or OFF Activate the OSD menu Menu Select Automatically adjust the clock, phase Auto/Exit H-position and V-position Move the selector to the previous option Value Up/Down Reduce the value of the selected option... -
Page 19: Osd Menu Details
OSD Menu Details 3.2.1 Luminance Contrast Brightness Eco Mode IDP31-215W User Manual... -
Page 20: Image Setup
3.2.2 Image Setup Clock IDP31-215W User Manual... - Page 21 Phase H. Position V. Position Image Ratio IDP31-215W User Manual...
-
Page 22: Color Temperature
3.2.3 Color Temperature Color Temperature IDP31-215W User Manual... -
Page 23: Osd Setup
3.2.4 OSD Setup H. Position V. Position Timeout IDP31-215W User Manual... -
Page 24: Extra
Language 3.2.5 Extra Input Select IDP31-215W User Manual... - Page 25 DDC/CI Reset IDP31-215W User Manual...
- Page 26 Layer 1 Layer 2 Layer 3 Comment Default Value Contrast Adjust contrast Brightness Adjust brightness (backlight) Standard Sport Luminance Movie ECO Mode Standard Game Internet Text Set dynamic contrast ratio Adjust clock latency of output Depends on the Clock capture window input resolution Depends on the Adjust clock phase of output...
-
Page 27: Touch Drivers
Display current source infor- Depends on the Information H. Frequency mation input source V. Frequency Touch Drivers The touchscreen driver is available online at the Advantech website. Use the follow- ing link to access the driver: http://support.advantech.com/support/default.aspx IDP31-215W User Manual... - Page 28 IDP31-215W User Manual...
- Page 29 Appendix Troubleshooting...
-
Page 30: Appendix A Troubleshooting
Introduction If the monitor is malfunctioning or does not operate according to the user manual, refer to the following instructions before calling the Advantech service center. If unable to correct the faults using the instructions provided below, please contact your distributor or the Advantech service center. - Page 31 IDP31-215W User Manual...
- Page 32 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2018...
