  • Page 1 User Manual ITM-5117 Series 17" Industrial LED Touch Monitor...

  • Page 2: Product Warranty (2 Years)

    No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.

  • Page 3: Declaration Of Conformity

    Class I, Division 2, Groups A, B, C and D indoor hazards. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.

  • Page 4: Warnings, Cautions, And Notes

    Warnings, Cautions and Notes Warning! Warnings indicate conditions, which if not observed, can cause personal injury! Caution! Cautions are included to help you avoid damaging hardware or losing data. e.g. There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery.

  • Page 5: Safety Instructions

    The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given accord ing to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 6 Chapter Overview Sections include: Introduction Features Applications Naming Rule...

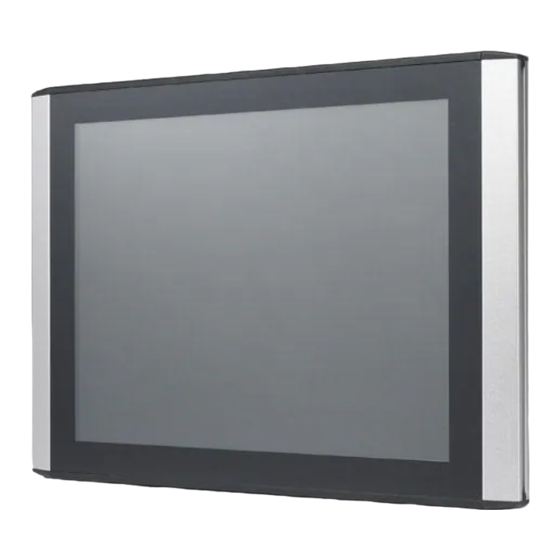

  • Page 7 Introduction The Advantech ITM-5117 is a brand new Industrial Touch Monitor, designed to meet the needs of custome rs who wan t quick and easy integrations with Advantech Embedded Box Computers, like ARK, and DSA. Advantech offers four different types of ITM-5117 to meet customer's demands.

  • Page 8: Naming Rule

    Naming Rule ITM-5117R -MA1E Code 8 Standard RoHS Code 3 LCD Size Code 7 Revision Code 5 Code 1 Integration Level Change 19” ITM-5 Panel Mount LCD Monitor (minor) 17” Monitor 15” Pluggable ITM-6 Sunlight Readable 12” with ARK Monitor 10”...

  • Page 9: System Setup

    Chapter System Setup Sections include: Specifications Dimensions Panel Mount Assembling SOP Cable Clamp Accessory Packing...

  • Page 10: Specifications

    Specifications Note! The ITM-511 series offers the following features and meets precise specifications. Unless otherwise noted, all the information listed below is subject to change without prior notification. Size 17“ LED backlight panel Resolution 1280 x 1024 (SXGA) Viewing Angle 85°/85°/85°/85°...
  • Page 11 Dimensions...
  • Page 12 Panel Mount Assembly SOP Using 16 screws included in accessory box to attach panel mount brackets to ITM-5117. If the ITM-5117 you received are with brackets already, check if brackets are well fixed. Then attaching 8 panel mount clamps, which are also included in the accessory box, to the brackets for fixing ITM-5117.

  • Page 13: Cable Clamp

    Cable Clamp A cable clamp is designed to fix power cord from dropping off from ITM-5117 acci- dentally. Accessory Packing List Panel-Mount clamper x 8 Screw for panel-mount clamper M4_30L x 8 Cable clamp x 1 Manual/Utility CD VGA cable 15P(M) 1.8 meter x 1 D-SUB 9P(M)/D-SUB 9P(F) 1.8 meter x 1...
  • Page 14 Chapter Touchscreen Sections include: OSD Functions Touch Drivers...
  • Page 15 OSD Functions (ITM-5117R-M Series Only) The OSD of the ITM-5117 display (1280 x 1024 resolution) was selected to illustrate examples below: Buttons Description Power Turn the monitor power ON or OFF. Activate the OSD menu. Menu/Exit Exit menu Automatically adjust the clock, phase, H-position and V-position. Auto/Left/Up Move the selector to the next option.
  • Page 16 3.1.2 Select Input Source 3.1.3 Contrast/Brightness - Submenu...
  • Page 17 3.1.4 Geometry Menu 3.1.5 Color Temperature - Submenu...
  • Page 18 3.1.6 RGB Color - Submenu 3.1.7 Language - Submenu...
  • Page 19 3.1.8 OSD Manager - Submenu 3.1.9 Auto Config - Submenu...
  • Page 20 3.1.10 Mode Information - Submenu 3.1.11 Memory Recall - Submenu...

  • Page 21: Touch Drivers

    At the same time, press “Right” & “Left” keys to unlock the key. Touch Drivers The T/S driver CD-ROM is in the accessory box and comes with the product, and is also available online at the Advantech website as follows: http://www.advantech.com.cn/products/ITM-5117/mod_5ABE2947-4D54-4750- 9B04-9B64D334B4CC.aspx...
  • Page 22 Appendix Troubleshooting...

  • Page 23: Troubleshooting

    If experiencing trouble with the monitor, or it fails to operate correctly, please refer to the following instructions before calling the Advantech service center. If unable to cor- rect the faults using the instructions below, then please contact the distributor or the services/repair center.
  • Page 24 No part of this publicati on may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2012...
