Advantech CRV-430JP Series User Manual

Advantech CRV-430JP Series User Manual

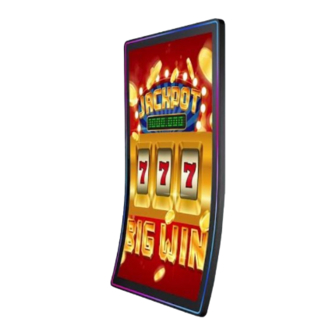

43" curved touch monitor
Hide thumbs Also See for CRV-430JP Series:

Advertisement

Quick Links

User Manual
CRV-430JP Series
43" Curved Touch Monitor
43 吋曲面觸控顯示器

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRV-430JP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech CRV-430JP Series

  • Page 1 User Manual CRV-430JP Series 43" Curved Touch Monitor 43 吋曲面觸控顯示器...
  • Page 2: Product Warranty (2 Years)

    No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3: Declaration Of Conformity

    This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This type of cable is available from Advantech. Please contact your local supplier for ordering information.
  • Page 4: Warnings, Cautions, And Notes

    Discard used batteries according to the manufacturer's instructions.” Note! Notes provide additional optional information. Document Feedback To assist us with improving this manual, we welcome all comments and constructive criticism. Please send all feedback in writing to support@advantech.com. CRV-430JP User Manual...
  • Page 5: Safety Instructions

    70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Caution! Information regarding the adapter output rating (24 V...
  • Page 6 安全指示 請仔細閱讀此安全操作說明。 請妥善保存此用戶手冊供日後參考。 用濕抹布清洗設備前,請確認拔除電源線。請勿使用液體或去污噴霧劑清洗設 備。 對於使用電源線的設備,設備周圍必須有容易接觸到的電源插座。 請勿在潮濕環境中使用設備。 請在安裝前確保設備放置在可靠的平面上,意外摔落可能會導致設備損壞。 設備機殼的開孔適用於空氣對流, 從而防止設備過熱。請勿覆蓋開孔。 當您連接設備到電源插座前,請確認電源插座的電壓符合要求。 請將電源線布置在人們不易絆倒的位置,請勿在電源線上覆蓋任何雜物。 請注意設備上所有的警告標示。 如果長時間不使用設備,請拔除與電源插座的連結,避免設備被超標的電壓波動 損壞。 請勿讓任何液體流人通風口,以免引起火災或短路。 請勿自行打開設備。為了確保您的安全,請透過經認證的工程師來打開設備。 如欲下列情況,請由專業人員維修: – 電源線或插頭損壞。 – 設備內部有液體流人。 – 設備曾暴露在過度潮濕環境中使用。 – 設備無法正常工作,或您無法透過用戶手冊來正常工作。 – 設備摔落或損壞。 – 設備有明顯外觀損壞。 請勿將設備放置在超出建議溫度範圍的環境,即不要低於 0°C(32°F)或高 於 40°C(104°F),否則可能會造成設備損壞。 注意:若電池更換不正確,將有爆炸危險。因此,只可以使用製造商推薦的同一 種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。 根據 IEC 704-1:1982 規定,操作員所在位置音量不可高於 70 分貝。 限制區域:請勿將設備安裝於限制區域使用。...
  • Page 7: Table Of Contents

    Contents Chapter Overview..........1 Introduction ....................2 1.1.1 Scope.................... 2 1.1.2 Overview ..................2 Chapter System Setup ........3 Specifications .................... 4 Packing List....................4 Dimensions ....................5 Chapter Functions ..........7 LED Indicator .................... 8 3.1.1 Keypad (7 Keys) ................8 OSD Menu ....................8 Touch Drivers....................
  • Page 8 CRV-430JP User Manual viii...
  • Page 9: Chapter 1 Overview

    Chapter Overview  Introduction...
  • Page 10: Introduction

    Introduction 1.1.1 Scope This document details specifications for CRV-430JP, a 43" curved (1500R) projected capacitive touch (PCAP) monitor with 4 mm cover glass. 1.1.2 Overview This PCAP monitor is constructed with tempered touch glass, a UHD (3840x2160) TFT panel, and solid metal chassis with a 400x400 VESA mounting for easy installa- tion and protection against impact.
  • Page 11: Chapter 2 System Setup

    Chapter System Setup  Specifications  Packing List  Dimensions...
  • Page 12: Specifications

    Specifications Part number CRV-430JP Display Type 43" TFT LCD with long life LED backlight Max. Resolution 3840 x 2160 450 (Typ.) Luminance (cd/m Display Viewing Angle 89/89/89/89 (left/right/up/down) Pixel Pitch 0.2451 mm x 0.2451 mm Colors 10-bit(D), 1.07 Billion Colors Touch Type Projected capacitive, 4 mm toughened glass Light Transmission...
  • Page 13: Dimensions

    Dimensions LED Strip Version: None-LED Strip Version: CRV-430JP User Manual...
  • Page 14 Suggestion OF Screw for M6 User Hole - M6x20L Note! Select the correct VESA mounting kit with an appropriate weight loading capability. Use M6 screws to affix the digital signage display to the mounting unit. CRV-430JP User Manual...
  • Page 15: Chapter 3 Functions

    Chapter Functions  LED Indicator  OSD Menu  Touch Drivers...
  • Page 16: Led Indicator

    LED Indicator None: power off  Flashing Red: Standby  Solid Blue: Active  3.1.1 Keypad (7 Keys) Power, Menu, UP, Down, Left, Right, Select Key Name Function Remarks Power On/Off Power Key OSD Menu On/Off Menu Key OSD Menu Up Select/Image reverse scan Up Key OSD Menu Down Select Down Key...
  • Page 17: Touch Drivers

    Quad Display Select 1920x1080 60Hz Touch Drivers The CRV-430WP 43" curved touch monitor doesn't need any special drivers to enable the touch function, if the system doesn't include an in box touch driver, please contact Advantech customer service. CRV-430JP User Manual...
  • Page 18 CRV-430JP User Manual...
  • Page 19 Appendix Troubleshooting...
  • Page 20: Appendix A Troubleshooting

    Introduction If the monitor is malfunctioning or does not operate according to the user manual, refer to the following instructions before calling the Advantech service center. If you are unable to correct the faults using the instructions provided below, please contact your distributor or the Advantech service center.
  • Page 21 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱:平板顯示器 型號 ( 型式 ):CRV-430JP Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb)
  • Page 22 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2022...
