Pancode VoIP/Pantel VoIP Access Control Door Phones
Installation and Programming Manual
3.1
Pancode VoIP/Pantel VoIP Schematic Setup
The Pancode VoIP/Pantel VoIP unit is connected to the VoIP PBX as a SIP extension or via any IP router (Network
HUB, Switch etc). The unit powers the door lock, provided it is powered by an external supply and not PoE. The
unit includes the internal 2 port's network switch which allows connecting additional network equipment (PC,
Internal or External video IP server etc...) directly via VoIP Pancode / Pantel. Figure 3-4 details the unit schematic
setup.

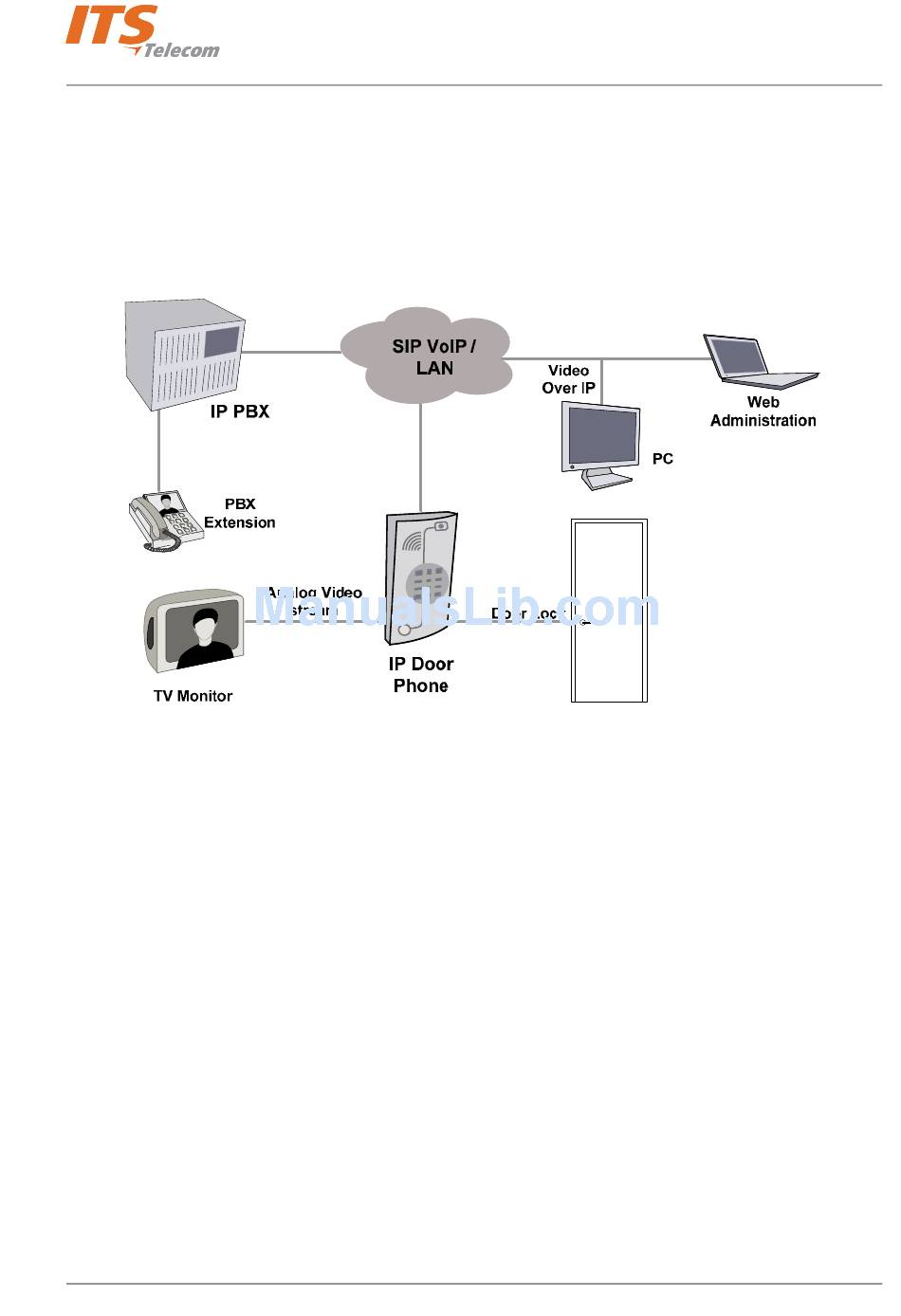

Figure 3-4. Schematic Setup
8
