Pancode VoIP/Pantel VoIP Access Control Door Phones
Installation and Programming Manual

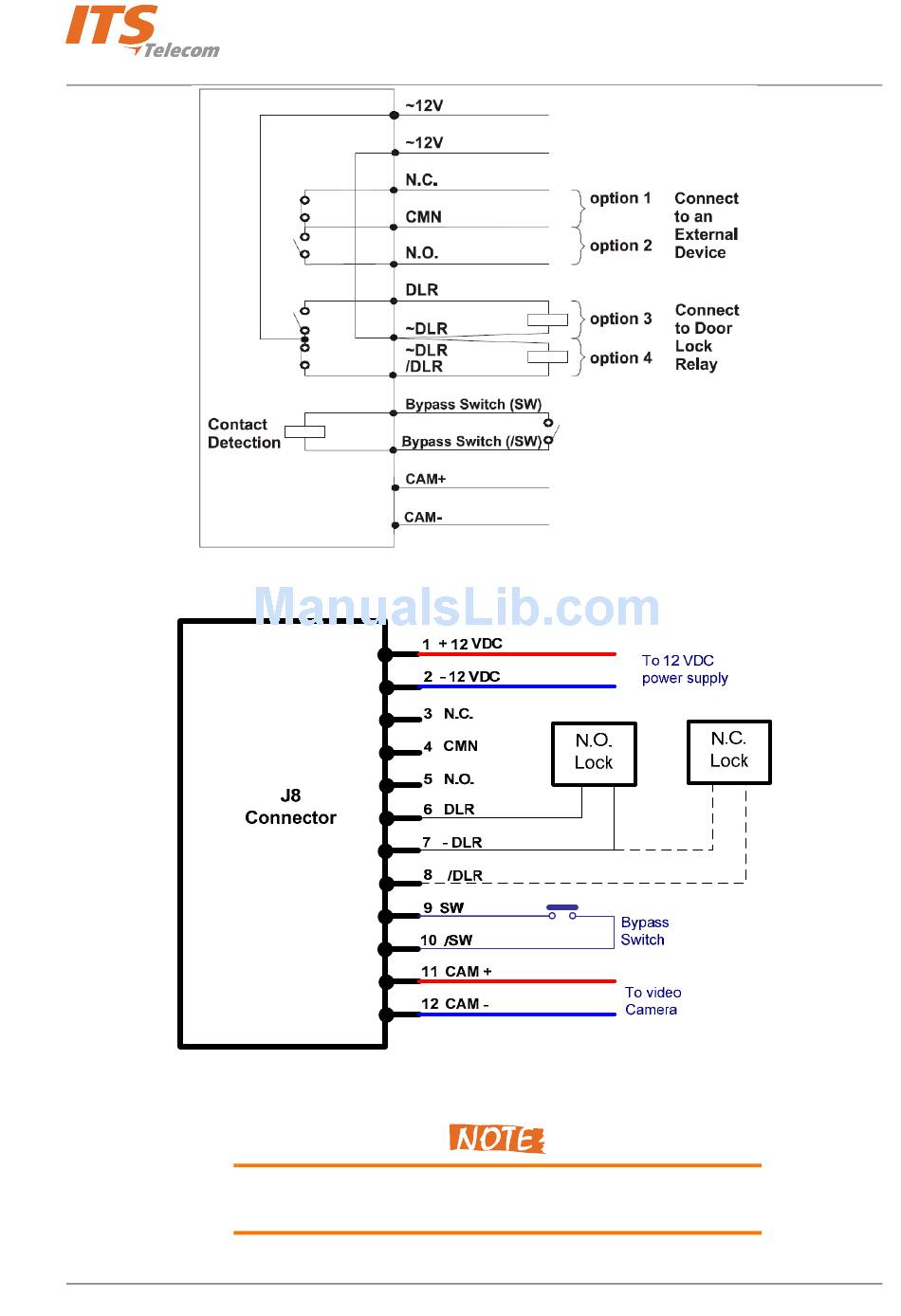

Figure 4-1. 12 V AC Power supply and analog video camera connectors scheme
Figure 4-2 12 V DC Power supply and IP video camera/ server connectors scheme
For the installation of the powered-unlocked-state (12 V AC), use DLR
and ~DLR. For the installation of the powered-locked-state, use /DLR
