The analog video camera is constantly transmitting images using an analog video stream.
Pancode VoIP/Pantel VoIP Access Control Door Phones
Video Output
Video Camera Power
BNC-F
- 12 V Cam – pin 12
+ 12 V Cam – pin 11

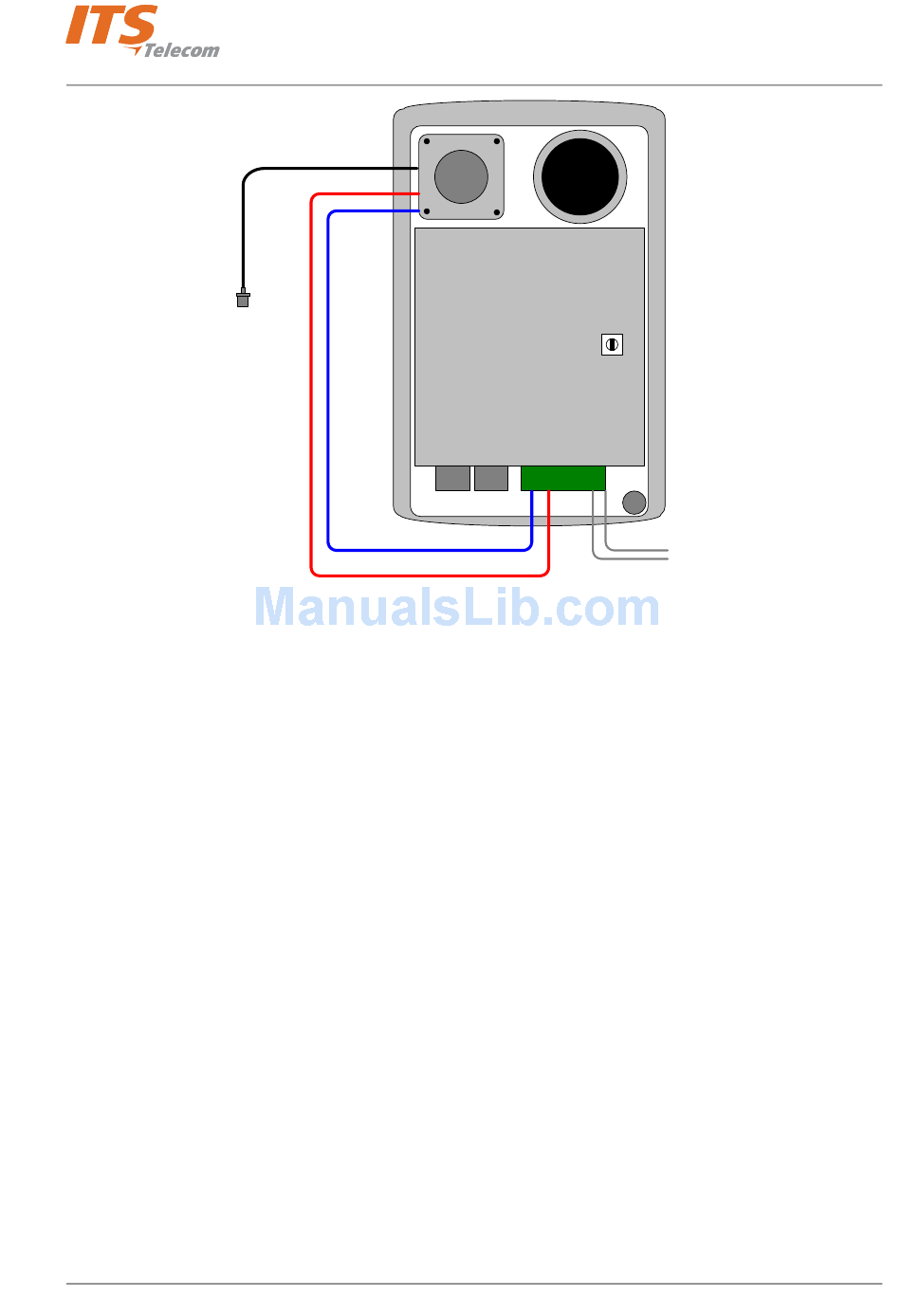

Figure 4-8 Internal Video Camera connections
Installation and Programming Manual
Internal Video
Camera
S
Pancode / Pantel IP
PCB board
RJ-45
RJ-45
Main
Port 1
Port 0
Connector
Cross
Straight
12 11
2 1
R 208
M
To Pancode / Pantel
external power supply ~
12 VAC
16
