Media Specifications - Intermec EasyCoder 4420 User Manual

EasyCoder 4420/4440 Bar Code Label Printer User's Manual

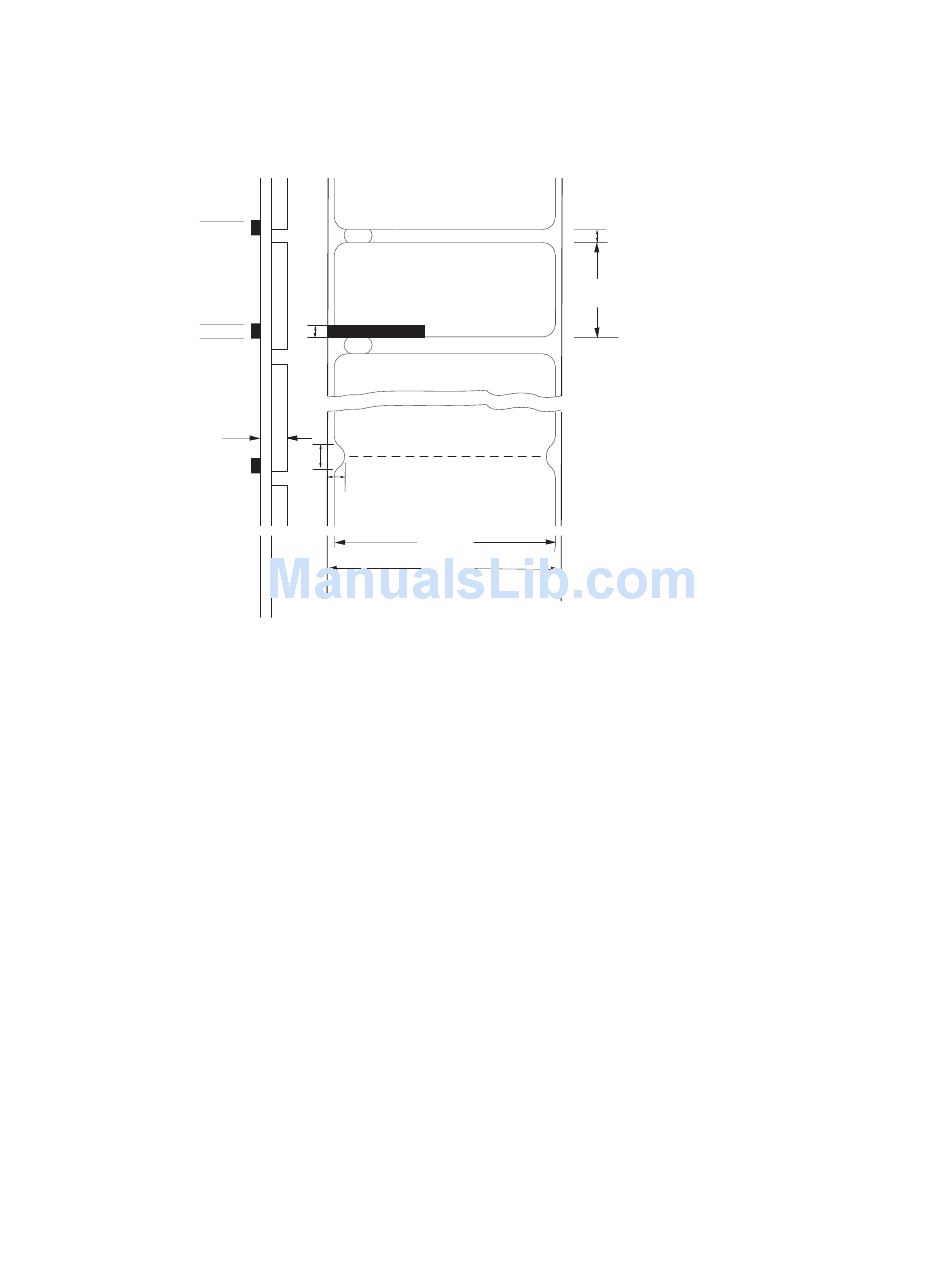

Number Description
A Label width
B Backing width (or tag width)
C Gap between labels
D Label length - self-strip media
Label length - butt cut media
E Media thickness (including backing)
F Reflective sensor mark length
G Notch diameter
H Notch height (depth)
Roll diameter
A-4

Media Specifications

F
E
G
H
D
A
B
44XXU067.eps
Minimum
13 mm (0.65 in)
19 mm (0.75 in)
2.54 mm (0.10 in)
25.4 mm (1.0 in)
12.7 mm (0.5 in)
0.15 mm (0.0059 in)
2.54 mm (0.10 in)
3.18 mm (0.125 in)
6.4 mm (0.25 in)
C
Maximum
111.8 mm (4.4 in)
114.3 mm (4.5 in)
25.4 mm (1.0 in)
609.6 mm (24 in)
609.6 mm (24 in)
0.30 mm (0.012 in)
12.7 mm (0.5 in)
N/A
N/A
213 mm (8.38 in)
