EasyCoder 4420/4440 Bar Code Label Printer User's Manual

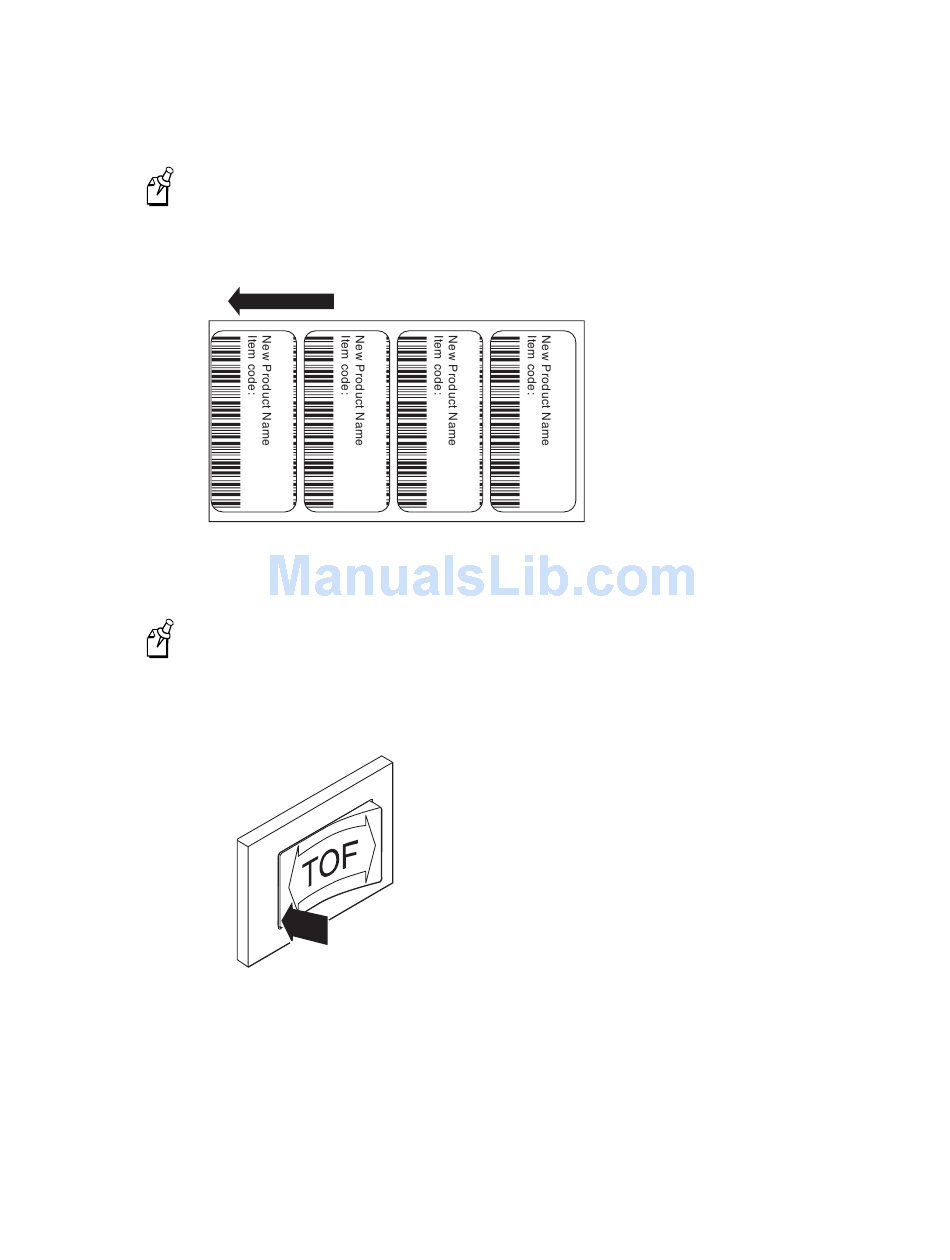

To move a label format backward with the TOF switch
Note: You will see the new format position on the second label you print after pressing
the TOF switch.
You notice that the format is printing toward the front part of the label.
1. Remove the media cover.
2. Press on the back part of the TOF switch. Each time you press the TOF switch, you
5-8
Label direction from printer
Note: Do not raise the printhead while adjusting the TOF position.
move the label format backward 0.127 mm (0.005 inch).
44XXU059.eps
d 39
44XXU047.eps
