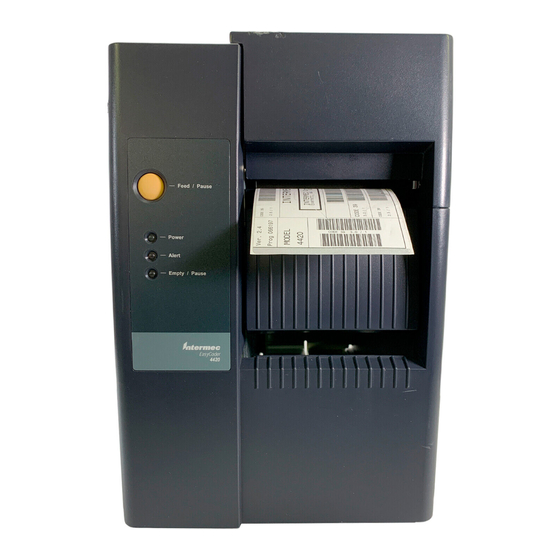

Intermec 4420 User Manual

Intermec 4420 User Manual

Self-strip/batch takeup
Hide thumbs Also See for 4420:

Advertisement

Quick Links

Download this manual See also: User Manual, Operation & Installation Manual
User's Manual
P/N 066393-002
4420 and 4440 Printer
Self-Strip/Batch Takeup

Advertisement

loading

Related Manuals for Intermec 4420

Summary of Contents for Intermec 4420

  • Page 1 User’s Manual P/N 066393-002 4420 and 4440 Printer Self-Strip/Batch Takeup...
  • Page 2 The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec.
  • Page 3 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual Introduction to the Self-Strip/Batch Takeup Option The self-strip/batch takeup option enables the 4420 or 4440 printer to operate in Self-Strip or Batch mode. When you use the printer in Self-Strip mode, the printer strips each label off of the backing as it leaves the printer.
  • Page 4 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual 4. Open the media access door. Head lift lever Media access 44XXI.009 door 5. Route the media below the self-strip roller. Takeup hub Self-strip roller 44XXI.001...
  • Page 5 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual 6. Place the end of the media in the media slot. Media lock Media slot 44XXI.002 7. Turn the media lock clockwise to lock the media in place. 8. Turn the takeup hub counterclockwise until the media fits snugly against the takeup hub.
  • Page 6 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual Loading Media for Batch Takeup Use batch takeup to collect printed media onto the takeup hub. The media can spool directly onto the takeup hub or onto a core. Note: After the printer prints the last label and passes the end of the media roll through the printhead, the takeup hub will turn for a few revolutions before stopping.
  • Page 7 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual 5. Route the media around the batch guide. Takeup 44XXI.005 6. To have the media rolled onto the takeup hub, place the end of the media in the media slot and turn the media lock clockwise to lock the media into place.
  • Page 8 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual To have the media rolled onto an empty core, place the core onto the takeup hub, turn the media lock clockwise to lock the core into place, and tape the end of the media to the core.
  • Page 9 1. Connect the printer to your PC and start PrintSet. Note: Under the Printer Select menu, check that PrintSet is set up for your printer (4420 or 4440). To customize the configuration for your printer, see the Help menu. 2. Click the Paper Handling button.
  • Page 10 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual 4. If you work in a hot or humid environment (temperature at or above 104 F [40 C] and humidity at or above 90 percent), select the Hot/Humid Environment box. 5. Choose OK.
  • Page 11 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual 10. Click the Send Command button. A message box appears asking if you want to overwrite the current printer settings. Choose Send to enable self-strip or batch with the configuration you have created.
  • Page 12 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual 5. Swing the media access door open. 6. Turn the head lift lever clockwise so you can remove the media from the printhead. 7. Roll the media back onto the media roll and remove the media roll.
  • Page 13 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual 9. Blow dust out of the takeup hub sensor with compressed air. Takeup sensor 44XXI.010 10. Blow dust out of the flange holes with compressed air. Flange holes 44XXI.011 11. Reload the media, route the media below the self-strip roller, insert it into...

  • Page 14: Troubleshooting

    This section describes some possible problems and solutions. If the solutions do not solve the problems, try the troubleshooting solutions in your printer user’s manual or call your Intermec service technician. In the USA, call 1-800-755- 5505. In Canada, call 1-800-668-7043.
  • Page 15 4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual Troubleshooting (continued) Symptom Possible Cause Solution While using batch takeup, the The printer is set for Self-Strip In PrintSet, open the Paper Handling dialog printer prints one label and mode. box and select Batch.

  • Page 16: Specifications

    4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual Specifications This section describes the specifications for a 4420 or 4440 printer with the self-strip/batch takeup option. Parameter Minimum Maximum Label Peel Release 0.35 ounce (10 g) 1.75 ounces (50 g) Media Stiffness 0.0035 ounce (100 mg)
