Note: Make sure the ribbon runs above the upper media guide. The shiny side of
the ribbon must come in contact with the printhead.
7. Wind the ribbon rewind hub clockwise until the ribbon runs smoothly through the
printhead mechanism and the leader moves past the printhead.

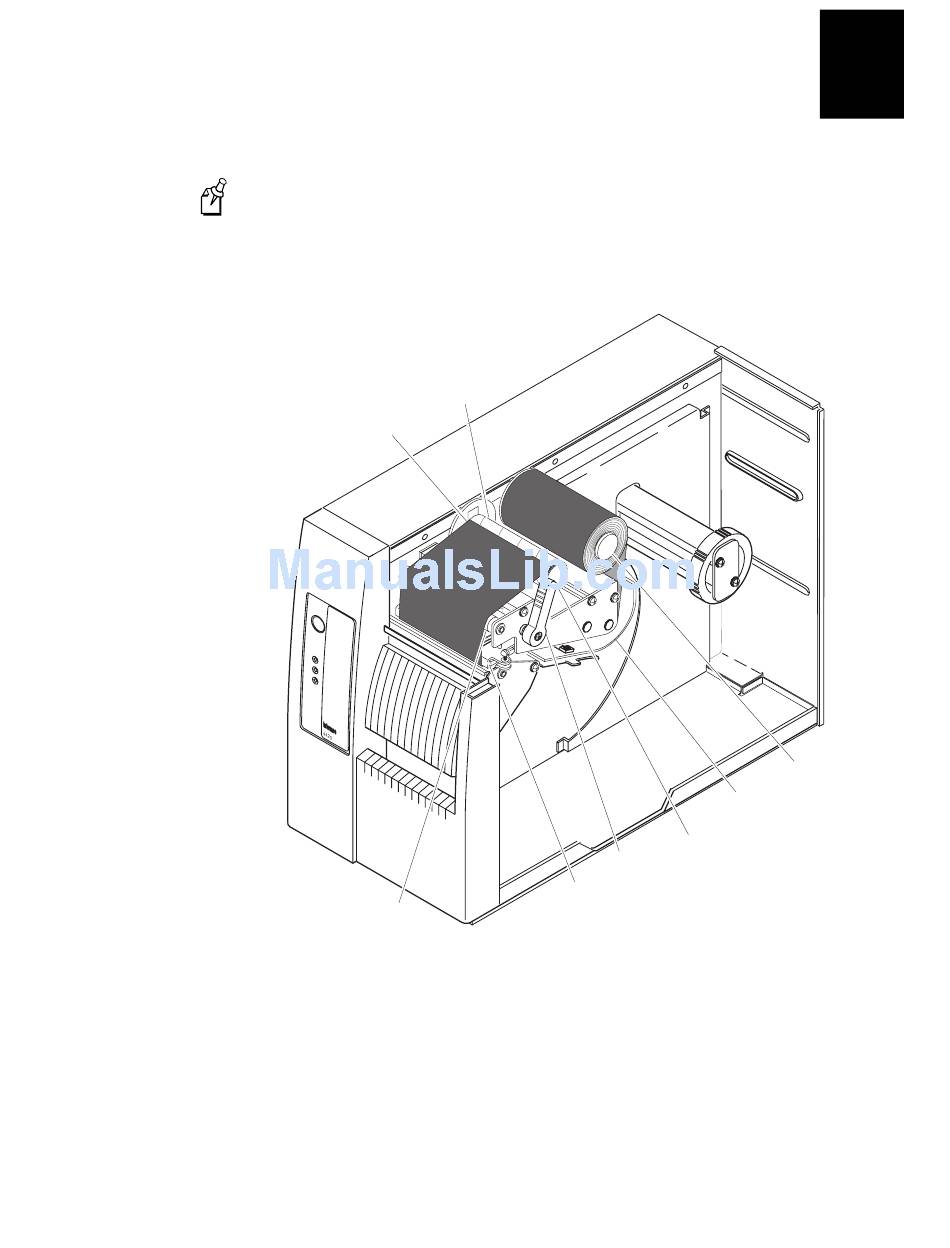

Empty ribbon
Thermal transfer
ribbon
F e e
d /P
a u s
e
P o
w e
r/ D
a ta
A le
rt
E m
p ty
/P a
u s e
TTR assist
roller
8. Engage the printhead by rotating the head lift lever counterclockwise until it locks.
9. Enable thermal transfer printing by setting DIP switch 8 on the bottom bank of
switches to the on position. Refer to "Configuring the Serial Port for
Communications" in Chapter 2 for DIP switch settings.
10. Press the Feed/Pause button to advance the ribbon through the printer. The printer
is now ready to print the hardware configuration test label.
roll
Head
lift lever
Printhead
1
Getting Started
Ribbon supply
hub
Upper media
guide
Ribbon rewind
hub
44XXU028.eps
1-15
